Location:Index--->Product Center >> Danfoss Control >> 067G3240 Danfoss Element for expansion valve, TE 55, R407C


|
|
||||||||||||||||||||||||||||||
Product Description

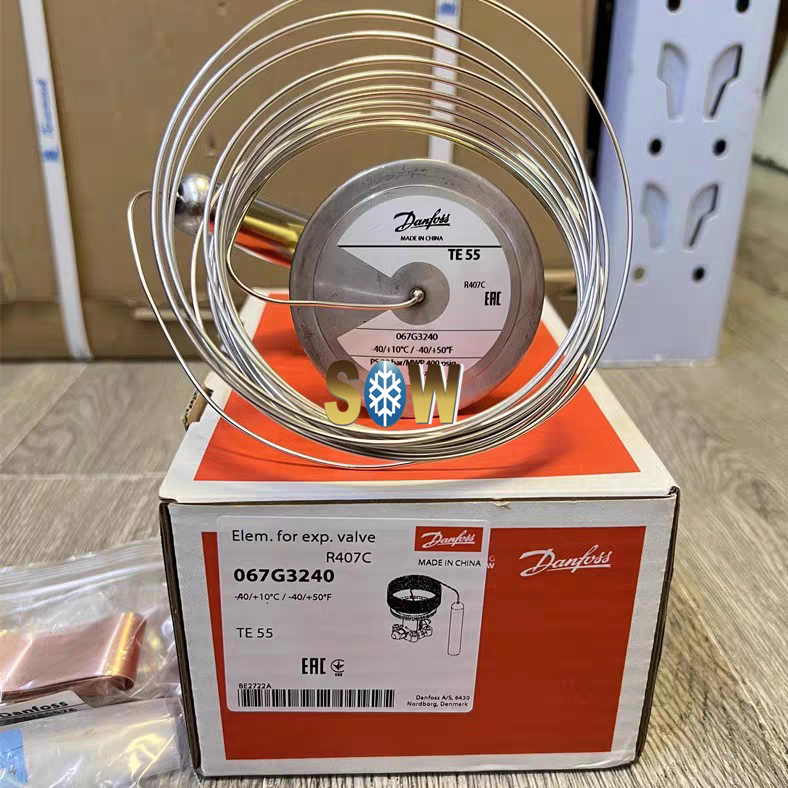

Danfoss Element for expansion valve, TE 55, R407C 067G3240
Temperature range [°C]: -40 - 10, Pressure equalization: Externally equalized
TEZ55 Danfoss TE55*067G3240 Expansion Valve R407C Refrigerant Sensing Kit
Product details
| Gross weight | 0.782 Kilogram |
| Net weight | 0.7 Kilogram |
| Volume | 2.25 Liter |
| EAN | 5702428322317 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 197 in |
| Capillary tube length [mm] | 5000 mm |
| China RoHS compliance | Yes |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Out of scope |
| In scope of WEEE and contain batteries | No |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| Packing format | Multi pack |
| Parts included | Bulb strap Gasket Key O-ring |
| Parts Program name | TE 55 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product group | Expansion valves |
| Product Name Description | Element for expansion valve |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R407C |
| SCIP dossier no. | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
| SCIP dossier product name | TE |
| Serviceable | TXV spare parts |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | TE 55 |
| Type designation | Element |
| UK RoHS compliance | Out of scope |
