Name:	023U7253 DANFOSS REFRIGERATION Filter drier, shell
Brand:	Danfoss
G.W:	5.204 Kilogram
Country of origional:	Mexico
Approval:	CE CSA UKCA UL
Body material:	Steel
Braket:	No
China RoHS compliance:	Yes exceed limitations
Connection Solder size [in]:	1 1/8 in
Connection type:	Solder, ODF
Core Size code:	48 cu.in.
Cover:	Plug
Flow direction indicator:	Label printed 1-way arrow
Fluid Group:	2

Danfoss Filter drier 023U7253

023U7253 DANFOSS REFRIGERATION Filter drier, shell

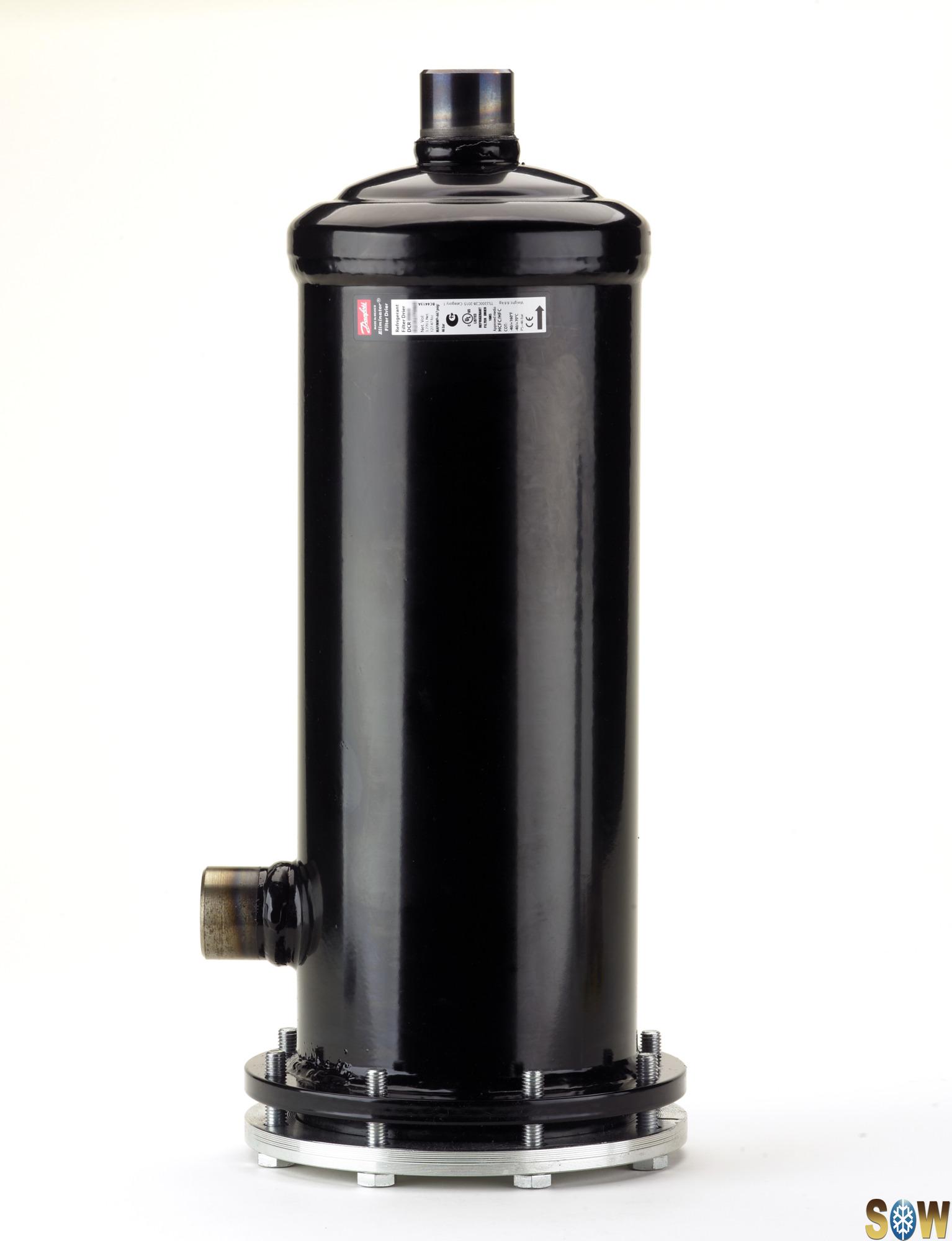

Filter drier, shell, DCR 023U7253

Core Size code: 48 cu.in., Connection material: Copper, Connection Solder size [in]: 1 1/8 in

Product details

Gross weight	5.204 Kilogram
Net weight	4.3 Kilogram

Volume	11.408 Liter
EAN	5702428249621

Approval	CE CSA UKCA UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
China RoHS compliance	Yes exceed limitations
Connection material	Copper
Connection Solder size [in]	1 1/8 in
Connection type	Solder, ODF
Core Size code	48 cu.in.
Cover	Plug
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a)
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
In scope of WEEE and contain batteries	No
Liq Cap [Kw]	R1234ze: 150.9 R134a: 170.0 R404A: 119.6 R407C: 174.2 R410A: 176.9 R452A: 121.1 R507: 116.0
Liq Cap [TR]	R1234ze: 42.9 R134a: 48.3 R404A: 34.0 R407C: 49.5 R410A: 50.3 R452A: 34.4 R507: 33.0
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Net volume [foz US]	50.44 Fluid Ounce US
Net volume [l]	1.492 L
Number of cores	1

Oil free refrigerants	R134a R513A R515A
Packing format	Single pack
Parts included	1 cov 2 felt gaskets 8 Bolts
Parts Program name	DCR
PED category	I
Product accessories	DCR accessories
Product description	Refrigerant Filter Drier
Product group	Filter driers
Product Name Description	Filter drier, shell
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R1234ze(E) R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A
Serviceable	DCR spare parts
Shell volume [foz US]	65.76 Fluid Ounce US
Shell volume [l]	1.94 L
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type	DCR
Type designation	DCR 0489s
UK RoHS compliance	Out of scope
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A
