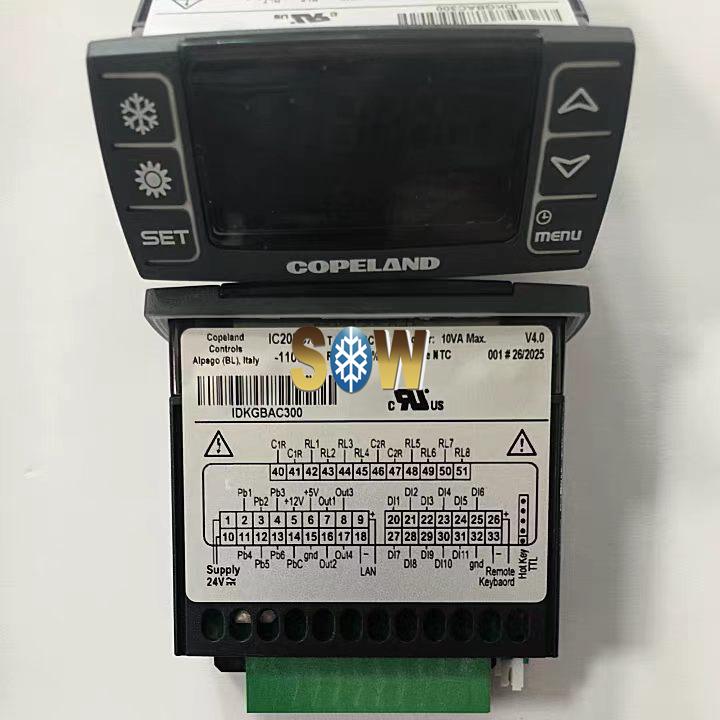

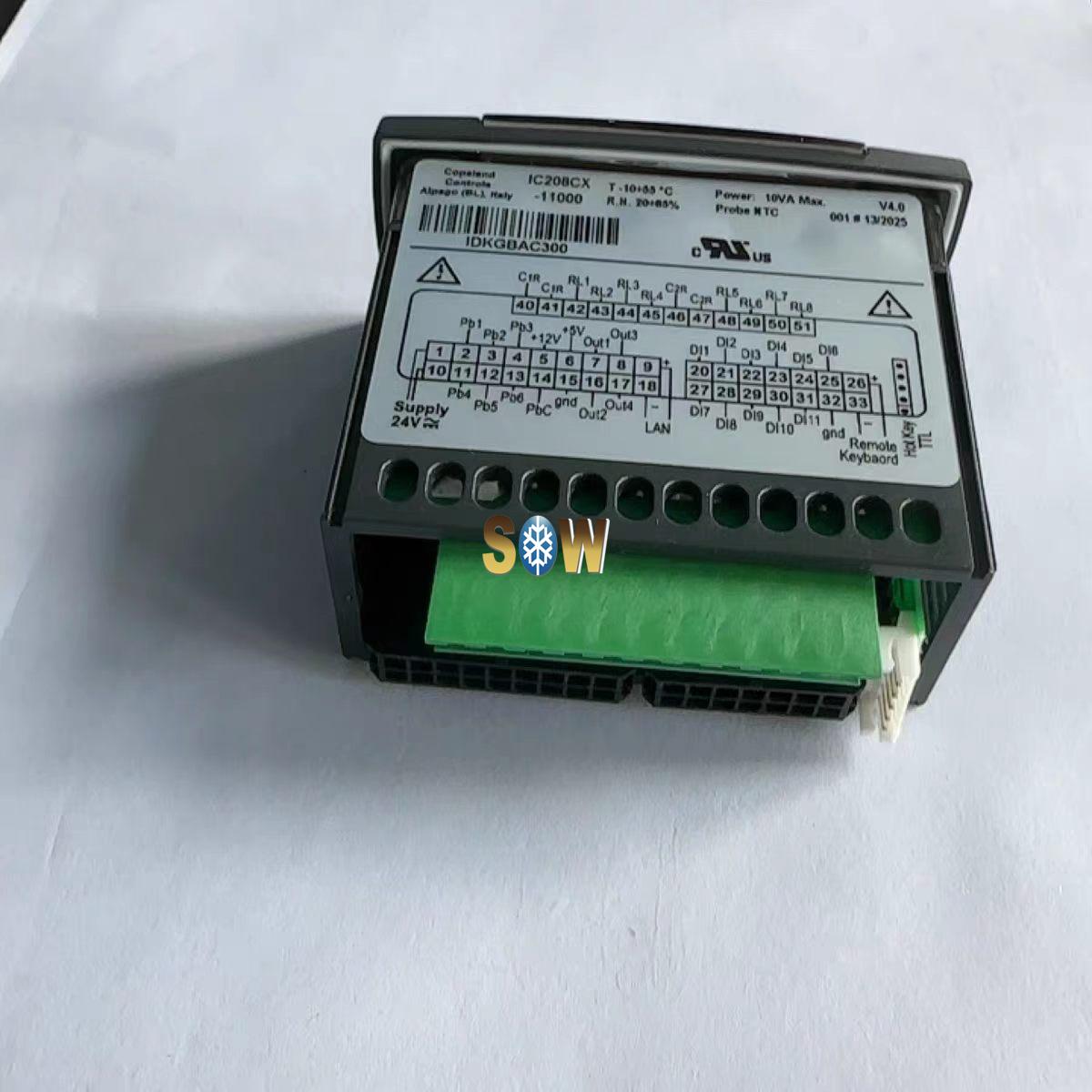

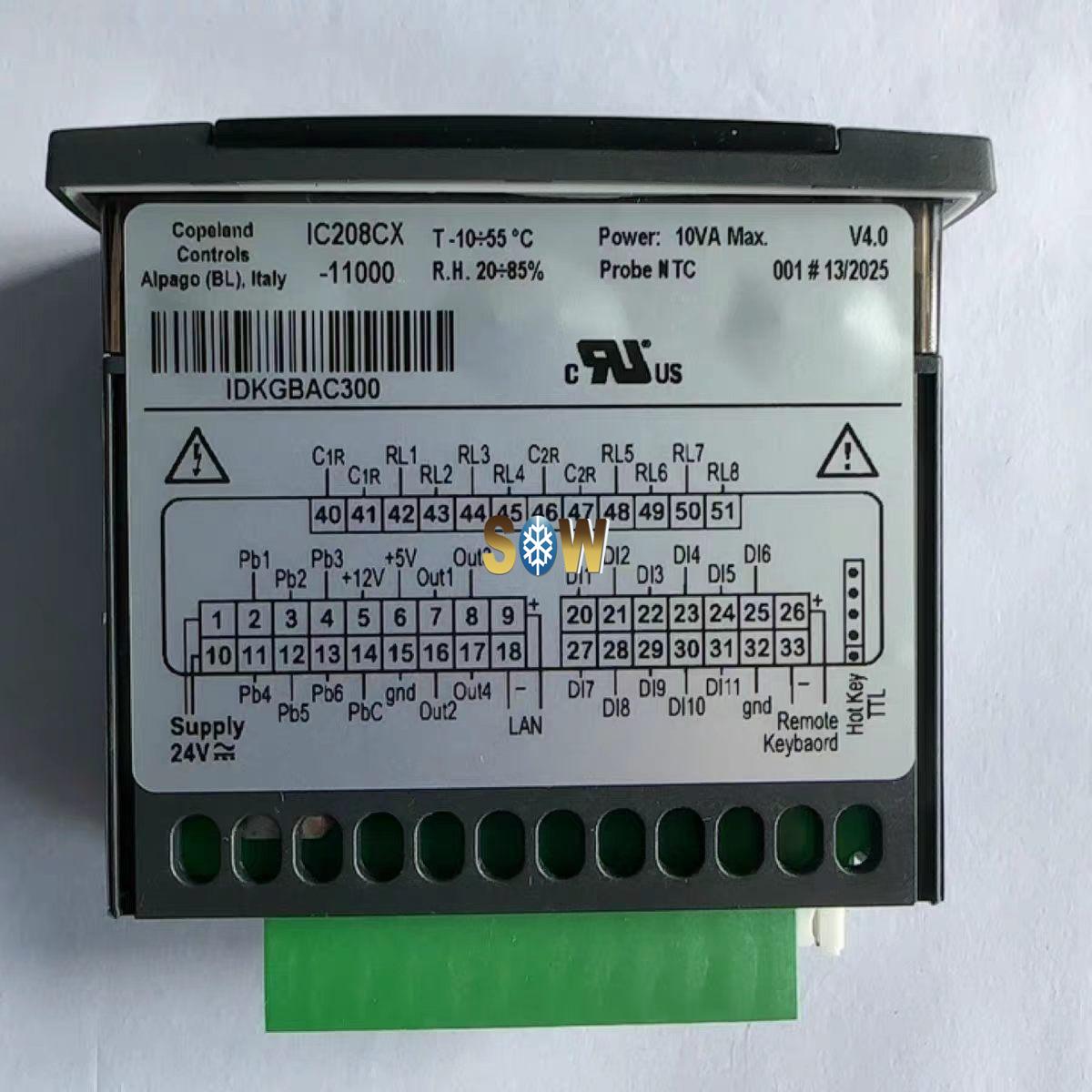

NEW Copeland/Dixell Temperature Controller IC208CX-11000

CONTROLLERS FOR CHILLERS AND HEAT PUMPS (UP TO 4 COMPRESSORS) WITH 8 RELAY OUTPUTS

Features

Management of scroll, screw and inverter compressors

Identification of the compressors to activate based on the n° of hours/start-ups

Data logger up to 100 alarms (alarm type, date, hours, machine status)

Pump-down function (stop and start)

Capacity function of machine power during critical functioning conditions

Forced defrost during critical conditions

Combined defrost temperature/pressure

Sanitary hot water production

Solar panel management

Dynamic set point

Heat recovery management

Free-cooling management

Specifications

Analog Input:2 X PWM/0·10V, 2 x 0·10V

Buzzer:Present

Digital Inputs:Free voltage: 11 x configurable

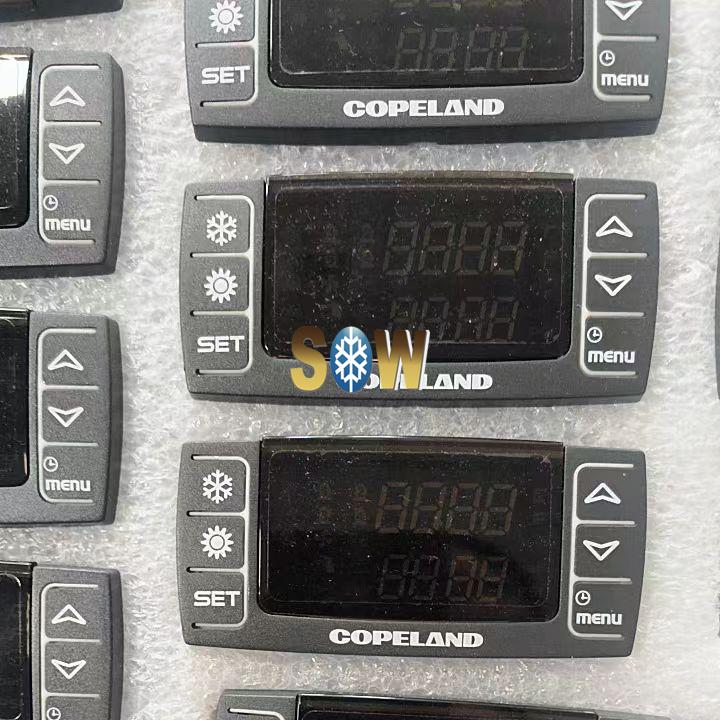

Display:4 digits, red LED 8.5mm high4 digits, yellow LED 7.5mm high

LAN Output:Present

Power Supply:12, 24Vac/dc

Probe Inputs:NTC, PTC: 4 x configurable - NTC, PTC, 4÷20mA, 0÷5V: 2 x configurable

Prog Tool Kit Output:Present

Real Time Clock:Optional

Relay Outputs:5A: 8 x configurable

Remote Display Output:2 X VICX620, 1 x V2I820, 1 x VTIC20

TTL Output:Present
