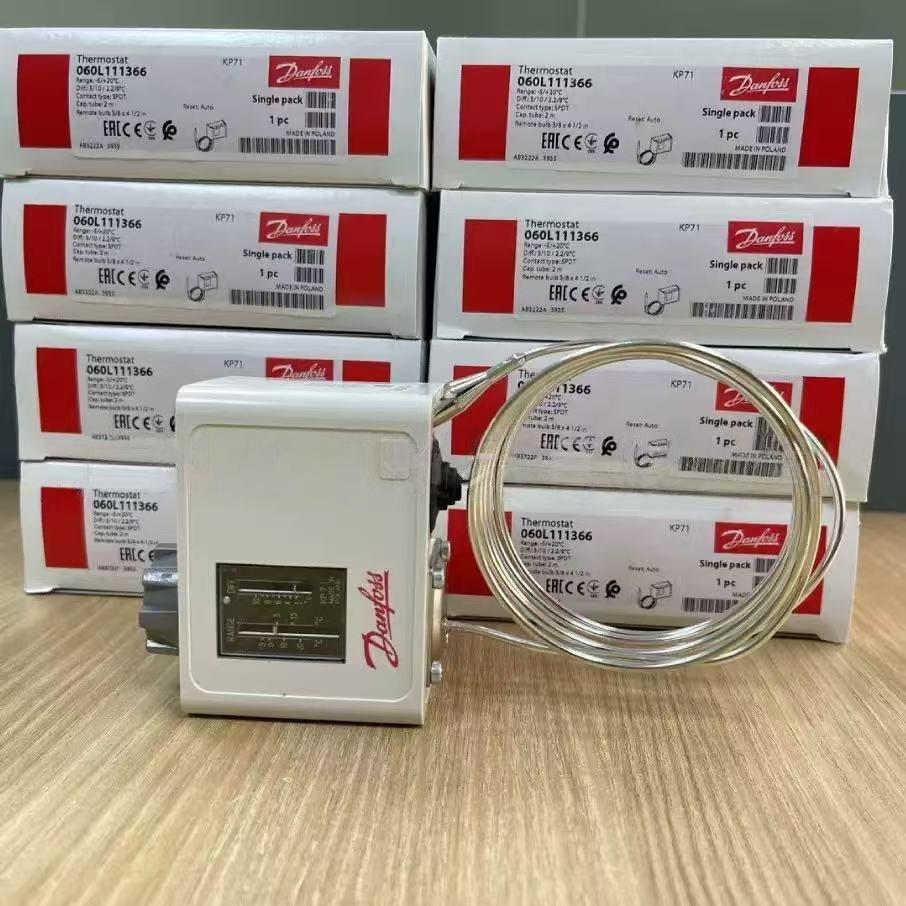

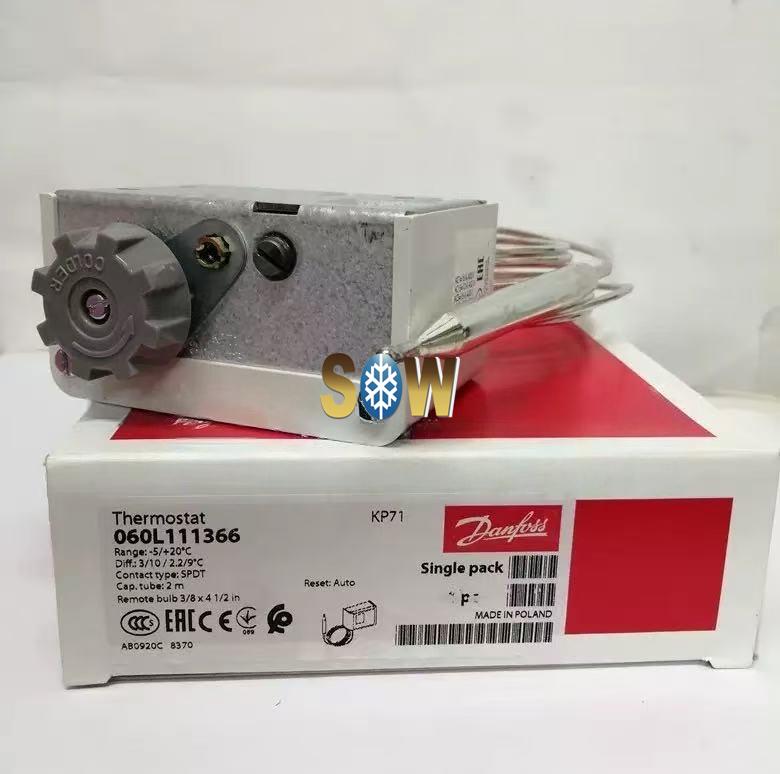

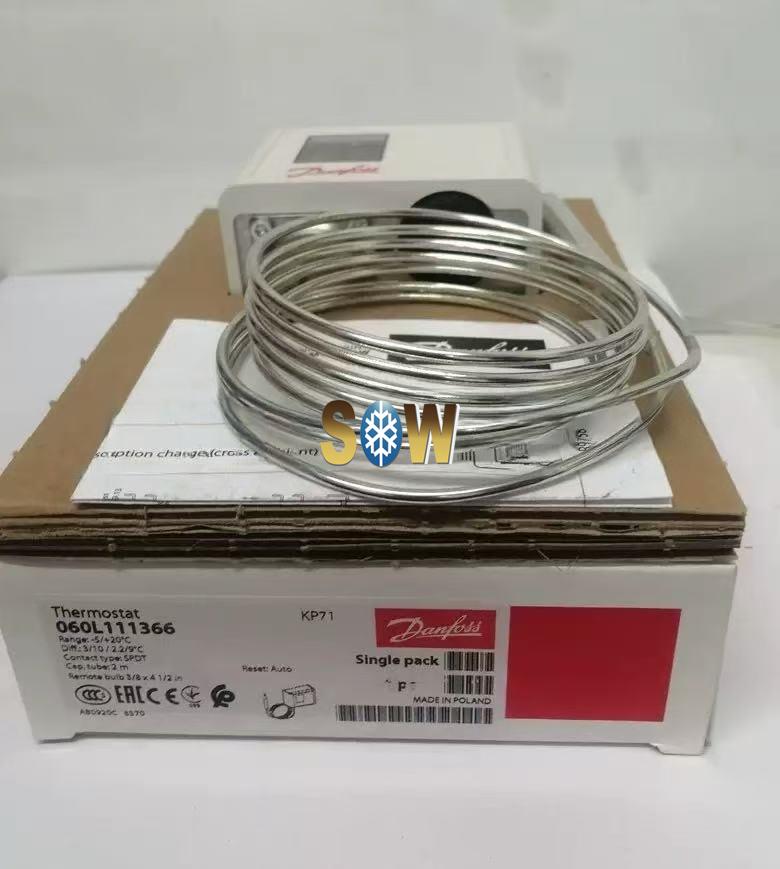

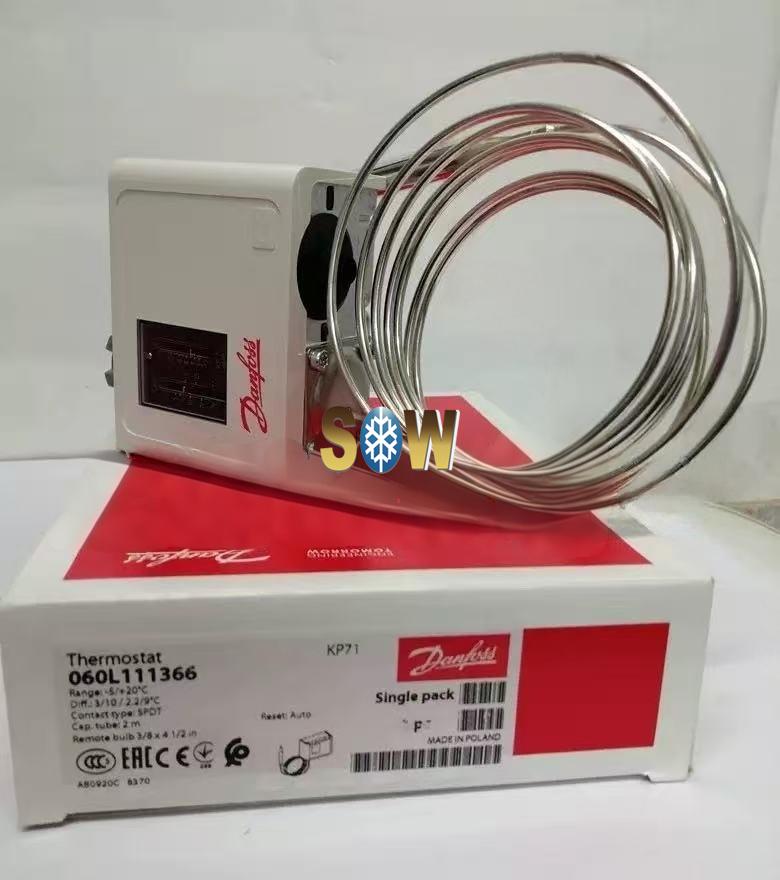

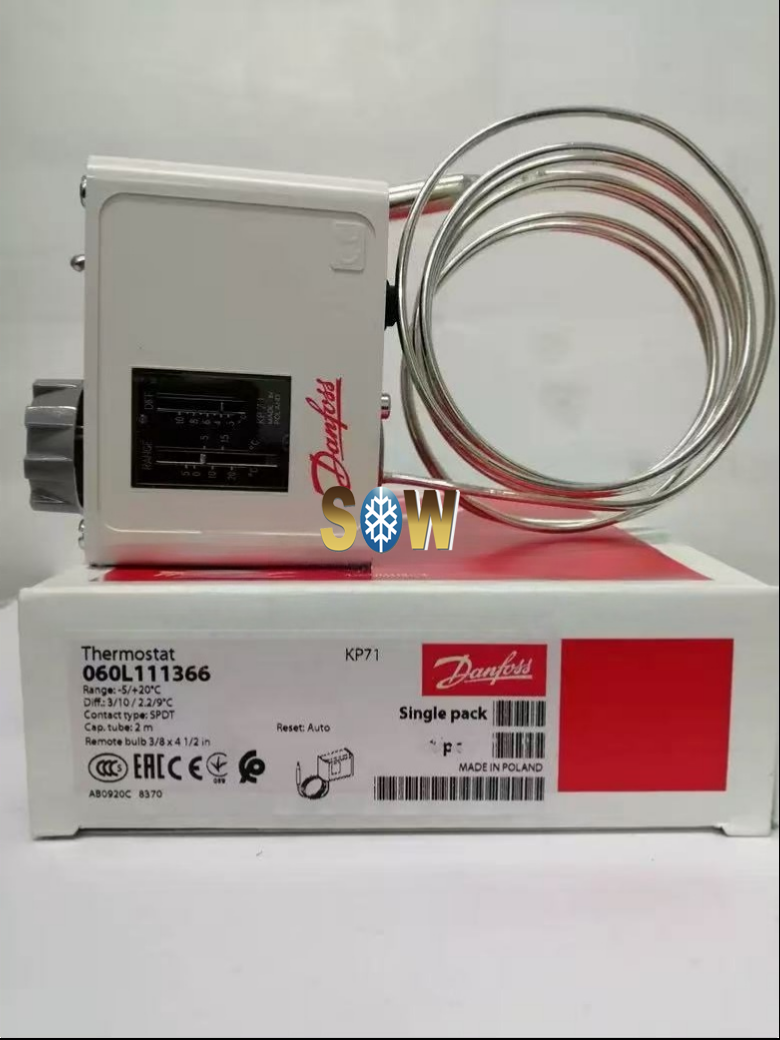

Danfoss Thermostat, KP71 060L111366

Product details

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	150 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK Read more
Cap. tube length fraction [in]	78 3/4 in
Capillary tube length [mm]	2000 mm
CE mark	Yes
Charge type	Adsorption
China RoHS compliance	Yes
Contact function	SPDT
Contact rating	AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V
Contains batteries	No
Diff. @ Max. range setting [K] [max]	9 K
Diff. @ Max. range setting [K] [min]	2.2 K
Diff. @ Max. range setting[°C] [max]	9 °C
Diff. @ Max. range setting[°C] [min]	2.2 °C
Diff. @ Min. range setting [K] [max]	10 K
Diff. @ Min. range setting [K] [min]	3 K
Diff. @ Min. range setting[°C] [max]	10 °C
Diff. @ Min. range setting[°C] [min]	3 °C
Differential type	Adjustable
Electrical connection	Rubber cable gland
Electrical connection size	6-14 mm
Electrical spec. standard	EN 60947-5
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A

EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Identical product	060L119466
Max. sensor temperature [°C]	80 °C
Max. sensor temperature [°F]	176 °F
Other RoHS documentation	Saudi Arabia RoHS
Packing format	Multi pack
Product accessories	Switches accessories
Product description	Thermostat
Quantity per packing format	32 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0)
Reset function	Auto
SCIP dossier no.	c1a694ec-501f-43db-83d2-8a9a314459e0
SCIP dossier product name	KP KPS KPU Thermostat
Sensor size (Ø x L) [in]	3/8 x 4 1/2 in
Sensor size (Ø x L) [mm]	9.5 x 115 mm
Sensor type	Remote bulb
Serviceable	No
Temperature range [°C] [max]	20 °C
Temperature range [°C] [min]	-5 °C
Temperature range [°F] [max]	68 °F
Temperature range [°F] [min]	23 °F
UL approval file name	E31024
UL mark	Yes
