Danfoss Solenoid coil 018F4123-Product Center-Star-Worths Refrigeration Co.,Ltd.-

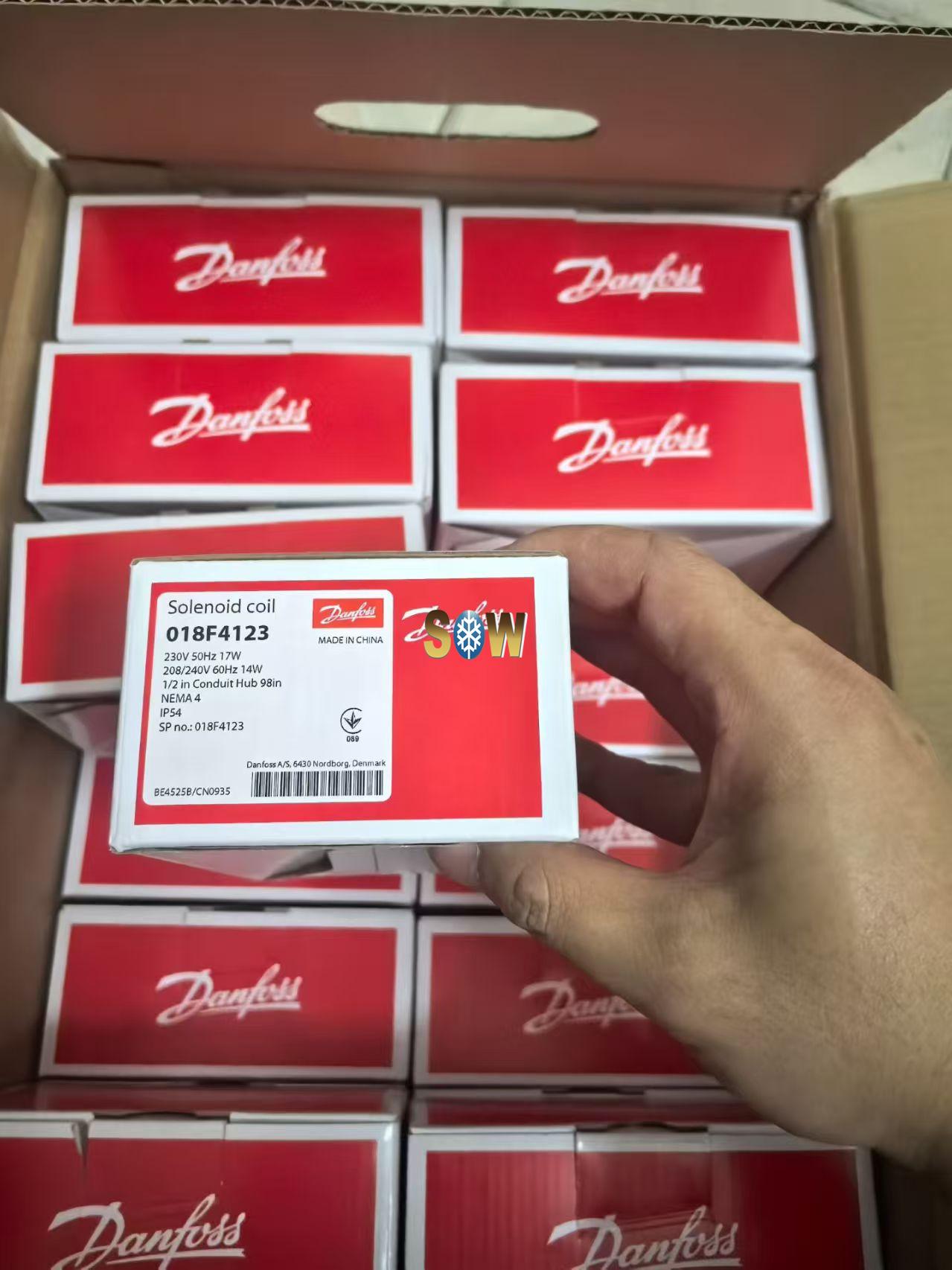

Danfoss Solenoid coil 018F4123

Product details

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	120 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	C UL US LISTED LLC CDC TYSK
Cable length [in]	98 in
Cable length [m]	2.5 m
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil connection	1/2 in Conduit Hub
Coil design standard	UL 429
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Black
Compliance	UL 429
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. comments	Flying leads
Electrical connection	Conduit hub
Electrical connection size	1/2 in
Electrical connection standard	UL50E CLASS 4
Enclosure rating IP	IP54
Enclosure rating Nema (~)	4
EU RoHS compliance	Yes

EU RoHS exemption clause	No
Frame design	Ext. metal frame
Frequency [Hz]	50/60 Hz
In scope of WEEE	Yes
Packing format	Multi pack
Parts Program name	EV210B EV215B EV220B 15 - 50 EV220B 6 - 22 EV225B EV245B EV250B
Pollution degree	3
Power consumption [W] 50Hz	17 W
Power consumption [W] 60Hz	14 W
Product accessories	Solenoid coil accessories
Quantity per packing format	24 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Rel. Humidity conditions	Non-condensation
Serviceable	No
Spare part number	018F4123
Supply voltage 50Hz Max [V]	230 V
Supply voltage 60Hz Max [V]	240 V
Supply voltage 60Hz Min [V]	208 V
Supply voltage [V] AC	230 V
Type designation	BX240CS
UL approval file name	MH29671
UL mark	Yes
