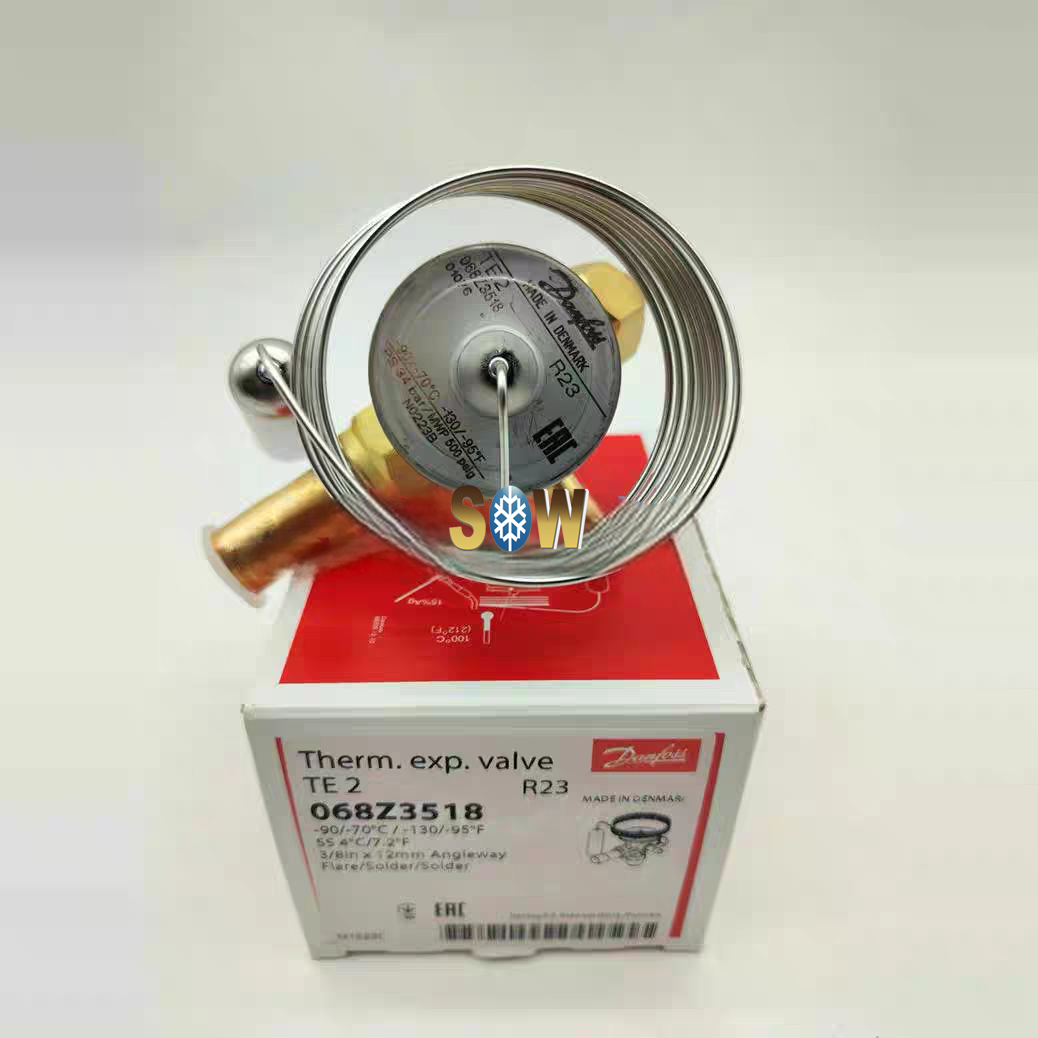

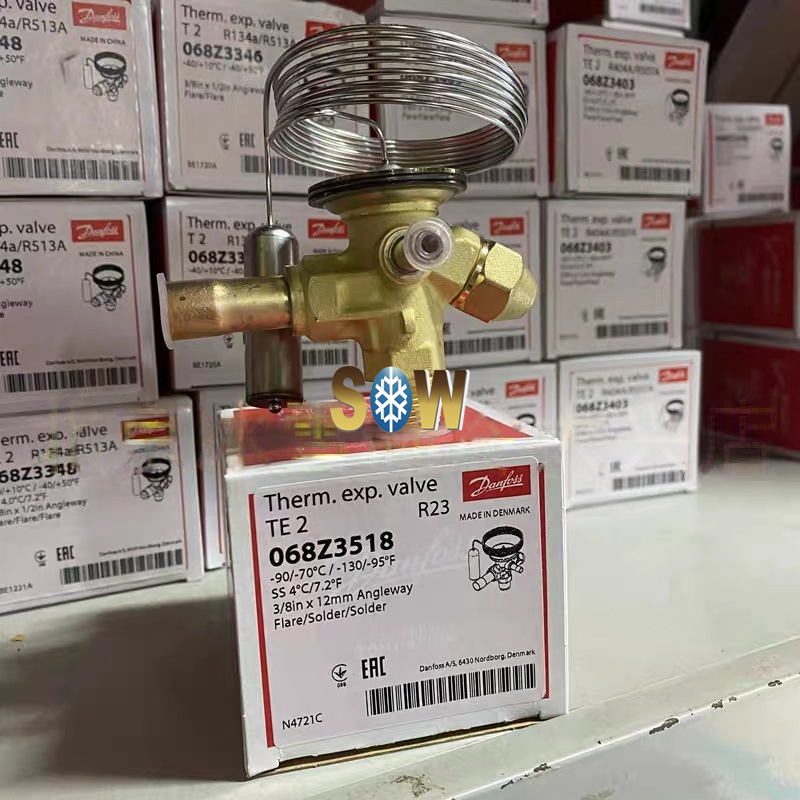

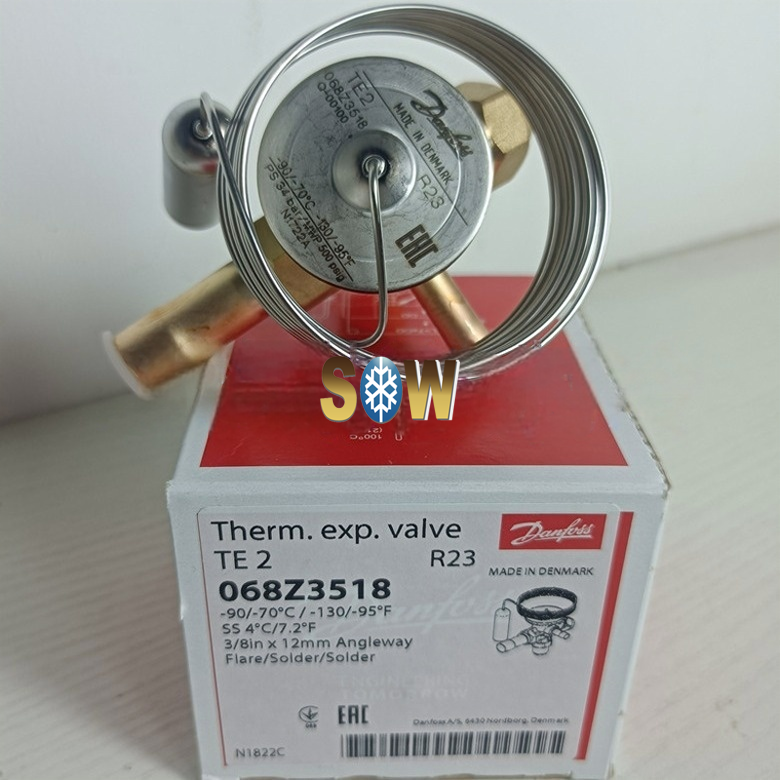

Name:	Danfoss Thermostatic expansion valve, TE 2, R23 068Z3518
Brand:	Danfoss
Model No.:	TE 2
Part No.:	068Z3518
Country of origion:	Denmark
G.W:	0.3kgs/pc
Refrigerant:	R23
Temperature range [°C]:	-90 - -70
Pressure equalization:	Externally equalized

Danfoss Thermostatic expansion valve, TE 2, R23 068Z3518

Product details

Type	TE 2
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve

Approval	EAC LLC CDC TYSK
Body material	Brass
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
China RoHS compliance	Yes with exemptions
Connection material	Brass Copper
Contain batteries	No
Direction	Angleway
Equalization connection type	Solder
Equalization size [mm]	6 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Flow direction	Bi-flow with orifice 01-05
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Inlet connection type	Flare
Inlet size [in]	3/8 in
Max. Working Pressure [bar]	34 bar
Max. Working Pressure [psig]	500 psig
Outlet connection type	Solder
Outlet size [mm]	12 mm

Packing format	Multi pack
Parts included	Bulb strap
Parts Program name	T2/TE2
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R23
SCIP dossier no.	c164ed45-f10d-4d73-9eae-355ccb479f4b
SCIP dossier product name	T2 /TE2 - Thermostatic Expansion Valve
Serviceable	TXV spare parts
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	-70 °C
Temperature range [°C] [min]	-90 °C
Temperature range [°F] [max]	-95 °F
Temperature range [°F] [min]	-130 °F
UA address	UA_2L.png
