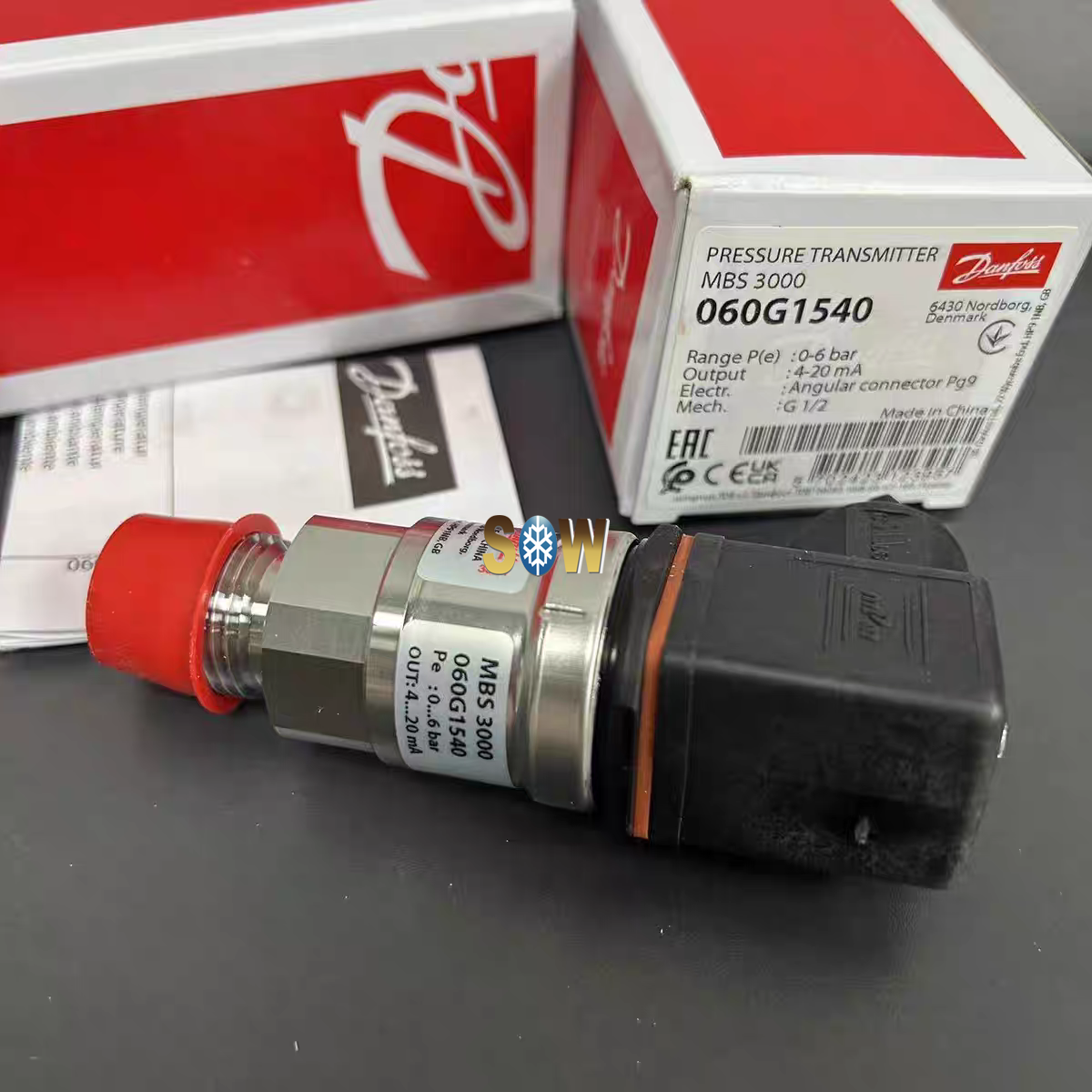

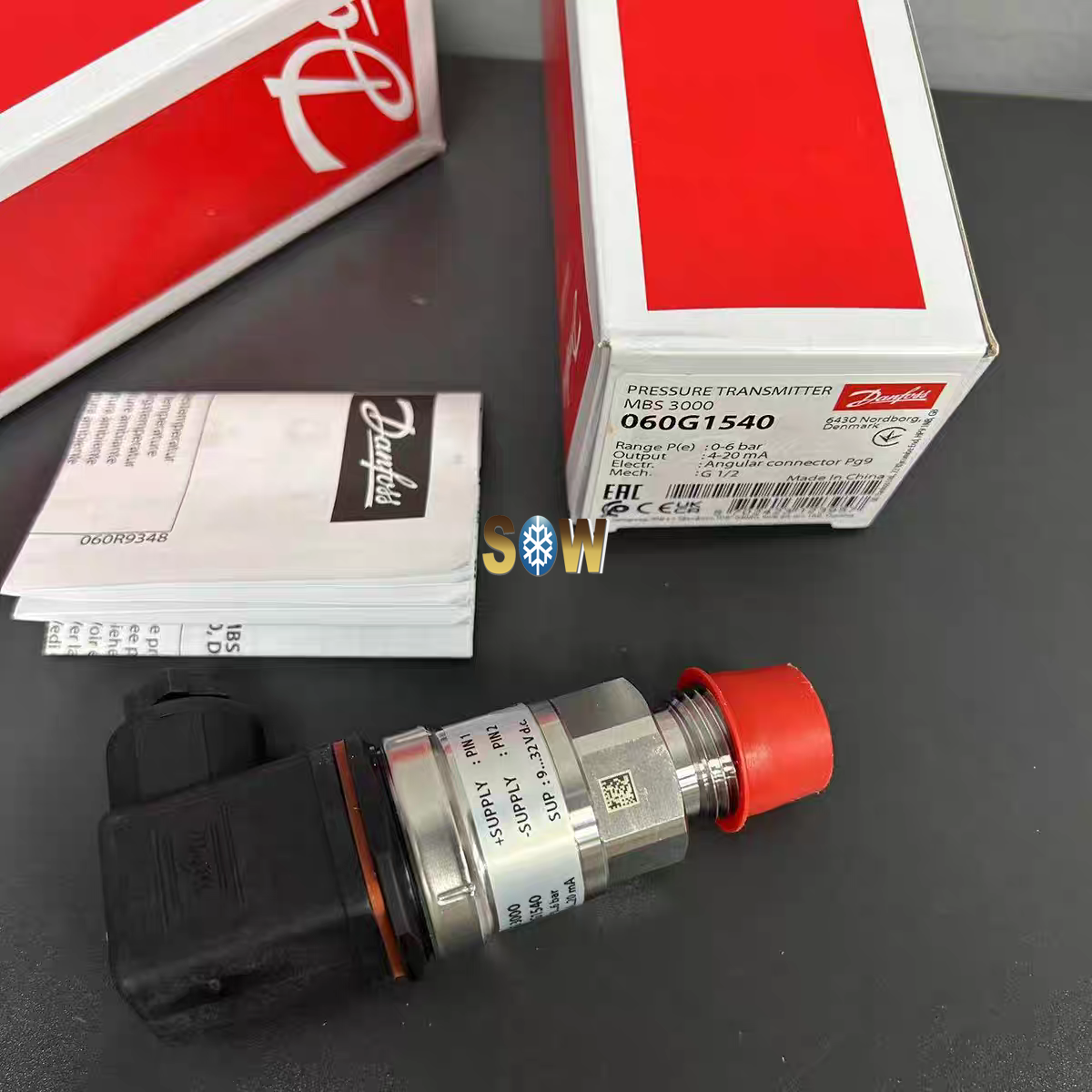

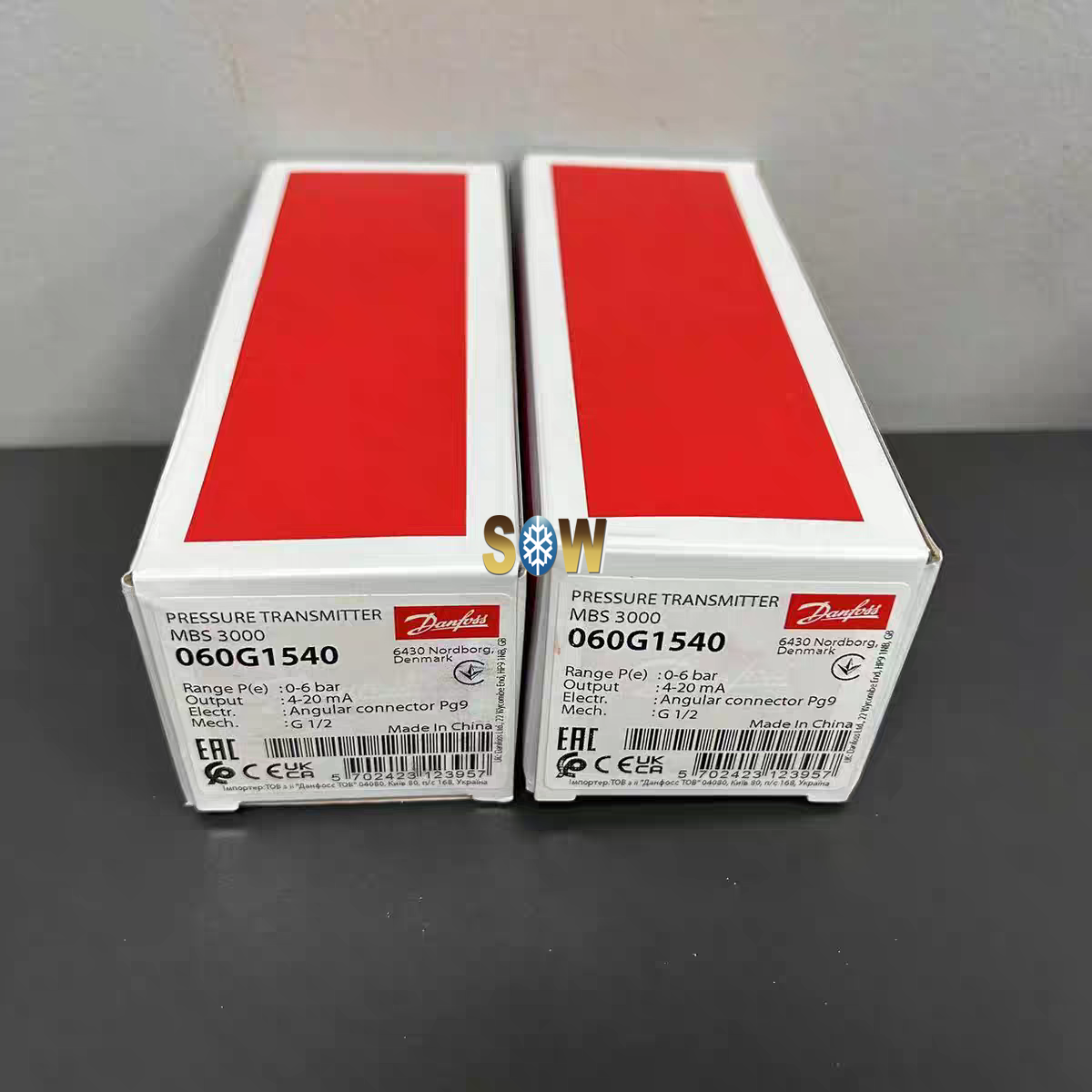

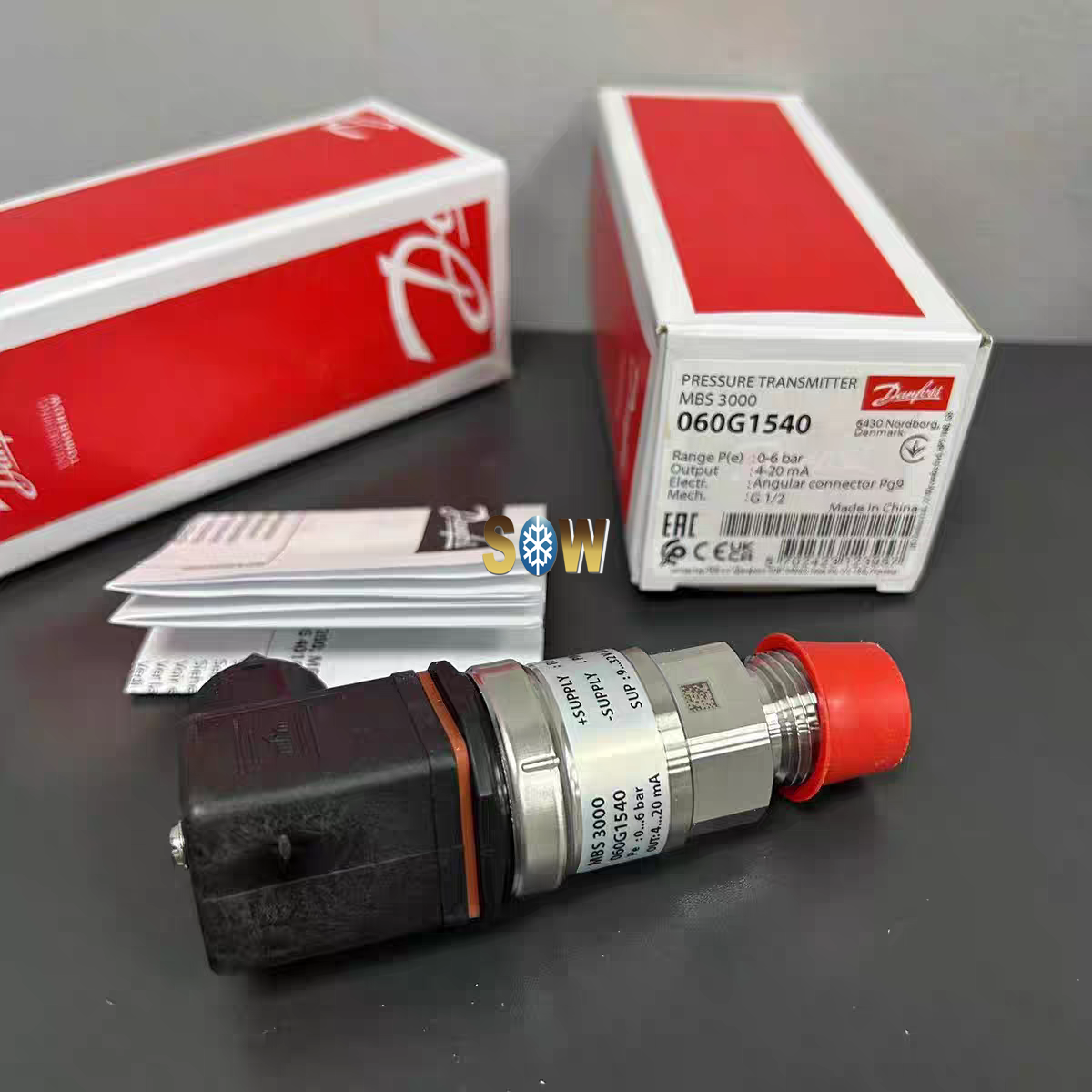

Name:	Danfoss Pressure transmitter, MBS 3000, 060G1540
Brand:	Danfoss
Model No.:	MBS 3000
Part No.:	060G1540
Country of origion:	China
G.W:	0.208kgs/pc
Pressure range [bar]:	0 bar - 6 bar
Pressure range:	0 psi - 87 psi
Pressure reference:	Gauge (relative)
Output signal:	Current
Electrical connection:	Angular connector
Pressure connection type:	G
Pressure connection size:	1/2
Specification key:	MBS 3000-1811-A1AB08-0

Danfoss Pressure transmitter, MBS 3000, 060G1540

Product details

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	1 %
Accuracy, typical [±FS%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX CE C UL US UL Recognized
Approval comments	ATEX Ex ec IIA T4 Gc
CE evaluated	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	176 °F
Compensated temp. range [°F] [min]	32 °F
Contain batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	22.4
Identical product	060G4150
In scope of WEEE	Yes
International Article Number	5702423123957
Intrinsically safe	No

Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.5 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	36 bar
Overload pressure max. [psi]	522 psi
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/2
Pressure connection standard	EN 837
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	6 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	87 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Gauge (relative)
Pulse-snubber	No
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 3000-1811-A1AB08-0
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
UL evaluated	Yes
