Location:Index--->Product Center >> Danfoss Pressure Switches >> Danfoss Pressure transmitter, MBS 5150, 060N1072

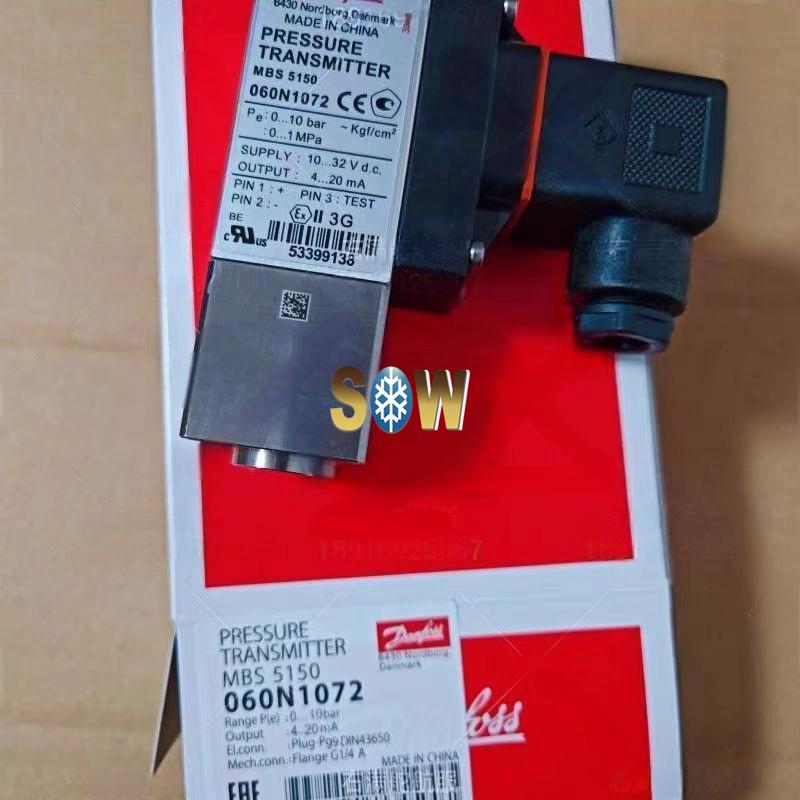

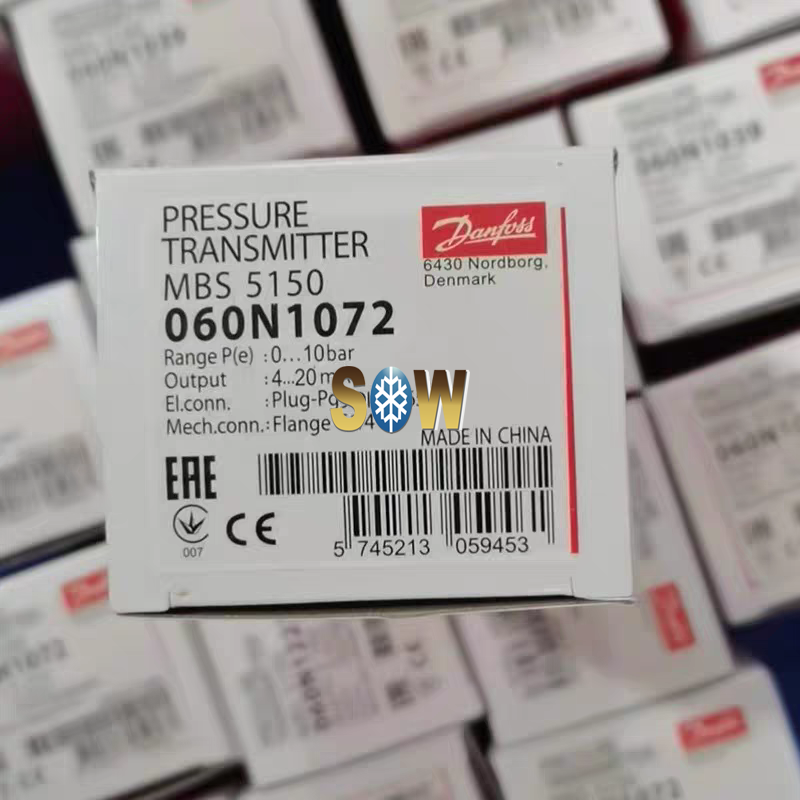

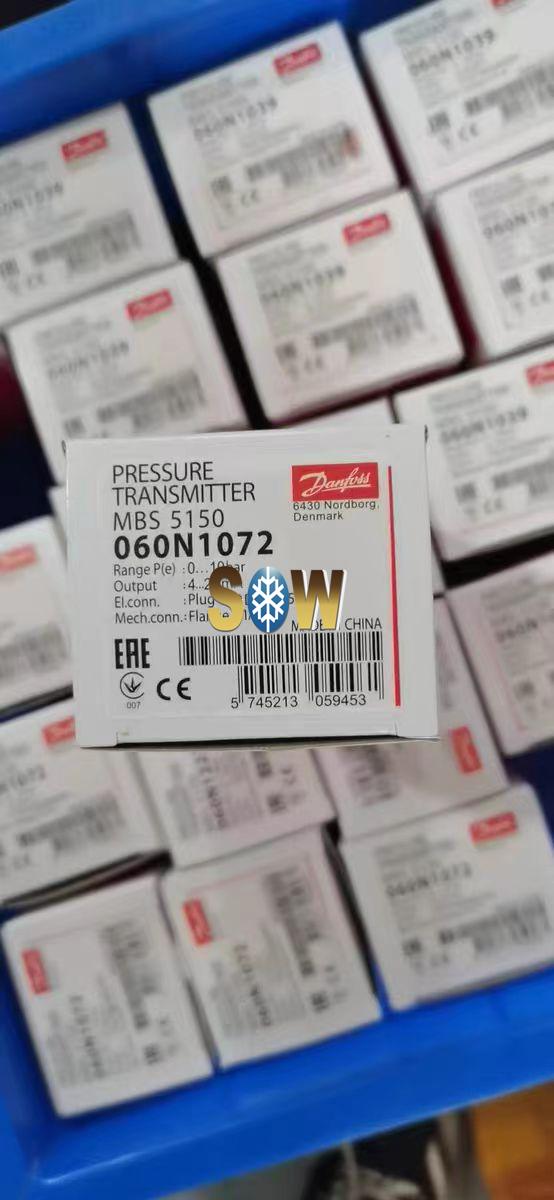

Name:Danfoss Pressure transmitter, MBS 5150, 060N1072
Brand:Danfoss
Model No.:MBS 5150
Part No.:060N1072
Country of origion:China
G.W:0.423kgs/pc
Pressure range [bar]:0.00 bar - 10.00 bar
Pressure range [psi]:0.00 psi - 145.00 psi
Pressure reference:Gauge (relative)
Output signal:Current
connection size:1/4
Electrical connection:Angular connector
Pressure connection type:G
Pressure Specification key:MBS 5150-2011-H3DB04-4

Product Description

Danfoss Pressure transmitter, MBS 5150, 060N1072

General specifications

Characteristic
Value
Gross weight
0.423 Kilogram
Net weight
0.354 Kilogram
Characteristic
Value
EAN/UPC
5702423063130
Proposition 65
Cancer and Reproductive Harm

Product specifications

Characteristic
Value
+ supply
Pin 1
- common
Pin 2
Accuracy, max. [±FS%]
0.30 %
Accuracy, typical [±FS%]
0.1 %
Adj. zero point and span
No
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
C UL US UL Recognized, CE
Basic Data Text Template
Преобразователь давления MBS5150, 0…10 бар, 4-20 мА
CE evaluated
Yes
China RoHS compliance
Yes
Compensated temp. range [°C] [max]
80 °C
Compensated temp. range [°C] [min]
0 °C
Compensated temp. range [°F] [max]
176 °F
Compensated temp. range [°F] [min]
32 °F
Contain batteries
No
DG Indicator Profile
Not relevant for dangerous goods
EEE category
5 small equipment (any external dimension < 50 cm)
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Electrical conn. Male/Female
Male and Female
Electrical connection
Angular connector
Electrical connection size
M20
Electrical connection standard
EN 175301-803-A
Enclosure rating IP
IP65
Flush diaphragm
No
High Clipping Level
22.40
In scope of WEEE
Yes
Intrinsically safe
