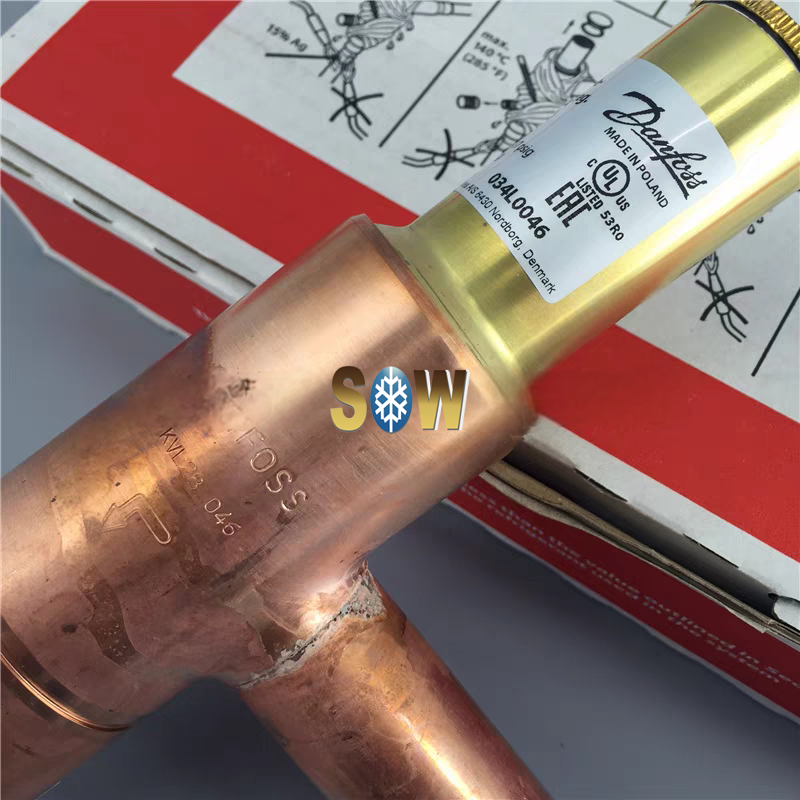

Name:	Danfoss Crankcase pressure regulator, KVL 28 034L0046
Brand:	Danfoss
Model No.:	KVL 28
Part No.:	034L0046
Country of origion:	Poland
G.W:	1.014kgs/pc
Inlet connection type:	Solder, ODF
Outlet connection type:	Solder, ODF
Kv value [m³/h]:	8
Max. Working Pressure [bar]:	18

Danfoss Crankcase pressure regulator, KVL 28 034L0046

Product details

Gross weight	1.014 Kilogram
Net weight	0.865 Kilogram

Volume	2.747 Liter
EAN	5702428411745

Approval	C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China
Approval file name	REFRIGERANT VALVE 53R0
China RoHS compliance	Yes
Contain batteries	No
Customer part number	00A387
Cv value [gal/min]	9.25 gal/min
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Factory setting [bar]	2 bar
Factory setting [psig]	29 psig
Flow direction indicator	Engraved 1-way arrow
Identical product	034L1066
Inlet connection type	Solder, ODF
Inlet size [in]	1 1/8 in
Kv value [m³/h]	8 m³/h
Lubricants compatibility	Oilfree applications
Max. test pressure [bar]	19.8 bar
Max. test pressure [psig]	286 psig
Max. Working Pressure [bar]	18 bar
Max. Working Pressure [psig]	260 psig
Medium temperature range [°C] [max]	130 °C
Medium temperature range [°C] [min]	-60 °C
Medium temperature range [°F] [max]	266 °F
Medium temperature range [°F] [min]	-76 °F
Oil free refrigerants	R1234ze(E) R513A
Other RoHS documentation	EAEU RoHS
Outlet connection type	Solder, ODF

Outlet size [in]	1 1/8 in
P band max. [bar]	1.5 bar
P band max. [psi]	22 psi
Packing format	Multi pack
Product accessories	No
Product group	Press. and temp. regul. valves
Product Name Description	Crankcase pressure regulator
Quantity per packing format	7 pc
Rated cap. R404A/R507A [kW]	15.9 kW
Rated cap. R404A/R507A [TR]	3.4 TR
Rated capacity R134a [kW]	13.2 kW
Rated capacity R134a [TR]	2.6 TR
Rated capacity R22 [kW]	17.8 kW
Rated capacity R22 [TR]	4.1 TR
Rated capacity R407C [kW]	16.4 kW
Rated capacity R407C [TR]	3.8 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A
Regulation range [bar] [max]	6 bar
Regulation range [bar] [min]	0.2 bar
Regulation range [psig] Pe [max]	87 psig
Regulation range [psig] Pe [min]	3 psig
SCIP dossier no.	842c526f-b213-4baa-869c-a91bb999a318
Serviceable	KV valves spare parts
Type	KVL 28
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B R516A
UL evaluated	Yes
