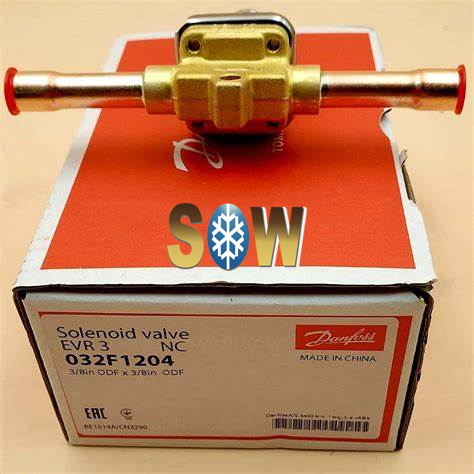

Name:	Danfoss Solenoid valve, EVR 3, Solder, ODF, 3/8 in, 032F1204
Brand:	Danfoss
Model No.:	EVR 3
Part No.:	032F1204
Country of origion:	China
G.W:	0.224kgs/pc
Function:	NC
Body material:	Brass
Kv value [m³/h]:	0.270
Packing format:	Multi pack

Danfoss Solenoid valve, EVR 3, Solder, ODF, 3/8 in, 032F1204

Product details

Gross weight	0.224 Kilogram
Net weight	0.174 Kilogram

Volume	0.897 Liter
EAN	5702422004189

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [max]	175 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	EAC LLC CDC TYSK
Body material	Brass
China RoHS compliance	Yes exceed limitations
Coil	No
Cv value [gal/min]	0.31 gal/min
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Fluid Group	1 2
Function	NC
Identical product	032F5084
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	3/8 in
Kv value [m³/h]	0.27 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[psi] 10W AC	550 psi
Medium temp. range note	Defrost max 130°C/265°F
Medium temperature range [°C] [max]	105 °C

Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0 bar
MOPD[bar/psi]	Coil Dependend
MWP [bar] PED compliant	49 bar
Orifice size [mm]	3.3 mm
Outlet connection type	Solder, ODF
Outlet size [in]	3/8 in
Packing format	Multi pack
Parts Program name	EVR
PED category	Art. 4, par. 3
Product accessories	Solenoid valve accessories
Product group	Solenoid valves
Product Name Description	Solenoid valve
Quantity per packing format	24 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R512A R513A R513B R515A R515B R516A R600 R600a
SCIP dossier no.	52f475eb-6026-442a-932e-863e4660eac8
SCIP dossier product name	EVR 2-8/EVO 100-102
Serviceable	Solenoid valve spare parts
Type	EVR 3
Type designation	Solenoid valve, Solder
UK RoHS compliance	Out of scope
UL approved refrigerants	R290 R600 R600a
Valve operation	Direct
