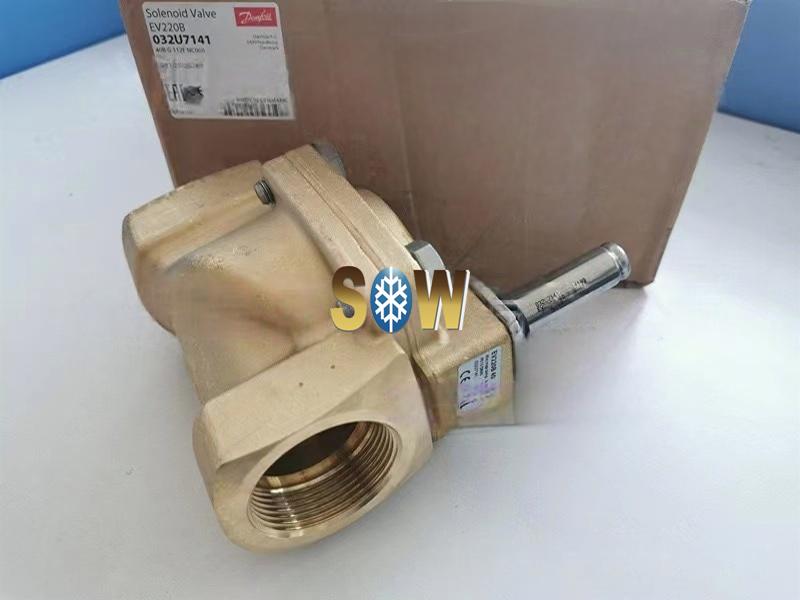

Name:	Danfoss Solenoid valve, EV220B, G, 1 1/2, 24.00 m³/h, FKM 032U7141
Brand:	Danfoss
Model No.:	EV220B
Part No.:	032U7141
Country of origion:	Denmark
G.W:	3.36kgs/pc
Function:	NC
Approval:	DNVGL-CG-0339 PED; CE; UKCA,
Body material:	Brass
Operation:	Servo-operated (diaphragm)
Number of ways:	2/2

Danfoss Solenoid valve, EV220B, G, 1 1/2, 24.00 m³/h, FKM 032U7141

Product details

Gross weight	3.36 Kilogram
Net weight	2.997 Kilogram

Volume	7.334 Liter
EAN	5702423017942

Actuator	B
Actuator size	13.5 mm
Actuator size [in]	0.53 in
Actuator system [mm]	13.5 mm
Ambient temperature max. [°C]	80 °C
Ambient temperature max. [°F]	176 °F
Application	Open
Approval	CE DNVGL-CG-0339 PED UKCA
Body material	Brass
CE evaluated	Yes
China RoHS compliance	Out of scope
Connection Internal/External	Internal
Connection material	Brass
Connection size [in]	1 1/2
Connection standard	ISO 228-1
Connection type	G
Cv value [gal/min]	27.7 gal/min
Differential pressure [bar] [max]	10 bar
Differential pressure [bar] [Min]	0.3 bar
Differential pressure [psi] [Max]	145 psi
Differential pressure [psi] [Min]	4.35 psi
EEE category	5 small equipment (any external dimension 50 cm)
Est. time to close, water [ms]	4000 ms
Est. time to open, water [ms]	1500 ms
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Single-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Function	NC
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No

Kv value [m³/h]	24 m³/h
Max media viscosity [cSt]	50 cSt
Max. test pressure [bar]	15 bar
Max. test pressure [psig]	217.5 psig
Max. Working Pressure [bar]	10 bar
Max. Working Pressure [psig]	145 psig
Media recommendations	Oil,Comp.Air,Vacuum
Media tolerance comments	Neutral media Water at max. 60°C/140 °F
Medium temperature range [°C] [Max]	100 °C
Medium temperature range [°C] [Min]	0 °C
Medium temperature range [°F] [Max]	212 °F
Medium temperature range [°F] [Min]	32 °F
Number of ways	2/2
Open/close equalizing orifice	Optional Equalization orifice
Operation	Servo-operated (diaphragm)
Orifice size [mm]	40 mm
Orifice size fraction [in]	1 1/2 in
Packing format	Single pack
Parts Program name	EV220B 15 - 50
Product accessories	Solenoid valve accessories
Product group	Solenoid valves
Product name	Solenoid valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	b8af40bc-3f7f-4177-bd55-c3503cccfc04
Seal Material	FKM
Serviceable	Solenoid valve spare parts
Specification key	EV220B 40B G 112F NC000
Type	EV220B
Type designation	EV220B 40
UK RoHS compliance	Out of scope
