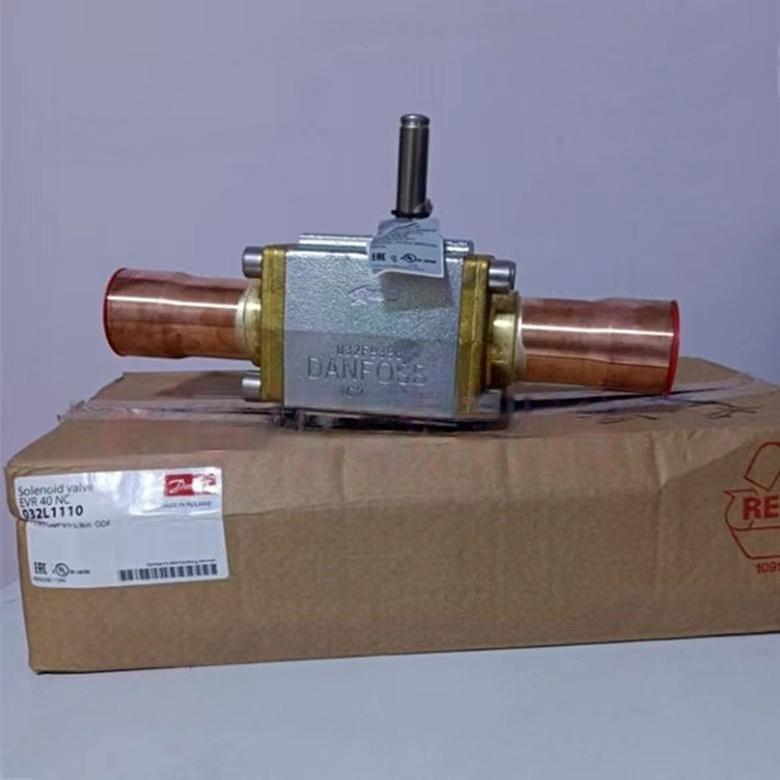

Name:	Danfoss Solenoid valve, EVR 40, Solder, ODF, 1 5/8 in, 032L1110
Brand:	Danfoss
Model No.:	EVR 40
Part No.:	032L1110
Country of origion:	Poland
G.W:	4.78kgs/pc
Function:	NC
Body material:	Cast iron
Cv value [gal/min]:	28.00
Packing format:	Single pack

Danfoss Solenoid valve, EVR 40, Solder, ODF, 1 5/8 in, 032L1110

Product details

Gross weight	4.78 Kilogram
Net weight	4.426 Kilogram

Volume	7.56 Liter
EAN	5702428943130

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Approval	EAC LLC CDC EURO-TYSK UL
Body material	Cast iron
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
Coil	No
Cv value [gal/min]	28 gal/min
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(c)
Function	NC
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	1 5/8 in
Kv value [m³/h]	24.2 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[bar] 20W DC	17 bar
MaxOPD[bar] coil BJ/BX	31 bar
MaxOPD[psi] 10W AC	550 psi
MaxOPD[psi] 20W DC	246 psi
MaxOPD[psi] coil BJ/BX	450 psi

Medium temperature range [°C] [Max]	105 °C
Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	221 °F
Medium temperature range [°F] [Min]	-40 °F
MinODP [bar]	0.2 bar
MinODP [psi]	2.9 psi
MOPD[bar/psi]	COIL DEPENDEND
Orifice size [mm]	25.4 mm
Outlet connection type	Solder, ODF
Outlet size [in]	1 5/8 in
Packing format	Single pack
Parts Program name	EVR
Product accessories	Solenoid valve accessories
Product group	Solenoid valves
Product name	Solenoid valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E) R125 R134a R152a R22 R404A R407A R407C R407F R410A R448A R449A R450A R452A R507A R513A R515B
SCIP dossier no.	6a76eb5e-6ca8-43d3-be03-8320fd28438e
Serviceable	Solenoid valve spare parts
Type	EVR 40
Type designation	Solenoid valve, Solder
UK RoHS compliance	Out of scope
UL approved refrigerants	R125 R134a R152a R22 R404A R407A R407C R407F R410A R448A R449A R450A R452A R507A R513A R515B
Valve operation	SERVO-PISTON
