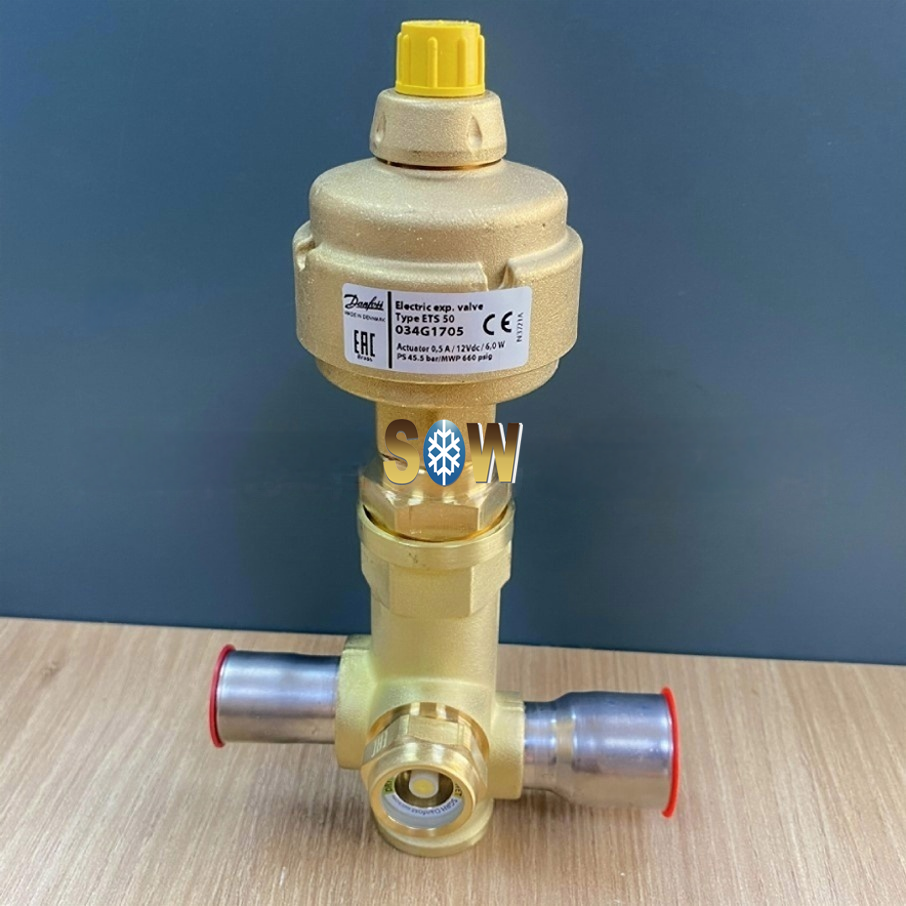

Name:	Danfoss Electric expansion valve, ETS 50 034G1705
Brand:	Danfoss
Model No.:	ETS 50
Part No.:	034G1705
Country of origion:	Denmark
Inlet connection type:	Solder ODF
Inlet size [in]:	7/8 in
Outlet size [in]:	1 1/8 in

Product Description

Danfoss Electric expansion valve, ETS 50 034G1705

Product details

Gross weight	1.746 Kilogram
Net weight	1.467 Kilogram

Volume	6.248 Liter
EAN	5702428827027

Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	140 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE EAC LLC CDC TYSK UKCA UL
Balanced port [Yes/No]	Yes
China RoHS compliance	Yes
Compatible Danfoss controllers	EKE 1A EKE 1B EKE 1C
Connection material	Bi-metal: Steel/copper
Direction	Straightway
Electrical conn. Male/Female	Male
Electrical connection	M12
Electrical connection size	4 pin
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Bi-flow
Fluid Group	2
Full travel time speed [s] [max]	17 s
Full travel time speed [s] [min]	8.5 s
In scope of WEEE and contain batteries	No
Inlet connection type	Solder ODF
Inlet size [in]	7/8 in
Lubricants compatibility	MO POE
Manual operation option	AST-G service driver
Max allowed duty cycle [%]	100 %
Max tot PowerCons CurrDrive[W]	1.3 W
Max tot PowerCons VoltDrive[W]	5.5 W
Max. Working Pressure [bar]	45.5 bar
Max. Working Pressure [psig]	660 psig
MaxOPD [bar]	33 bar
MaxOPD [psi]	478.6 psi
MaxOPD reverse [bar]	33 bar
MaxOPD reverse [psi]	478.6 psi
Motor type	Bi-polar
Outlet connection type	Solder ODF
Outlet size [in]	1 1/8 in
Packing format	Single pack
PED category	I

Phase current (peak) [mA]	141 mA
Phase current (RMS) [mA]	100 mA
Phase inductance [µH]	85000 μH
Product accessories	Stepper valve accessories
Product group	Expansion valves
Product Name Description	Electric expansion valve
Quantity per packing format	1 pc
Rated cap. cond. note	Full stroke open, normal flow
Rated cap. conditions [IMP]	tcond=90 °F tevap=40 °F tliq=82 °F
Rated cap. conditions [SI]	tcond=32 °C tevap=5 °C tliq=28 °C
Rated cap. R404A/R507A [kW]	161.4 kW
Rated cap. R404A/R507A [TR]	46.3 TR
Rated capacity R134a [kW]	170 kW
Rated capacity R134a [TR]	48.9 TR
Rated capacity R22 [kW]	215 kW
Rated capacity R22 [TR]	62 TR
Rated capacity R407C [kW]	240.5 kW
Rated capacity R407C [TR]	69.1 TR
Rated capacity R410A [kW]	262.3 kW
Rated capacity R410A [TR]	75.7 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9)
Refrigerant temperature [ºC] [max]	65 °C
Refrigerant temperature [ºC] [min]	-40 °C
Refrigerant temperature [ºF] [max]	150 °F
Refrigerant temperature [ºF] [min]	-40 °F
Refrigerants	R1234ze(E) R134a R22 R404A R407A R407C R407F R407H R410A R417A R422A R422B R422D R438A R442A R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B
Resistance [kOhm]	0.1 kOhm
SCIP dossier no.	c5625b77-53ec-4079-9d51-0ef83e9579dd
SCIP dossier product name	ETS 50-100 with sight glass
Serviceable	Stepper valve spare parts
Sightglass	Yes
Step mode	2-phase full step
Total steps	2625 (full steps)
Type	ETS 50
UK RoHS compliance	Yes
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R450A R452A R507A R513A
Voltage [V] DC [max]	13.8 V
Voltage [V] DC [min]	11.5 V
