Danfoss Solenoid coil, BF230AS, Cable, 1.000 m, 018F6251-Product Center-Star-Worths Refrigeration Co.,Ltd.-

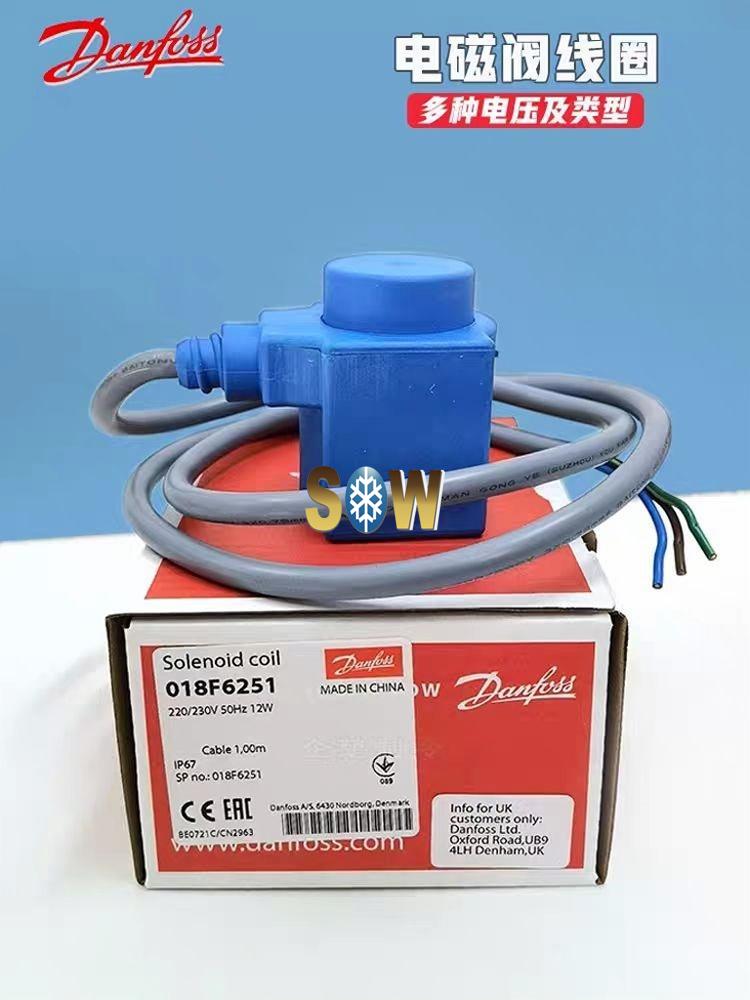

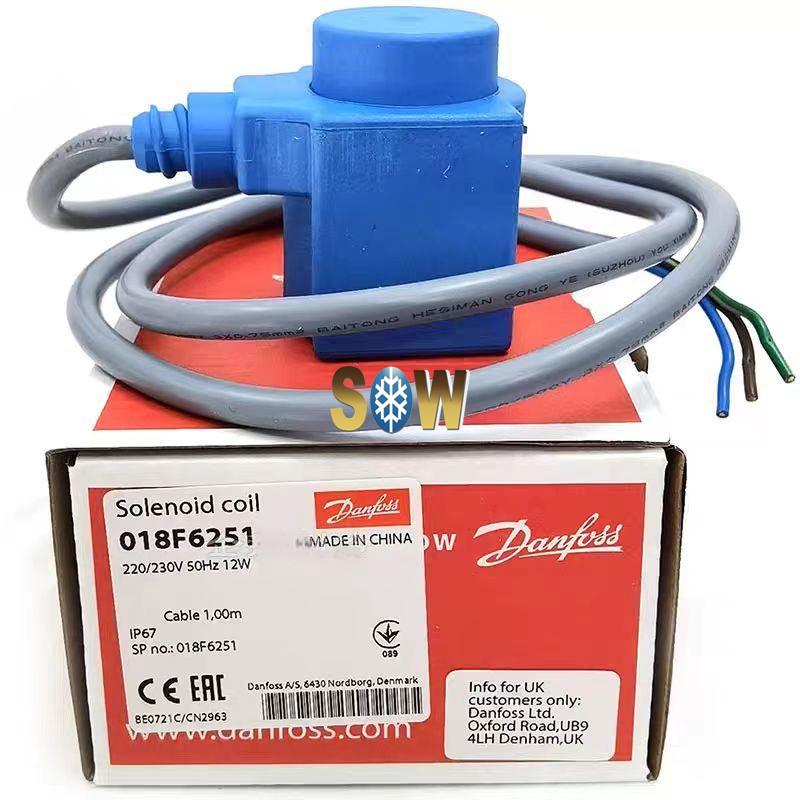

Name:	Danfoss Solenoid coil, BF230AS, Cable, 1.000 m, 018F6251
Brand:	Danfoss
Model No.:	BF230AS
Part No.:	018F6251
Country of origion:	China
G.W:	0.354kgs/pc
Enclosure rating IP:	IP67
Frequency [Hz]:	50 Hz
Supply voltage [V] AC:	220 - 230
Electrical connection:	Cable

Danfoss Solenoid coil, BF230AS, Cable, 1.000 m, 018F6251

Product details

Gross weight	0.354 Kilogram
Net weight	0.297 Kilogram

Volume	0.86 Liter
EAN	5702428024815

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	80 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	175 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC TYSK
Cable diameter [mm]	6.6 mm
Cable length [in]	40 in
Cable length [m]	1 m
China RoHS compliance	Yes
Coil connection	Cable
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Conductor area [mm2]	3 x 0.75 mm2
Duty rating	Continuous
Electrical connection	Cable
Electrical connector	3 core cable
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(c)
Frequency [Hz]	50 Hz

Identical product	018F8201
In scope of WEEE and contain batteries	No
Packing format	Multi pack
Parts Program name	EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B
Power consumption 50Hz [VA]	22 VA
Power consumption [W] 50Hz	12 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product Name Description	Solenoid coil
Quantity per packing format	24 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]	100 %
Rel. Humidity [% RH] [min]	0 %
SCIP dossier no.	23785618-b379-4da7-a913-ecd40c8fae6d
Serviceable	No
Spare part number	018F6251
Supply voltage 50Hz Max [V]	230 V
Supply voltage 50Hz Min [V]	220 V
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	220 V
Type	BF230AS
Type designation	BF230AS
UK RoHS compliance	Yes
