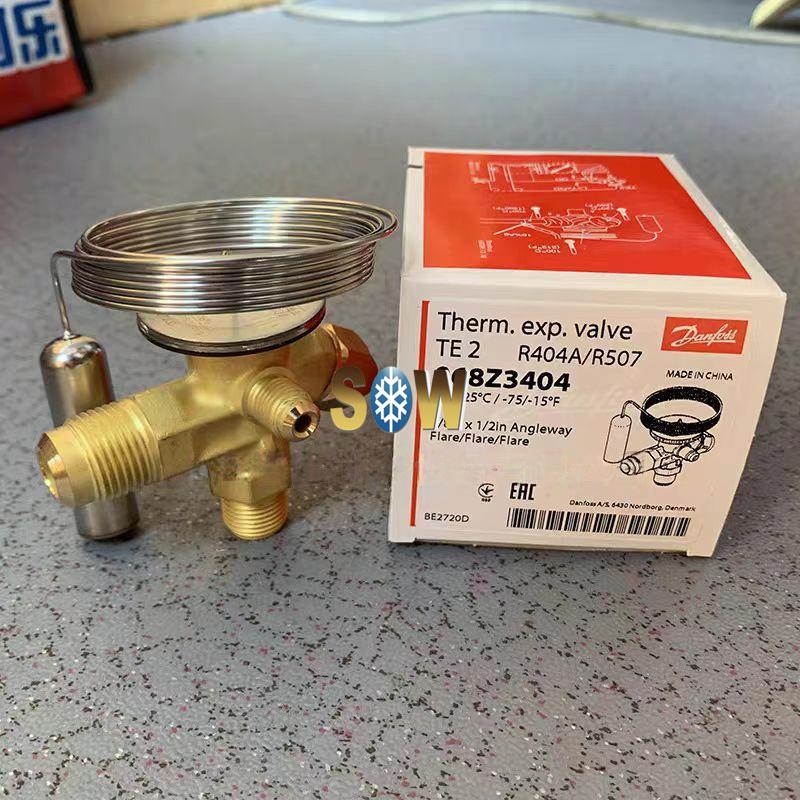

Name:	Danfoss Thermostatic expansion valve, TE 2, R404A/R507A 068Z3404
Brand:	Danfoss
Model No.:	TE 2
Part No.:	068Z3404
Country of origion:	China
G.W:	0.318kgs/pc
Product Name Description:	Thermostatic expansion valve
Temperature range [°C]:	-60 - -25
Pressure equalization:	Externally equalized

Danfoss Thermostatic expansion valve, TE 2, R404A/R507A 068Z3404

Product details

Gross weight	0.318 Kilogram
Net weight	0.293 Kilogram

Volume	0.489 Liter
EAN	5702422125167

Approval	EAC LLC CDC TYSK
Body material	Brass
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
China RoHS compliance	Yes exceed limitations
Connection material	Brass
Direction	Angleway
Equalization connection type	Flare
Equalization size [in]	1/4 in
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(c)
Flow direction	Bi-flow with orifice 01-05
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Identical product	068Z3637
In scope of WEEE and contain batteries	No
Inlet connection type	Flare
Inlet size [in]	3/8 in
Max. Working Pressure [bar]	34 bar
Max. Working Pressure [psig]	500 psig
Outlet connection type	Flare
Outlet size [in]	1/2 in
Packing format	Multi pack

Parts included	Bulb strap
Parts Program name	T2/TE2
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R404A/R507A
SCIP dossier no.	c164ed45-f10d-4d73-9eae-355ccb479f4b
SCIP dossier product name	T2 /TE2 - Thermostatic Expansion Valve
Serviceable	TXV spare parts
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	-25 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	-15 °F
Temperature range [°F] [min]	-75 °F
Type	TE 2
UA address	UA_2L.png
UK RoHS compliance	Out of scope
