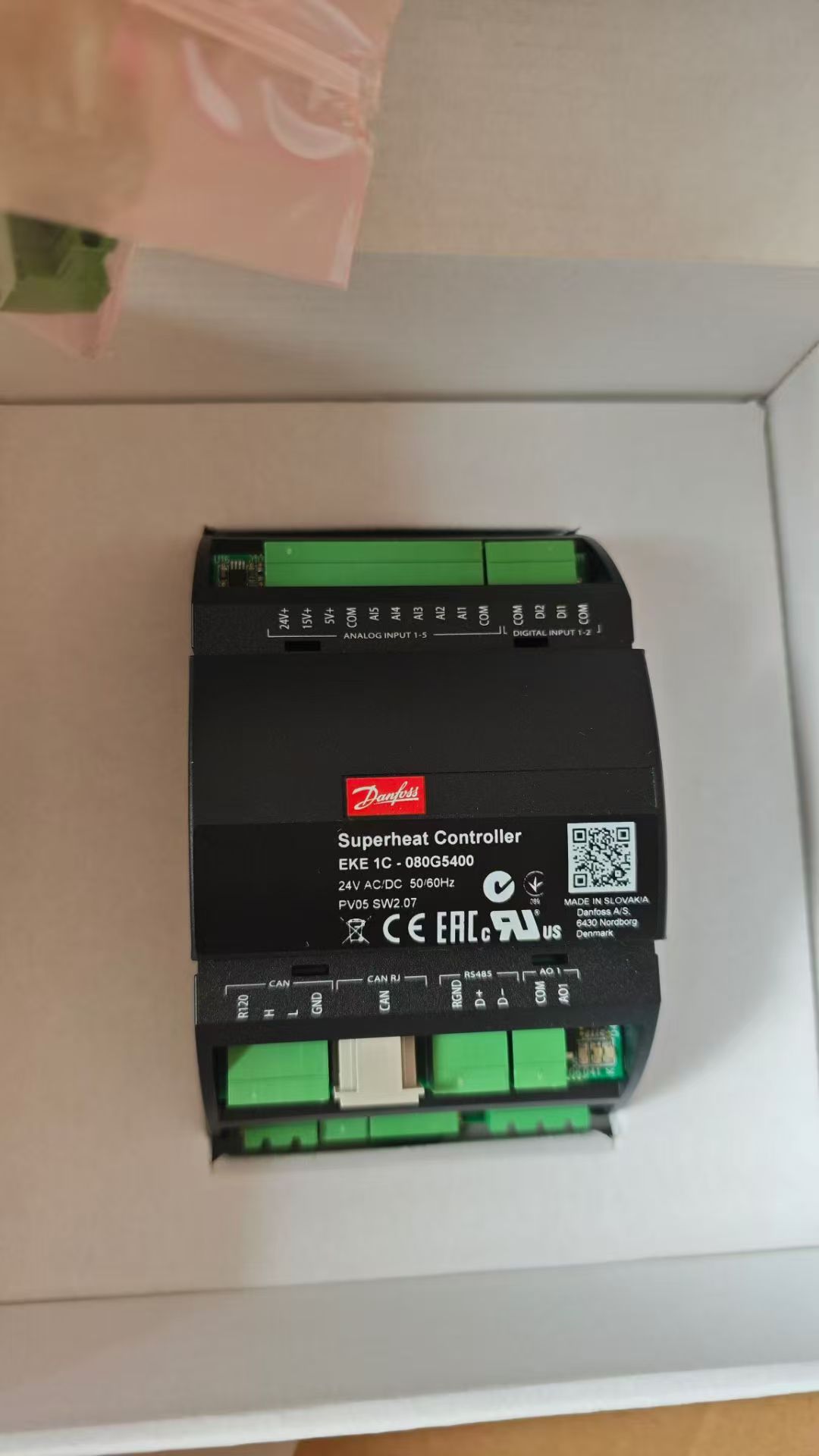

Name:	080G5400 Danfoss Superheat controller, EKE 1C
Brand:	Danfoss
Model No.:	EKE 1C
Part No.:	080G5400
Country of origion:	SLOVAKIA
G.W:	0.292kgs/pc
Pressure sensor support:	Ratiometric 0.5 - 4 V DC
Frequency [Hz]:	50/60 Hz
Number of pressure sensors:	3
Digital inputs (DI) [pc]:	2
Analog inputs (AI) [pc]:	2
Communication type:	CANBUS
RJ11 (CAN) to User Interface:	Modbus RS485 RTU
Product Name Description:	Superheat controller

080G5400 Danfoss Superheat controller, EKE 1C

Product details

Gross weight	0.292 Kilogram
Net weight	0.165 Kilogram

Volume	1.845 Liter
EAN	5702428964333

Analog inputs (AI) [pc]	2 pc
Analog inputs type	Voltage
Approval	C-TICK CE EAC LLC CDC EURO-TYSK RoHS UKCA
Battery back-up [V] DC [max]	24 V
Battery back-up [V] DC [min]	18 V
China RoHS compliance	Out of scope
Communication type	CANBUS Modbus RS485 RTU RJ11 (CAN) to User Interface
Digital inputs (DI) [pc]	2 pc
Digital outputs (DO) [pc]	1 pc
Display - option	MMIGRS2
Display on front	No
EEE category	5 small equipment (any external dimension 50 cm)
Enclosure rating note	IP40 for Housing
EU RoHS compliance	Out of scope
Frequency [Hz]	50/60 Hz
Further information	Shared power supply Signal share via hardwire
Gateway option	MMIMYK
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Mounting method	DIN rail
Number of pressure sensors	3

Other RoHS documentation	EAEU RoHS
Packing format	Multi pack
Pressure sensor support	Ratiometric 0.5 - 4 V DC
Product accessories	Electron. control accessories
Product features	Alarm management Capacity signal from master Defrost Sequence Ext reference, temp/SH control Limitation functions Manual operation Preset OD Reversible system with 1 EXV Service mode Start up Superheat reference Valve driver: Reference of OD
Product group	Electronic valve control
Product Language	Chinese English French German Italian Portuguese Russian Spanish
Product Name Description	Superheat controller
Programming tools	Koolprog
Quantity per packing format	16 pc
REACH Candidate List substances	No
Serviceable	No
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
Supply voltage [V] DC	24 V
Temp. sensor configuration	S2, S3 and S4
Temp. sensor support	NTC10000
Type	EKE 1C
UK RoHS compliance	Out of scope
Valve output type	CCM 10 CCM 20 CCM 30 CCM 40 CCMT 0 CCMT 1 CCMT 16 CCMT 2 CCMT 24 CCMT 30 CCMT 4 CCMT 42 CCMT 8 CTR 20 ETS 100 ETS 100C ETS 12.5 ETS 12C ETS 24C ETS 25 ETS 250 ETS 25B ETS 25C ETS 400 ETS 50 ETS 50C ETS 5M ETS 6 KVS 15 KVS 2C KVS 3C KVS 42 KVS 5C
