Location:Index--->Product Center >> Danfoss Control >> Danfoss Capacity Refrigeration Controls KVC15 034L0147
|
|
||||||||||||||||||||||||||||
Product Description

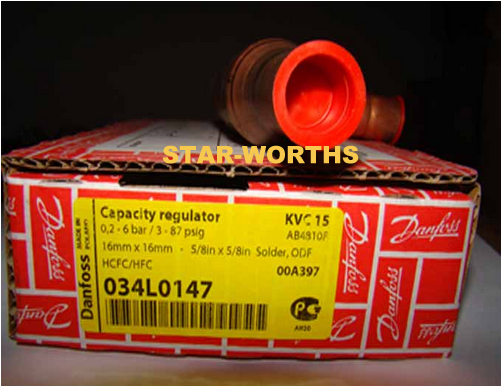

Danfoss Capacity Refrigeration Controls KVC15 034L0147
Danfoss Capacity Regulators
A capacity regulator is used for the adaption of the compressor Capacity to the actual evaporator load.
They are placed in a by-pass between high and low pressure sides Of the refrigeration plant.
In this position they impose a downward Limit on the compressor suction pressure by supplying the low Pressure side with replacement duty in the form of hot gas/cool Gas from the high-pressure side.
KVC type energy regulator is for regulating capacity of the compressor, to adapt to the evaporator load.
KVC type energy regulator is mounted on the refrigeration system of high / low pressure side of the road between the bypass pipe.
KVC helps to send the heat from high pressure side into the lower pressure side through the bypass line, to replace part of the load, so that the compressor suction pressure is not less than the minimum limit.
KVC type energy regulator is mounted on the refrigeration system of high / low pressure side of the road between the bypass pipe.
KVC helps to send the heat from high pressure side into the lower pressure side through the bypass line, to replace part of the load, so that the compressor suction pressure is not less than the minimum limit.
Please find More Models as below:
| Type | Rated capacity | Solder connection ( inch) |
Code no. | |||
| R22 | R134a | R404A/R507 | R407C | |||
| KVC12 | 7.6 | 4.8 | 6.9 | 8.4 | 1/2 | 034L0143 |
| KVC15 | 14.9 | 9.4 | 13.6 | 16.4 | 5/8 | 034L0147 |
| KVC22 | 19.1 | 12 | 17.4 | 21 | 5/7 | 034L0144 |
| DaNfOss MODEL KVC | |||||||
| Part Number | Model Number | Regulating Range kPa (psig) |
Connections | Rated Capacity (kW) | |||
| R22 | R134a | R404A | R407C | ||||
| Capacity Regulator (hot gas Bypass) | |||||||
| 034L0141 | KVC12 | 20 to 600 (3 to 87) | 1/2" Fl.1 | 7.6 | 4.8 | 6.9 | 8.4 |
| 034L0042 | KVC15 | 5/8" Fl 1 | 14.9 | 9.4 | 13.6 | 16.4 | |
| 034L0043 | KVC12 | 1/2" ODS | 7.6 | 4.8 | 6.9 | 8.4 | |
| 034L0147 | KVC15 | 5/8" ODS | 14.9 | 9.4 | 13.6 | 16.4 | |
| 034L0144 | KVC22 | 7/8" ODS | 19.1 | 12 | 17.4 | 21 | |
