Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Pressure transmitter, MBS 9200, 064G5214

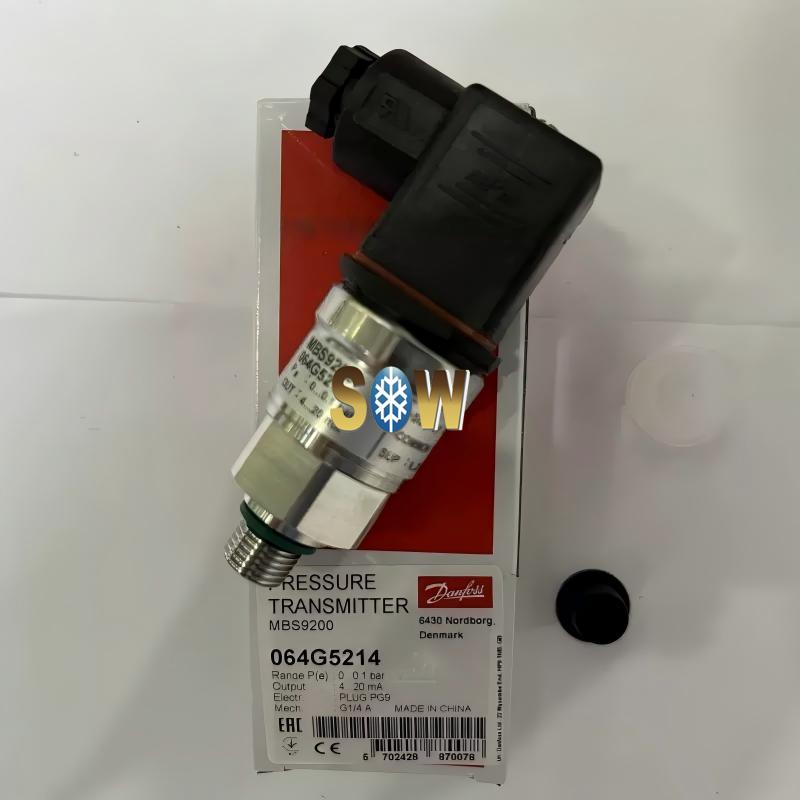

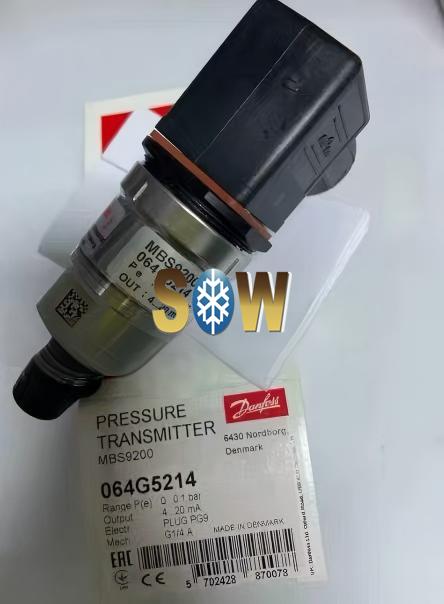

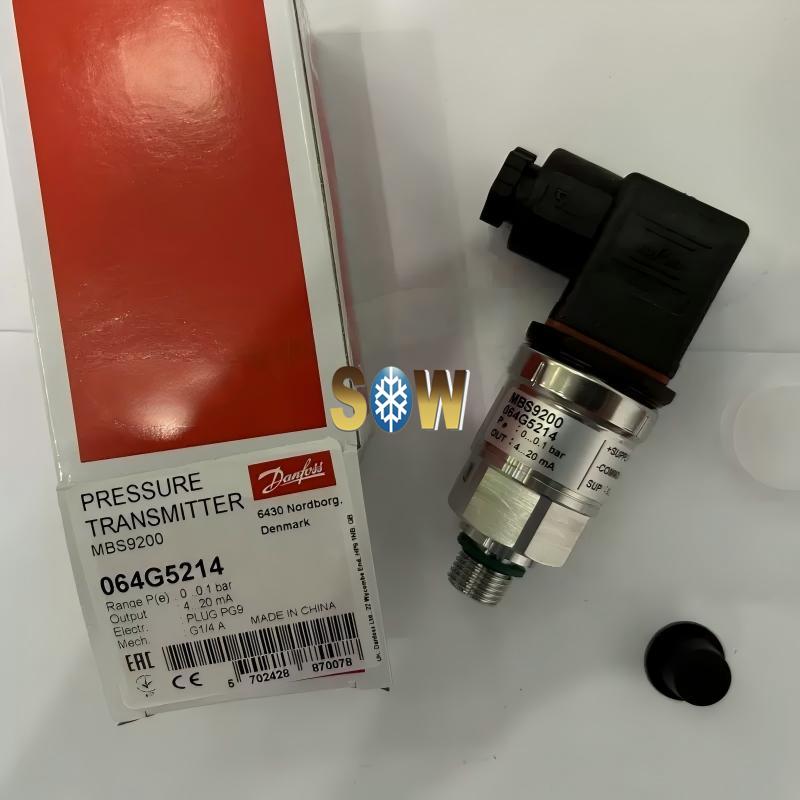

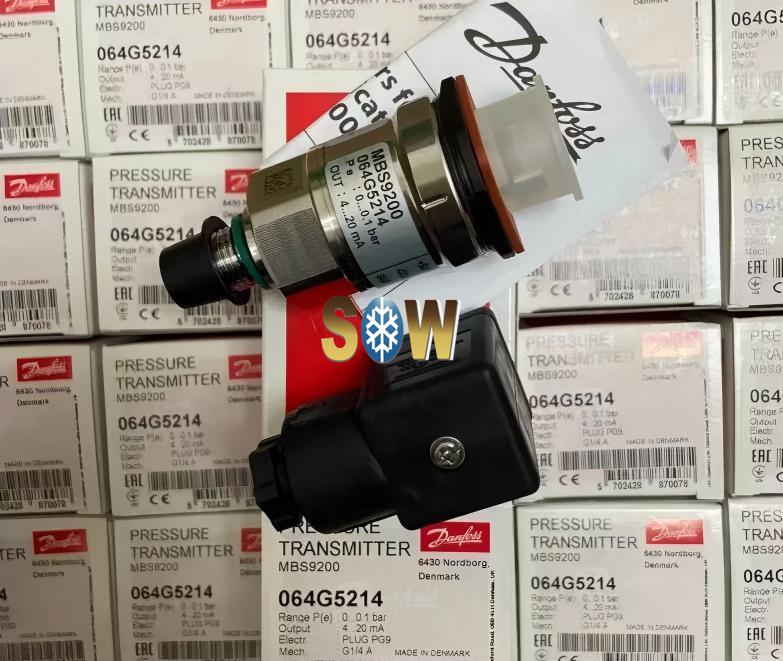

Name:Danfoss Pressure transmitter, MBS 9200, 064G5214
Brand:Danfoss
Model No.:MBS 9200
Part No.:064G5214
Country of origin:Denmark/China
G.W:0.176kgs/pc
Pressure range [bar]:0 mbar - 100 mbar
Pressure reference:Gauge (relative)
Output signal:Current
Electrical connection:Angular connector
Pressure connection type:G
Pressure connection size:1/4
Specification key:MBS 9200-B311-A1GB04-1

Product Description

Danfoss Pressure transmitter, MBS 9200, 064G5214

General specifications

Characteristic
Value
Gross weight
0.176 Kilogram
Net weight
0.161 Kilogram
Volume
0.261 Liter
Characteristic
Value
EAN/UPC
5702428870078
Proposition 65
Cancer and Reproductive Harm

Product specifications

Characteristic
Value
- common
Pin 2
+ supply
Pin 1
Acc. @ ref. Temp. ±FS typ. [%]
1.00 %
Ambient temperature range [°C] [max]
100 °C
Ambient temperature range [°C] [min]
-25 °C
Approval
C UL US UL Recognized, CE
Burst pressure [bar]
50.0 bar
CE mark
Yes
China RoHS compliance
Out of scope
Compensated temp. range [°C] [max]
80 °C
Compensated temp. range [°C] [min]
0 °C
Contains batteries
No
DG Indicator Profile
Not relevant for dangerous goods
Durability P @ 10-90% FS
10000000
EEE category
5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female
Male
Electrical connection
Angular connector
Electrical connection size
Pg 9
Electrical connection standard
EN 175301-803-A
Enclosure rating IP
IP65
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Hysteresis and repeat.[±FS%]
0.10 %
In scope of WEEE
Yes
Intrinsically safe
No
