Product Description

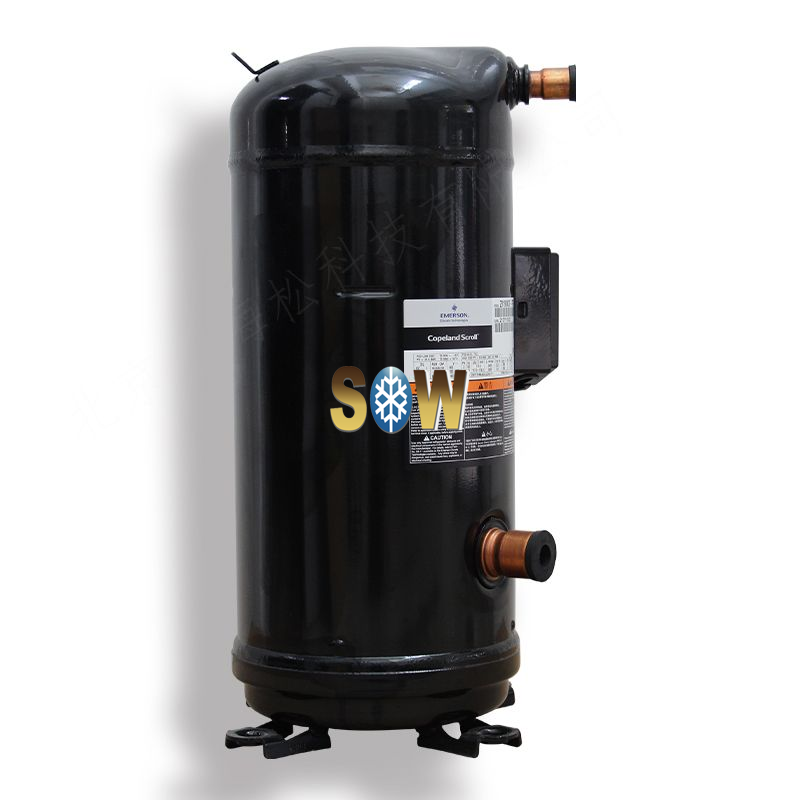

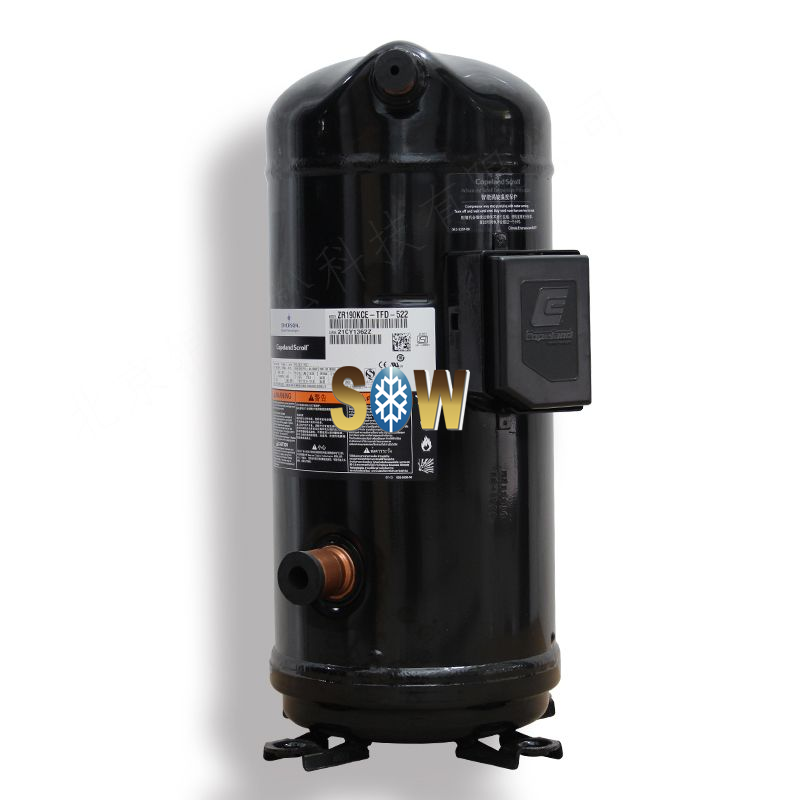

Copeland Scroll Compressor ZR190KCE-TFD-522
Apply 380V,3ph,50hz
Use R407C
Model | 名义匹数 HP |
制冷能力 | 输入功率 (W) |
电流 (A) |
COP (W/W) |
EER Btu/Wh |
排量 cc/Rev. |
注油量 (L) |
净重 (kg) |
堵转电流 (A) |
噪音声功率 (dBA) |
|
(W) | (Btu/h) | |||||||||||
ZR190KCE-TFD-522 | 15.0 |
44000 | 150000 | 13650 |
26.5 | 3.22 | 11.0 |
249.2 | 3.25 |
66.2 | 174.0 |
82.0 |
Copeland Scroll™ axial and radial flex technology guarantees excellent reliability and high efficiency.
Wide product capacity range.
Lower recirculation rates.
Superior resistance to liquid strikes.
Low noise and vibration levels.
Lower LCCP (life cycle climate performance).
Excellent seasonal energy efficiency ratios with dual and triple units in parallel (subject to verification or validation by Copeland™).
