Name:Copeland scroll compressor ZR190KCE-TFD-551
Brand:Copeland
Model No.:ZR
Part No.:ZR190KCE-TFD-551
Horse Power:15hp
Voltage:380/420 V
Refrigerant:R22

Product Description

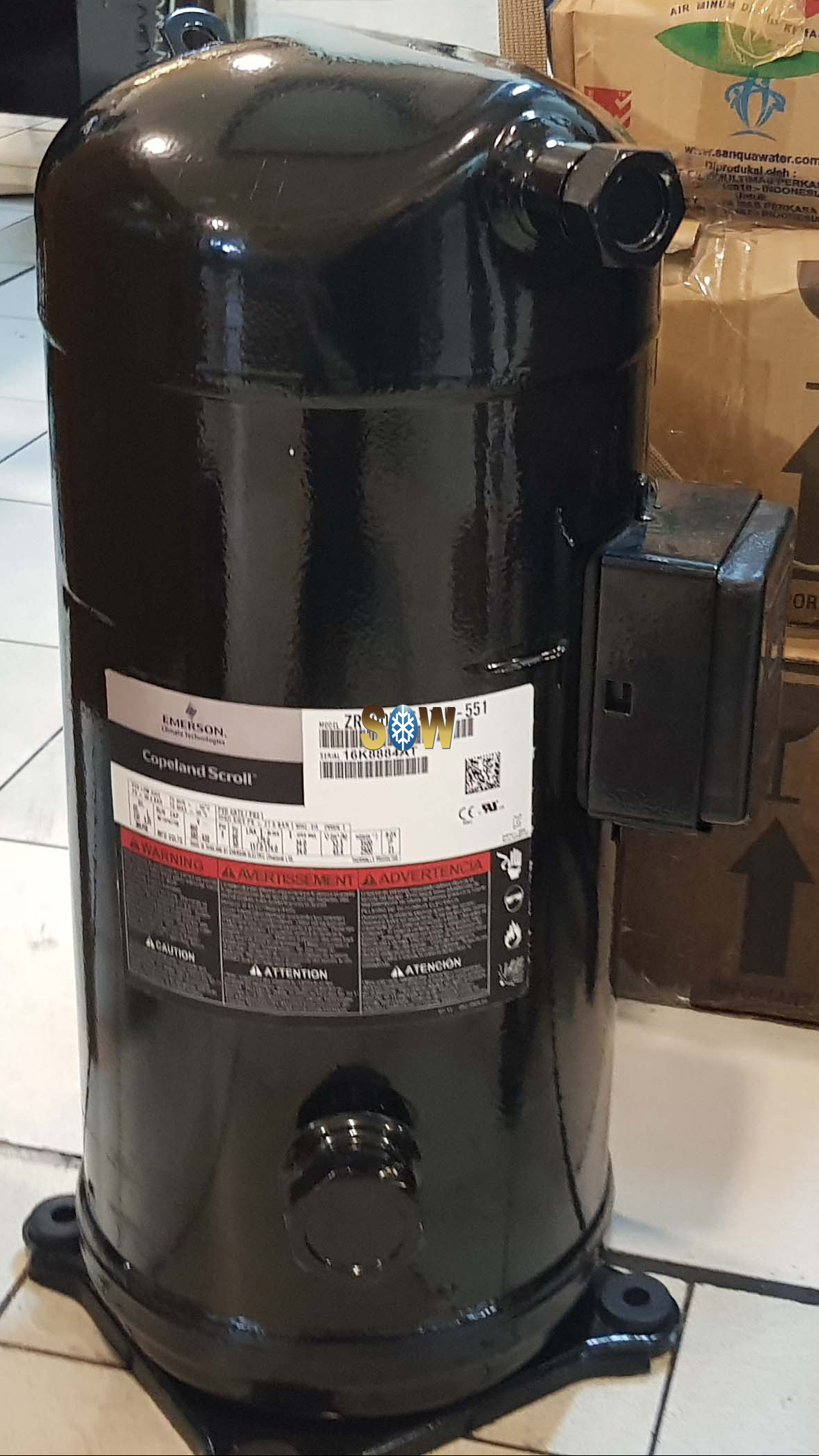

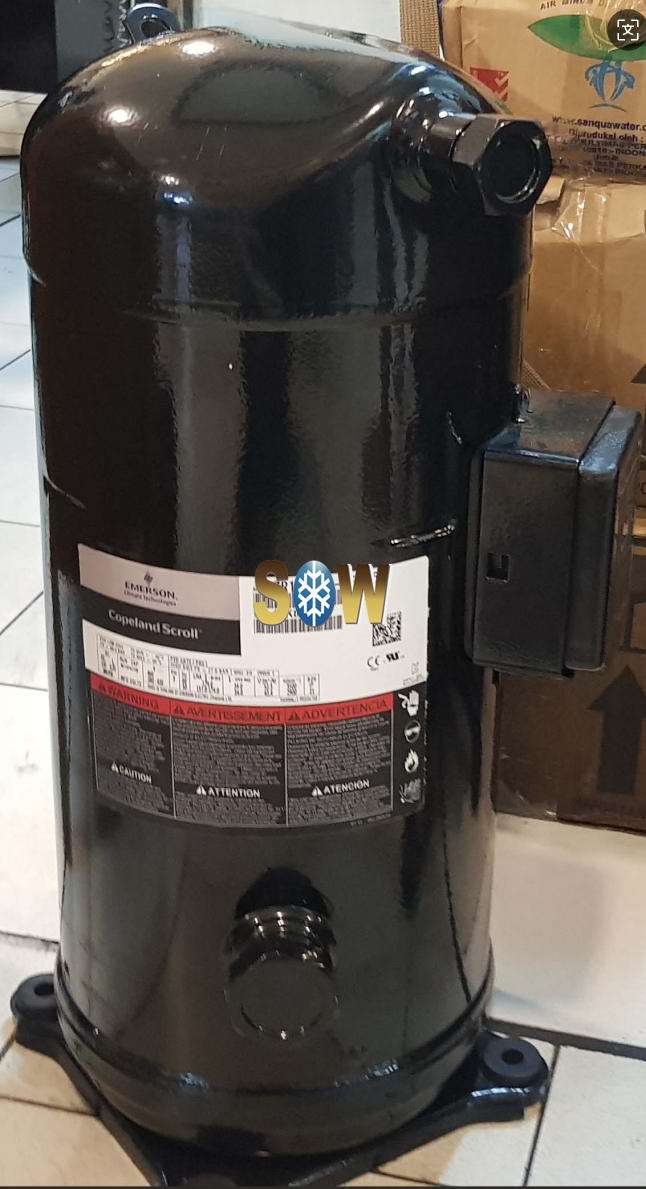

Copeland scroll compressor ZR190KCE-TFD-551

ZR Scroll Compressor Series

Copeland Scroll ZR compressors for R22, R407C & R134a is the broadest range on the market for air conditioning and process cooling applications. Used in the air conditioning industry for water chillers, roof-tops and close control unit applications.

Copeland Scroll Compressor ZR190KCE-TFD-551

Model : ZR190KCE-TFD-551

HCFC, R-22, 50 Hz, 3 – Phase, 380/420 V

Nominal Power : 15 HP

Suction Connection Rotalock Suction Size 1 3/4″

Discharge Connection Rotalock Discharge Size 1 1/4″

Initial Oil Charge (oz): 110

Oil Recharge (oz): 106

Oil Type:  3MA

Net Weight (lbs): 146.0

LRA High* (Amps): 174.0

LRA Low*(Amps): 157.0

MCC (Amps): 42

Max Operating Current (Amps): 34.0

RLA, MCC/1.4(use for contactor selection)(Amps):  30.0

RLA, MCC/1.56(use for breaker & wire size selection)(Amps):   26.9

Features Copeland Scroll Compressor ZR190KCE-TFD-551

Copeland Scroll™ axial and radial compliance for superior reliability and efficiency

Wide scroll line-up in R22, R407C and R134a

Low TEWI (Total Equivalent Warming Impact)

Low sound and vibration level

Low oil circulation rate

Copeland® qualified tandem and trio configurations for

superior seasonal efficiency (ESEER)
