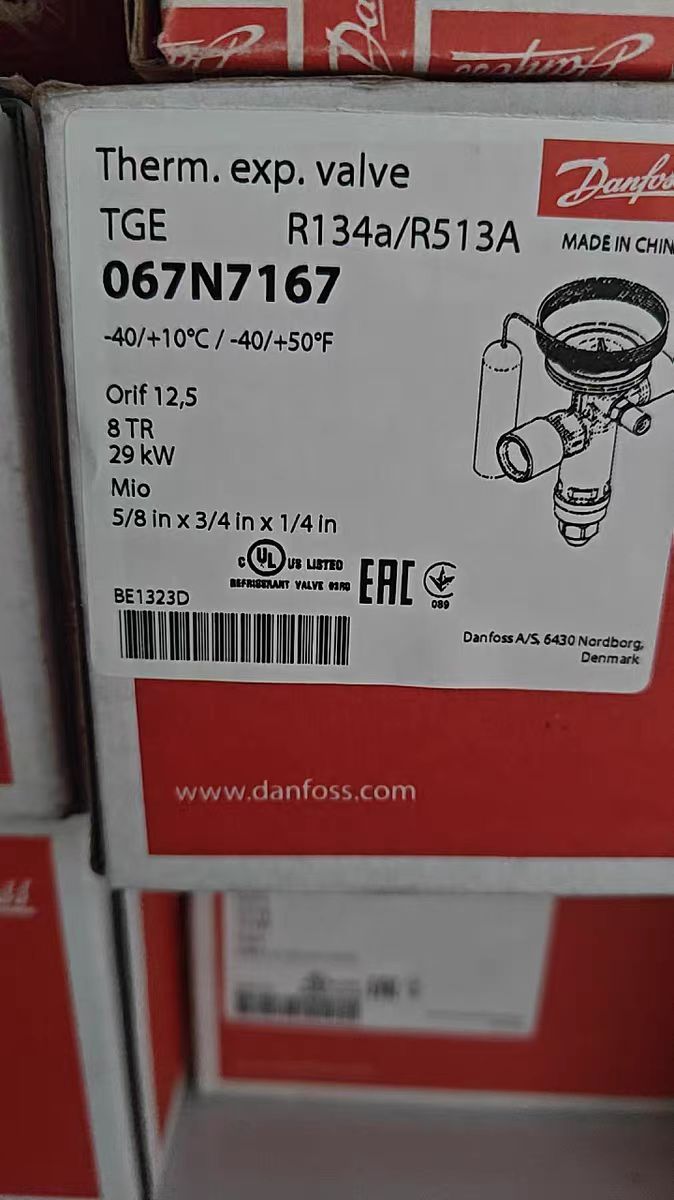

Name:	Danfoss Thermostatic expansion valve, TGE, R134a; R513A 067N7167
Brand:	Danfoss
Model No.:	TGE
Part No.:	067N7167
Country of origion:	China
G.W:	0.783kgs/pc
Temperature range [°C]:	-40 - 10
Orifice capacities [kW]:	29
Orifice capacities [TR]:	8
Pressure equalization:	Externally equalized

Danfoss Thermostatic expansion valve, TGE, R134a; R513A 067N7167

Product details

Gross weight	0.783 Kilogram
Net weight	0.68 Kilogram

Volume	2.589 Liter
EAN	5702428170253

Approval	C UL US LISTED EAC LLC CDC TYSK
Balanced port [Yes/No]	Yes
Body material	Brass
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
China RoHS compliance	Out of scope
Connection material	Brass
Contain batteries	No
Direction	Straightway
Element temperature max. [°C]	110 °C
Element temperature max. [°F]	230 °F
Equalization connection type	Mio
Equalization size [in]	1/4 in
EU RoHS compliance	Out of scope
Flow direction	Bi-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Inlet connection type	Mio
Inlet size [in]	5/8 in
Max. Working Pressure [bar]	49 bar
Max. Working Pressure [psig]	711 psig
Orifice capacities [kW]	29 kW
Orifice capacities [TR]	8 TR
Orifice size	12,5
Outlet connection type	Mio
Outlet size [in]	3/4 in

Packing format	Multi pack
Parts included	Bulb strap
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve
Quantity per packing format	8 pc
Rated cap. cond. Range N [IMP]	tcond=100 °F tevap=40 °F tliq=98 °F
Rated cap. cond. Range N [SI]	tcond=38 °C tevap=4.4 °C tliq=37 °C
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R513A
SCIP dossier no.	d44ec740-dfe8-4c0a-9644-96406f010504
SCIP dossier product name	TGE
Serviceable	No
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	10 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	50 °F
Temperature range [°F] [min]	-40 °F
Type	TGE
UK RoHS compliance	Out of scope
UL approved refrigerants	R134a R513A
UL evaluated	Yes
