Copeland scroll compressor ZF40K4E-TWD-551-Product Center-Star-Worths Refrigeration Co.,Ltd.-

Location:Index--->Product Center >> Copeland Compressors >> Copeland scroll compressor ZF41KQE-TFD-564

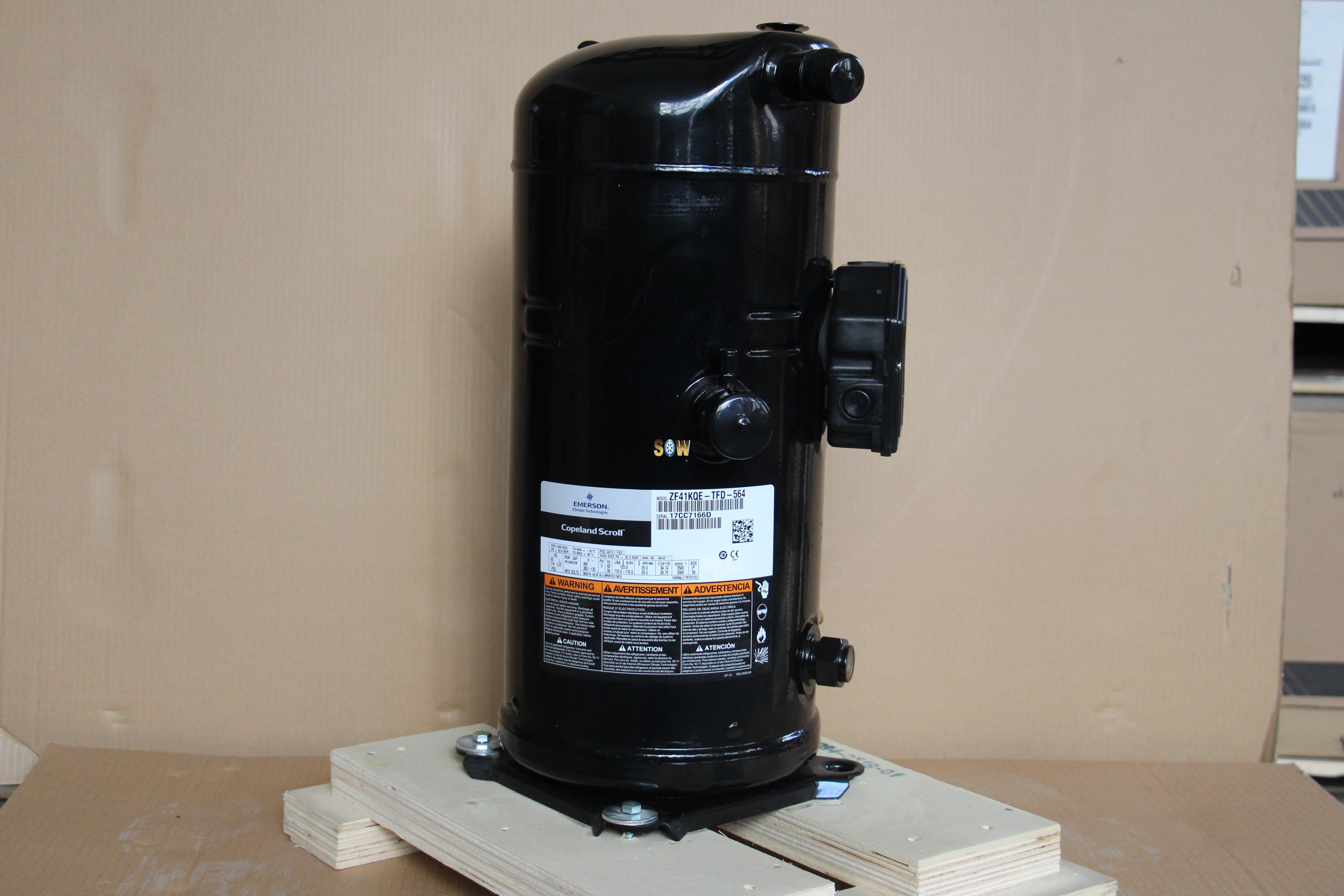

Name:	Copeland scroll compressor ZF41KQE-TFD-564
Brand:	Copeland
Model No.:	ZF41KQE-TFD-564
Country of origional:	USA
N.W:	63kgs/pc

Product Description

Copeland scroll compressor ZF41KQE-TFD-564

Emerson developed the ZFKQ range of Copeland scroll compressors to provide the best performance in low temperatures.

The series has a wide application envelope that can operate from -40°C to +7°C evaporating temperature.

Its optimized design perfectly fits frozen food application requirements while its scroll

compliance mechanism makes it highly tolerant of liquid slugging.

The ZF*KQE models that operate with liquid injection in order to control discharge temperature and extend the operating envelope.The ZFI*KQE models that are optimized for vapor injection with the use of a subcooler. This boosts the refrigeration system's cooling capacity and efficiency.
High efficiency all year round.
• The unique Copeland Compliant Scroll design patented by Emerson operates under continuous scroll flank contact, maintained by centrifugal force. This minimizes gas leakage while maximizing efficiency.
• With its capability for condensing operation down to 4°C on low temperature applications, Copeland Scroll technology provides the best seasonal efficiencies.
• Equipped with dynamic discharge valve that allows the discharge gas to reach desired pressure. This helps reduce efficiency loss by preventing gas re-compression.
• The vapor injection technology allows ZFI*KQE compressors to perform higher efficiency than single-stage
compressors at low temperature operation condition. Thus makes ZFI*KQE the best in-class performance.

MODEL:
380V 50HZ,460V 60HZ
ZF06KQE-TFD-551 ZF06KQE-TFD-550
ZF08KQE-TFD-551 ZF08KQE-TFD-550
ZF09KQE-TFD-551 ZF09KQE-TFD-550
ZF11KQE-TFD-551 ZF11KQE-TFD-550
ZF13KQE-TFD-551 ZF13KQE-TFD-550
ZF15KQE-TFD-551 ZF15KQE-TFD-550
ZF18KQE-TFD-551 ZF18KQE-TFD-550
ZF25KQE-TFD-551 ZF25KQE-TFD-550
ZF28KQE-TFD-551 ZF28KQE-TFD-550
ZF34KQE-TFD-564 ZF34KQE-TFD-554
ZF41KQE-TFD-564 ZF41KQE-TFD-554
ZF49KQE-TFD-564 ZF49KQE-TFD-554
ZF54KQE-TFD-564 ZF54KQE-TFD-554

3PH220V,50/60HZ
ZF06KQE-TF5-551 ZF06KQE-TF5-550
ZF08KQE-TF5-551 ZF08KQE-TF5-550
ZF09KQE-TF5-551 ZF09KQE-TF5-550
ZF11KQE-TF5-551 ZF11KQE-TF5-550
ZF13KQE-TFC-551 ZF13KQE-TFC550
ZF13KQE-TFC-551 ZF13KQE-TFC-550
ZF15KQE-TFC-551 ZF15KQE-TFC-550
ZF18KQE-TFC-551 ZF18KQE-TFC-550
ZF25KQE-TFC-551 ZF25KQE-TFC-550
ZF28KQE-TFC-591 ZF28KQE-TFC-580
ZF34KQE-TFC-564/567 ZF34KQE-TFC-554
ZF41KQE-TFC-564/567 ZF41KQE-TFC-554
ZF49KQE-TFC-564/567 ZF49KQE-TFC-554
ZF54KQE-TFC-564/567 ZF54KQE-TFC-554

380V 60HZ
ZF13KQE-TF7-551
ZF13KQE-TF7-550
ZF15KQE-TF7-551
ZF15KQE-TF7-550
ZF 18KQE-TF7-551
ZF18KQE-TF7-550
ZF25KQE-TF7-551
ZF25KQE-TF7-550
ZF28KQE-TF7-551
ZF28KQE-TF7-550
ZF34KQE-TF7-564/567
ZF34KQE-TF7-554
ZF41KQE-TF7-564/567
ZF41KQE-TF7-554
ZF49KQE-TF7-564/567
ZF49KQE-TF7-554
ZF54KQE-TF7-564/567
ZF54KQE-TF7-554

200V50HZ,230V60HZ
ZF06KQE-PFV-551 ZF06KQE-PFV-550
ZF08KQE-PFV-551 ZF08KQE-PFV-550
ZF09KQE-PFV-551 ZF09KQE-PFV-550
ZF11KQE-PFV-551 ZF11KQE-PFV-550
ZF13KQE-PFV-551 ZF13KQE-PFV-550
ZF15KQE-FPV-551 ZF15KQE-PFV-550
