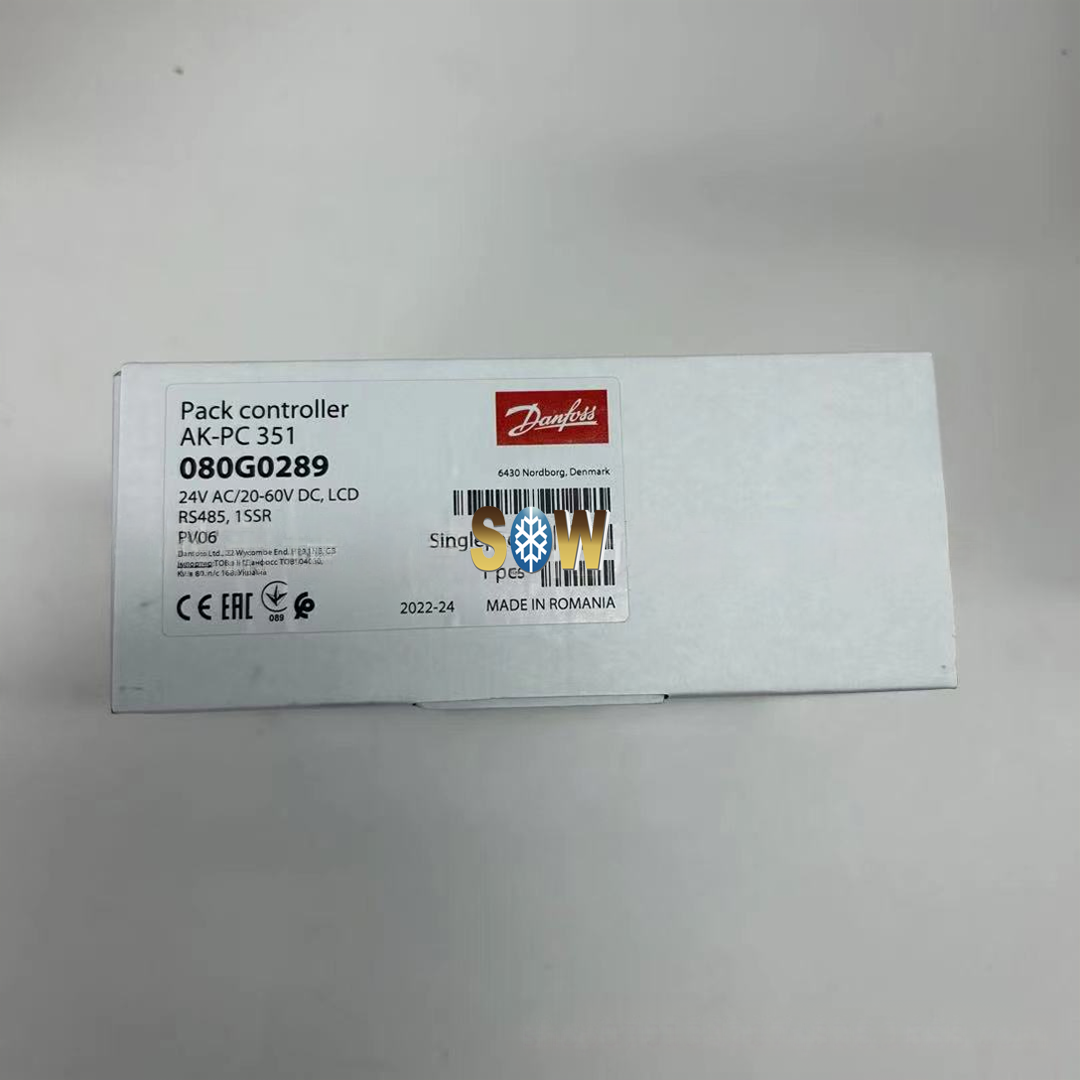

080G0289 Danfoss Pack controller, AK-PC 351-Product Center-Star-Worths Refrigeration Co.,Ltd.-

Name:	080G0289 Danfoss Pack controller, AK-PC 351
Brand:	Danfoss
Model No.:	AK-PC 351
Part No.:	080G0289
Country of origion:	Romania
G.W:	0.348kgs/pc
Quantity per packing format:	16pcs
Packing format:	Multi pack
Communication type:	MODBUS
Supply voltage [V] AC:	24
Digital inputs (DI) [pc]:	8
Function:	1 Suction and 1 Condenser
Product Name Description:	Pack controller

080G0289 Danfoss Pack controller, AK-PC 351

Product details

Gross weight	0.348 Kilogram
Net weight	0.248 Kilogram

Volume	1.867 Liter
EAN	5702428843621

1 Primary battery SUM weight Kg	0.001
1 Primary battery weight Kg	0.001
Analog inputs (AI) [pc]	4 pc
Analog outputs (AO) [pc]	2 pc
Application area	Capacity control
Approval	CE CMIM EAC GOST R UL
Battery qty	1
Battery type or Name	Lithium coin cell
Capacity control input	Pressure/ Temperature
Capacity control mode	PI
China RoHS compliance	Out of scope
Communication type	MODBUS
Compressor capacity mode	Step/ Speed/ PWM
Condenser control type	Pressure/ Temperature
Digital inputs (DI) [pc]	8 pc
Digital outputs (DO) [pc]	6 pc
Display on front	Yes
Equipment	Incl. Connectors
EU RoHS compliance	Out of scope
Fan capacity control	Step/ Speed
Fan control mode	PI
Frequency [Hz]	50/60 Hz

Function	1 Suction and 1 Condenser
Further information	Relay 6 solid state type
In scope of WEEE and contain batteries	Yes
Mounting method	DIN rail
Number of Compressors max.	4 pc
Other RoHS documentation	EAEU RoHS
Packing format	Multi pack
Power consumption [W]	6 W
Product accessories	Electron. control accessories
Product features	Compressor safety Fan safety Floating condenser pressure High pressure safety LCD display built in Low pressure safety Night optimization P0 optimization
Product group	Compressor/condenser control
Product Language	Croatian Czech English German Hungarian Italian Polish Portuguese Russian Serbian Spanish Turkish
Product Name Description	Pack controller
Quantity per packing format	16 pc
REACH Candidate List substances	No
Serviceable	No
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
Supply voltage [V] DC	24 V
Type	AK-PC 351
Type designation	AK-PC 351
UK RoHS compliance	Out of scope
