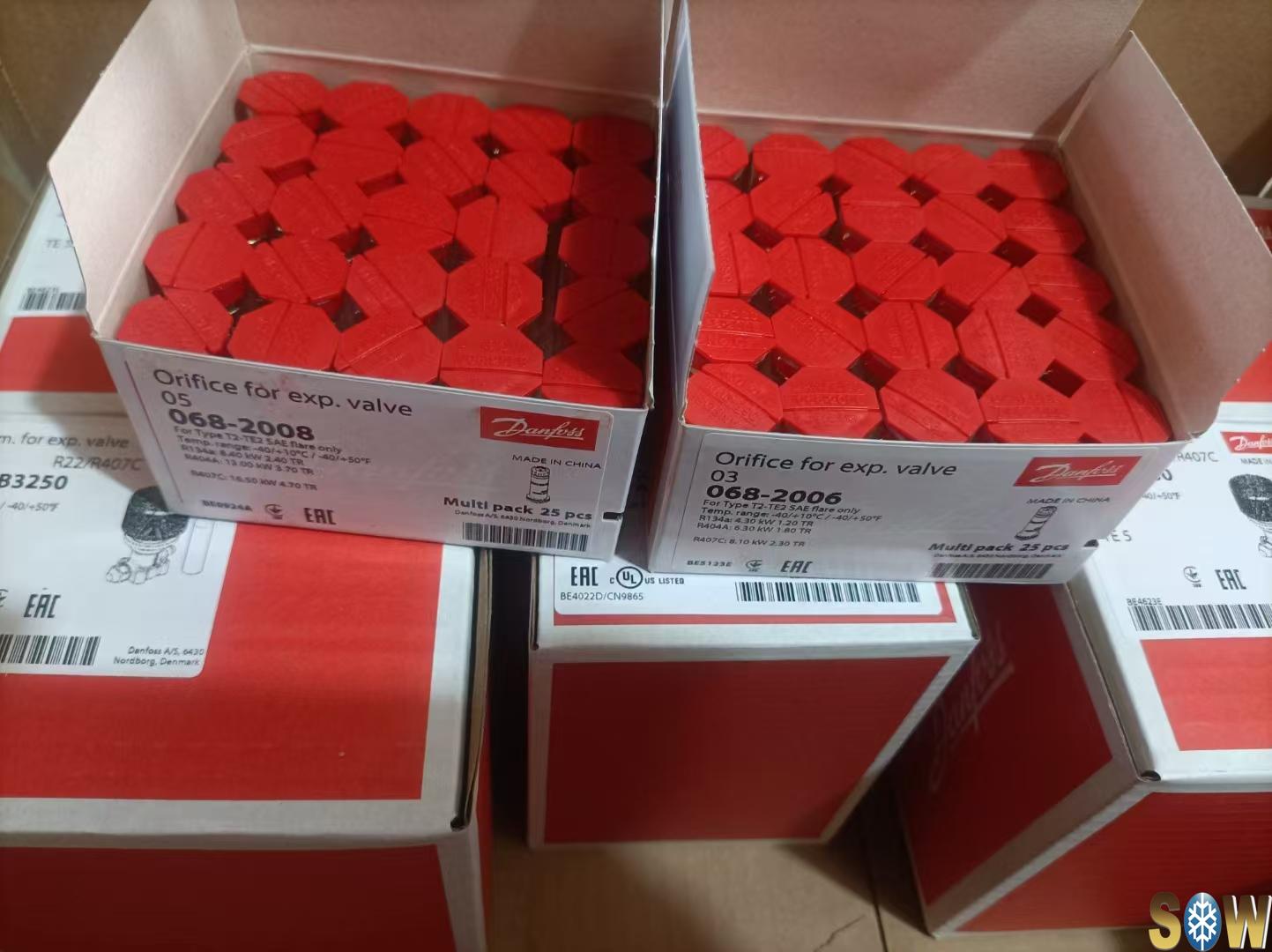

Name:	068-2008 Danfoss Orifice for expansion valve
Brand:	Danfoss
Model No.:	Used for product T 2 TE 2
Part No.:	068-2008
Country of origion:	China
G.W:	18g/pc
Temperature range [°C]:	-40 - 10
Orifice size:	05
Product Name Description:	Orifice for expansion valve
Quantity per packing format:	25pcs/pc
Packing format:	Multi pack

Product Description

Part No.	Type	Design	Orifice	R22Nominal cooling capacity. Operating temperature range N [kW]	R407CNominal cooling capacity. Operating temperature range N [kW]	R134aNominal cooling capacity. Operating temperature range N [kW]	R404ANominal cooling capacity. Operating temperature range N [kW]	R22Nominal cooling capacity. Operating temperature range B [kW]	R404ANominal cooling capacity. Operating temperature range B [kW]
068-2002	Orifice	-	0x	0.90 kW	0.92 kW	0.68 kW	0.64 kW	0.87 kW	0.62 kW
068-2003	Orifice	-	0	1.80 kW	1.80 kW	1.20 kW	1.30 kW	1.30 kW	1.00 kW
068-2006	Orifice	-	3	8.00 kW	8.10 kW	4.30 kW	6.30 kW	3.90 kW	3.20 kW
068-2007	Orifice	-	4	12.10 kW	12.40 kW	6.40 kW	9.90 kW	5.60 kW	4.50 kW
068-2008	Orifice	-	5	16.70 kW	16.50 kW	8.40 kW	13.00 kW	7.30 kW	5.90 kW
068-2009	Orifice	-	6	19.70 kW	19.70 kW	10.10 kW	15.50 kW	8.70 kW	6.90 kW
068-2010	Orifice	-	1	3.50 kW	3.50 kW	2.10 kW	2.60 kW	2.00 kW	1.60 kW
068-2015	Orifice	-	2	4.70 kW	4.80 kW	2.60 kW	3.70 kW	2.30 kW	1.90 kW
068-2069	Orifice	Welding adapter only	0x	0.90 kW	0.92 kW	0.68 kW	0.64 kW	0.87 kW	0.62 kW
068-2070	Orifice	Welding adapter only	0	1.80 kW	1.80 kW	1.20 kW	1.30 kW	1.30 kW	1.00 kW
068-2071	Orifice	Welding adapter only	1	3.50 kW	3.50 kW	2.10 kW	2.60 kW	2.00 kW	1.60 kW
068-2072	Orifice	Welding adapter only	2	4.70 kW	4.80 kW	2.60 kW	3.70 kW	2.30 kW	1.90 kW
068-2073	Orifice	Welding adapter only	3	8.00 kW	8.10 kW	4.30 kW	6.30 kW	3.90 kW	3.20 kW
068-2074	Orifice	Welding adapter only	4	12.10 kW	12.40 kW	6.40 kW	9.90 kW	5.60 kW	4.50 kW
068-2075	Orifice	Welding adapter only	5	16.70 kW	16.50 kW	8.40 kW	13.00 kW	7.30 kW	5.90 kW
068-2076	Orifice	Welding adapter only	6	19.70 kW	19.70 kW	10.10 kW	15.50 kW	8.70 kW	6.90 kW
068-2090	Orifice	Welding adapter only	0	1.80 kW	1.80 kW	1.20 kW	1.30 kW	1.30 kW	1.00 kW
068-2091	Orifice	Welding adapter only	1	3.50 kW	3.50 kW	2.10 kW	2.60 kW	2.00 kW	1.60 kW
068-2092	Orifice	Welding adapter only	2	4.70 kW	4.80 kW	2.60 kW	3.70 kW	2.30 kW	1.90 kW
068-2093	Orifice	Welding adapter only	3	8.00 kW	8.10 kW	4.30 kW	6.30 kW	3.90 kW	3.20 kW
068-2094	Orifice	Welding adapter only	4	12.10 kW	12.40 kW	6.40 kW	9.90 kW	5.60 kW	4.50 kW
068-2095	Orifice	Welding adapter only	5	16.70 kW	16.50 kW	8.40 kW	13.00 kW	7.30 kW	5.90 kW
068-2096	Orifice	Welding adapter only	6	19.70 kW	19.70 kW	10.10 kW	15.50 kW	8.70 kW	6.90 kW

Product details

Gross weight	0.018 Kilogram
Net weight	0.013 Kilogram

Volume	0.017 Liter
EAN	5702422020400

Approval	EAC LLC CDC TYSK
China RoHS compliance	Out of scope
Design	SAE flare only
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(c)
Fluid Group	1
In scope of WEEE and contain batteries	No
Orifice size	05
Packing format	Multi pack
Parts Program name	T2/TE2
PED category	Art. 4, par. 3
Product accessories	TXV accessories
Product group	Expansion valves
Product Name Description	Orifice for expansion valve
Quantity per packing format	25 pc
Rated cap. cond. Range N [IMP]	tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated cap. cond. Range N [SI]	tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
Rated cap. R134a, Range N [kW]	8.4 kW
Rated cap. R134a, Range N [TR]	2.4 TR
Rated cap. R22, Range B [kW]	7.3 kW
Rated cap. R22, Range B [TR]	2.1 TR
Rated cap. R22, Range N [kW]	16.7 kW
Rated cap. R22, Range N [TR]	4.8 TR
Rated cap. R404A, Range B [kW]	5.9 kW

Rated cap. R404A, Range B [TR]	1.7 TR
Rated cap. R404A, Range N [kW]	13 kW
Rated cap. R404A, Range N [TR]	3.7 TR
Rated cap. R407C, Range N [kW]	16.5 kW
Rated cap. R407C, Range N [TR]	4.7 TR
Rated cap. R507, Range B [kW]	5.9 kW
Rated cap. R507, Range B [TR]	1.7 TR
Rated cap. R507, Range N [kW]	13 kW
Rated cap. R507, Range N [TR]	3.7 TR
Rated cap. R513A, Range N [kW]	6.9 kW
Rated cap. R513A, Range N [TR]	2 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a/R513A R22/R407C R23 R236fa R404A/R507A R407A R407C R448A R449A R452A
SCIP dossier no.	c164ed45-f10d-4d73-9eae-355ccb479f4b
SCIP dossier product name	T2 /TE2 - Thermostatic Expansion Valve
Serviceable	No
Temperature range [°C] [max]	10 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	50 °F
Temperature range [°F] [min]	-40 °F
Type	ORF
UA address	UA_2L.png
UK RoHS compliance	Out of scope
Used for product	T 2 TE 2
