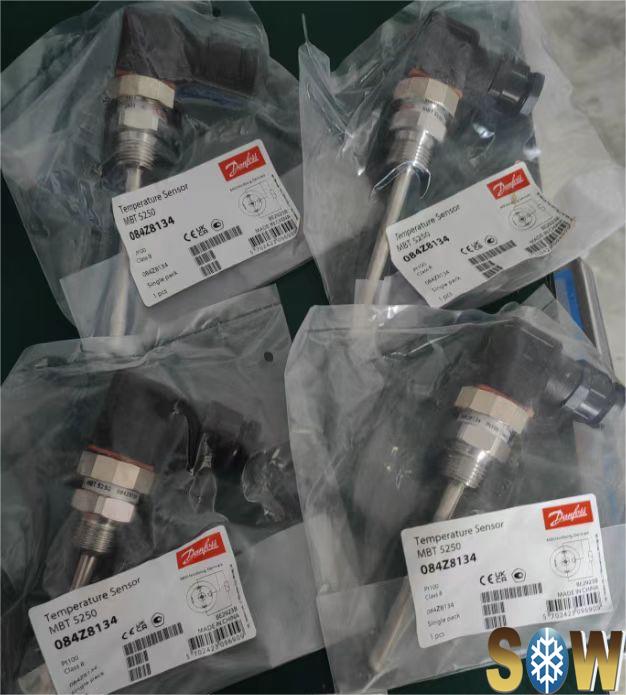

Name:	Danfoss Temperature sensor, MBT 5250, 100 mm, G,1/2 084Z8134
Brand:	Danfoss
Model:	MBT5250
Part No.:	084Z8134
Electrical connection size:	Pg 13.5
Electrical connection:	Angular connector
Protection tube material:	AISI 316 Ti
Sensor elem. resistance [Ohm]:	100
Sensor element type:	Pt
Temperature range [°C]:	-50 - 200
Product Name Description:	Temperature sensor
G.W:	0.164kgs/pc
Protection tube diameter [in]:	0.31 in
Quantity per packing format:	20 pcs

Product Description

Danfoss Temperature sensor, MBT 5250, 100 mm, G,1/2 084Z8134

Heavy-duty temperature sensors, MBT 3250, 3252, 5250 & MBT 5252

In the low-temperature version (-50 to 200 °C), the measuring insert is based on a silicone cable, which makes the sensor very resistant to vibrations.

The MBT 3250 and 5250 temperature sensors come with interchangeable measuring inserts equipped with EN 175301-803-A, Pg 9 as standard.

The MBT 3252 and 5252 sensors are equipped with a B-head as standard but can also be delivered with B-mini head on request. If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the MBT 5252 sensor.

Features and benefits

Gaseous or liquid media, e.g., air, gas, vapor, water, or oil

Pt 100 or Pt 1000 sensing element

Can be used with 2- or 3-wire connections

Shock and vibration resistant

Product details

Gross weight	0.164 Kilogram
Net weight	0.16 Kilogram

Volume	0.27 Liter
EAN	5702423096909

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
China RoHS compliance	Yes exceed limitations
Connection material	Stainless steel
Connection standard	ISO 228
Connection type	G
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 13.5
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(b), 6(c), 7(a), 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	3.94 in
Insertion length [mm]	100 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	1/2

Process connection standard	ISO 228-1-A
Process connection type	G
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.31 in
Protection tube diameter [mm]	8 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	1741c763-fa54-4cb9-973c-52e51e4079b9
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Exchangeable
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 5250
Type designation	MBT 5250-0000-100-320
UK RoHS compliance	Out of scope
Wires [pcs]	2 pc
