Location:Index--->Product Center >> Bitzer Compressors >> BITZER CSH7563-80-40P Semi-hermetic Screw Compressor

Name:	BITZER CSH7563-80-40P Semi-hermetic Screw Compressor
Brand:	Bitzer
Model:	CSH7563-80-40P
Lubrication Style:	Lubricated
Cooling System:	Air Cooling
Power Source:	Diesel Engine
Installation Type:	Stationary Type
Structure Type:	Semi-Closed Type
Cylinder Position:	Horizontal

Product Description

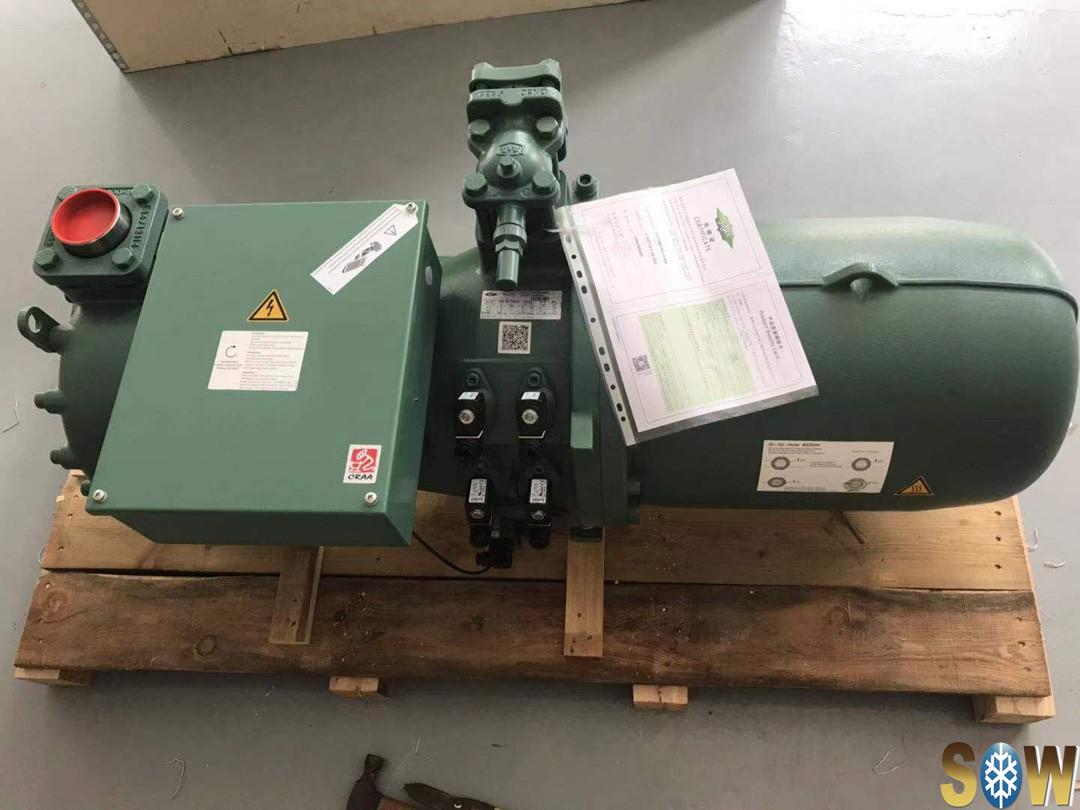

BITZER CSH7563-80-40P Semi-hermetic Screw Compressor

Model NO.	CSH7563-80-40P
Type	Single Screw Compressor
Oil Charge	4L
Net Weight	183kg
Refrigerant	R404
Transport Package	Wooden Package
Specification	80X50X66 cm
Trademark	Original
Origin	China
HS Code	8414301900

CSHP65 - CSHP95 Series

The CSHP compact screw compressor series is designed for use with the naturally low Global Warming Potential (GWP) hydrocarbon refrigerants propane (R290) and propylene (R1270). The design of the CSHP series differs in terms of electrical equipment, safety features, oil charging and internal lubrication systems compared to the standard CSH. Since hydrocarbon refrigerants are flammable and belong to safety class A3, the CSHP series is only suitable for original equipment system suppliers experienced in handling flammable refrigerants.

Refrigerants

Natural low Global Warming Potential (GWP) hydrocarbon refrigerants

R290, R1270, Flammable A3

Product range：18 models from 137 to 1015 m³/h at 50 Hz

Certifications: CE, EAC

General application areas

Air conditioning coolers

With or without heat recovery

Reversible air conditioning chillers for cooling and heating

Process coolers for high/medium/low temperature applications

With or without heat recovery

Heat pumps
