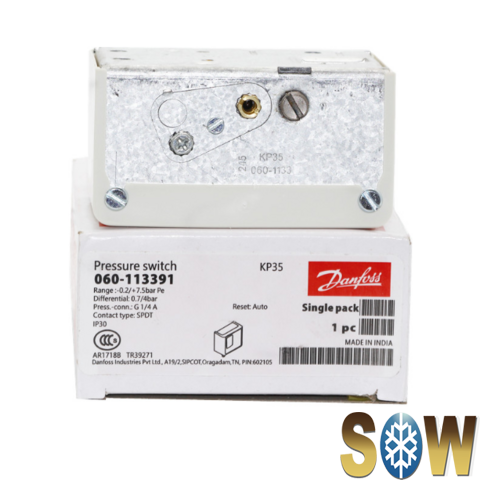

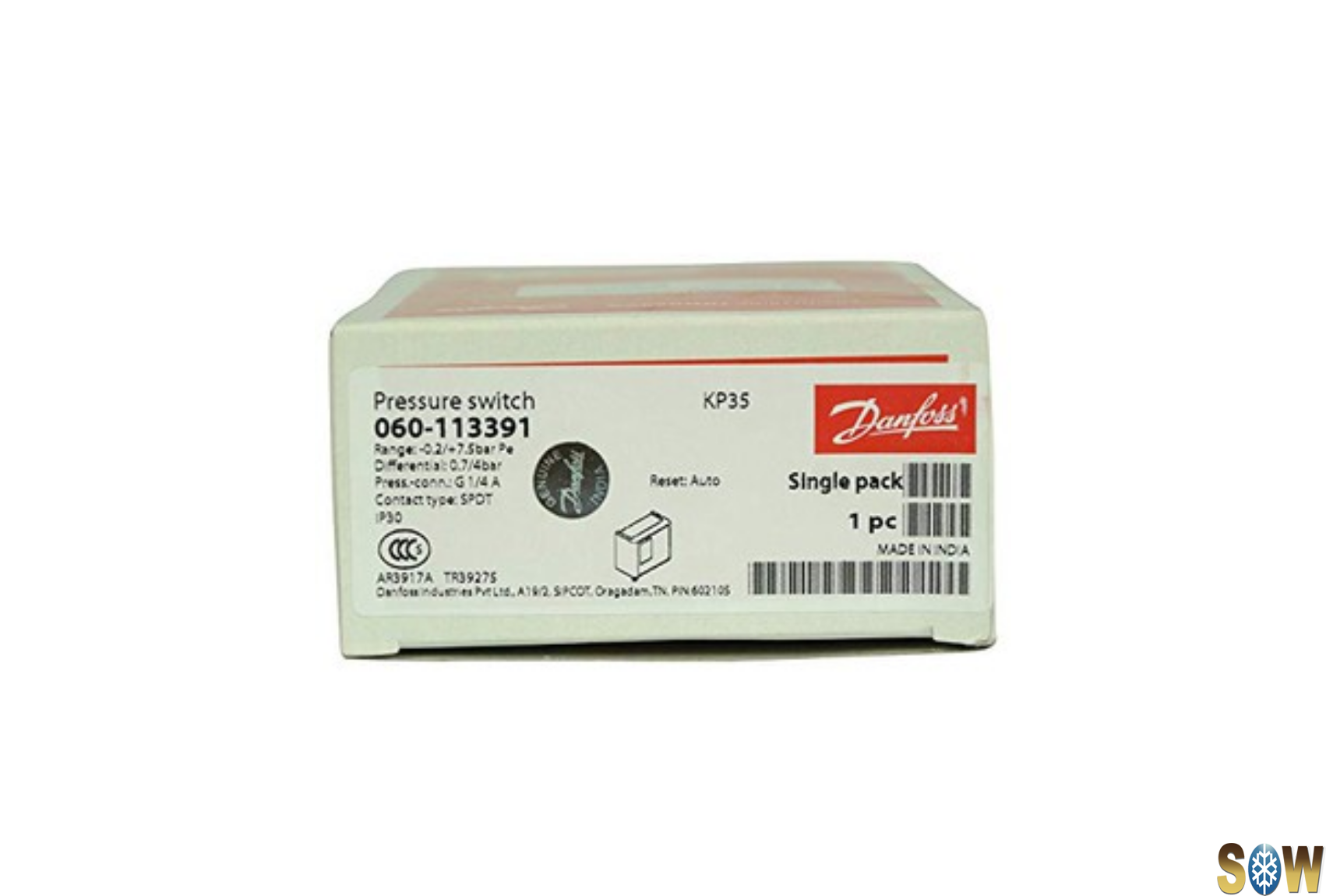

Name:	Danfoss 060-113391 Reset function: Auto, Contact function: SPDT, Regulation range: 6 inHg - 108 ps
Brand:	Danfoss
Model:	KPS35
Part No.:	060-113391
County of origion:	India
G.W:	0.33kgs/pc

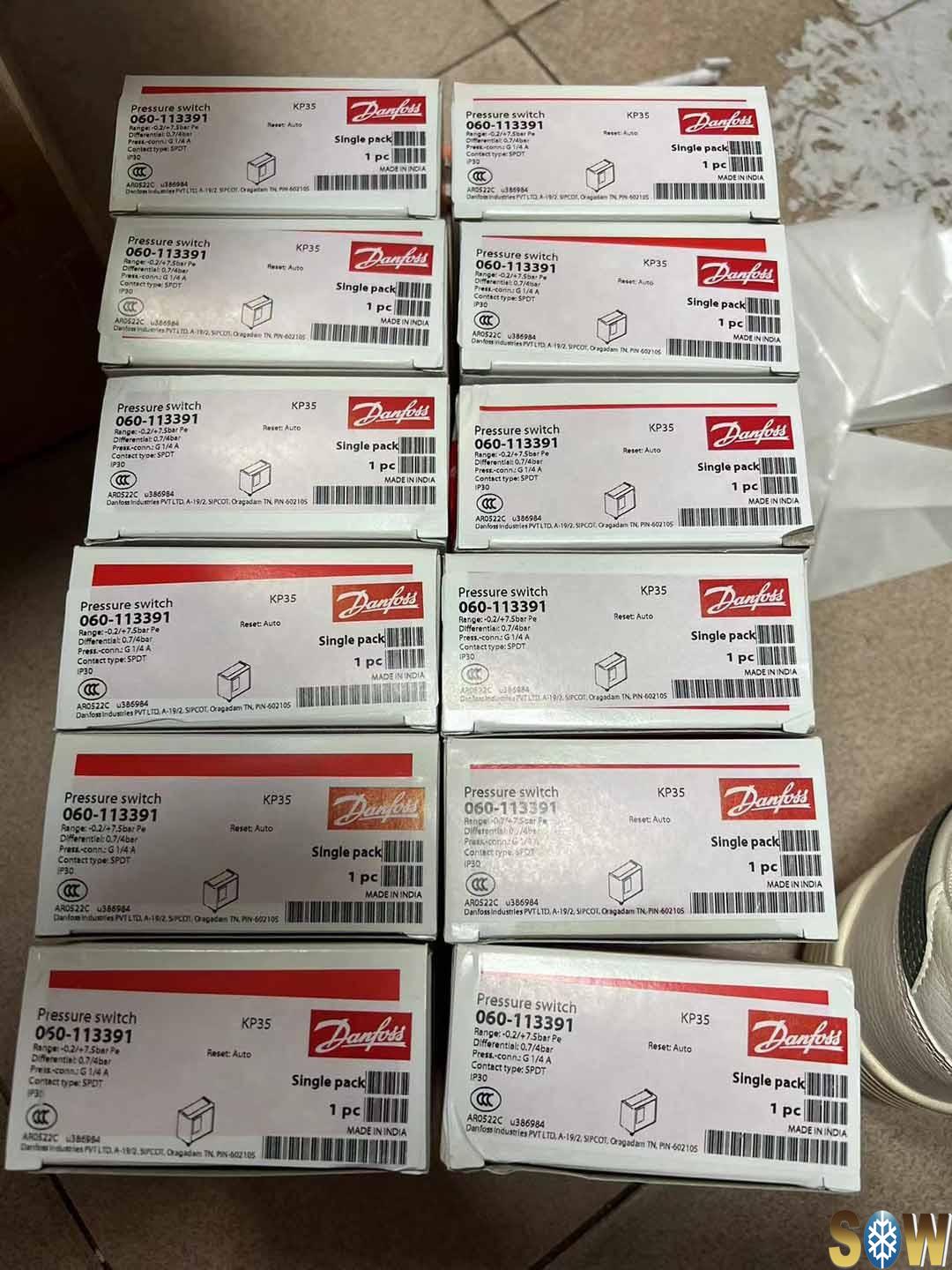

Quantity per packing format:	36 pcs
Regulation range [bar] Pe:	-0.20 - 7.50
Differential [bar]:	0.70 - 4.00
Reset function:	Auto
Max. Working Pressure [bar]:	17.0
Enclosure rating IP:	IP30
Pressure connection size:	1/4
Pressure connection type:	G

Danfoss 060-113391

Reset function: Auto, Contact function: SPDT, Regulation range: 6 inHg - 108 ps

Hits: 【Print】

Tags:583 587 589 ZB58KQE-TFD-551

Online Service

Hi,what can I do do for you ?

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	149 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CCC CE LVD PZH RINA RMRS RoHS China UKCA c UL us UL353, CS C22.2 c UL us UL873, CS C22.2
China RoHS compliance	Yes
Contact function	SPDT
Contact rating	AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V
Differential [bar] [max]	4 bar
Differential [bar] [min]	0.7 bar
Differential [psi] [max]	58 psi
Differential [psi] [min]	10 psi
Electrical connection	Rubber cable gland
Electrical connection size	6-14 mm
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
EU RoHS compliance	Yes
EU RoHS exemption clause	No
In scope of WEEE and contain batteries	No
Max. test pressure [bar] Pe	22 bar
Max. test pressure [psig]	319 psig

Max. Working Pressure [bar]	17 bar
Max. Working Pressure [psig]	245 psig
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Male
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Pressure Switch
Product group	Switches and thermostats
Product Name Description	Pressure switch
Quantity per packing format	36 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Regulation range	6 inHg - 108 psig
Regulation range [bar] Pe [max]	7.5 bar
Regulation range [bar] Pe [min]	-0.2 bar
Reset function	Auto
SCIP dossier no.	b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name	KP/KPI pressure switch
Serviceable	No
Type	KP35
UK RoHS compliance	Yes
UL approval file name	E31024 MH27572
