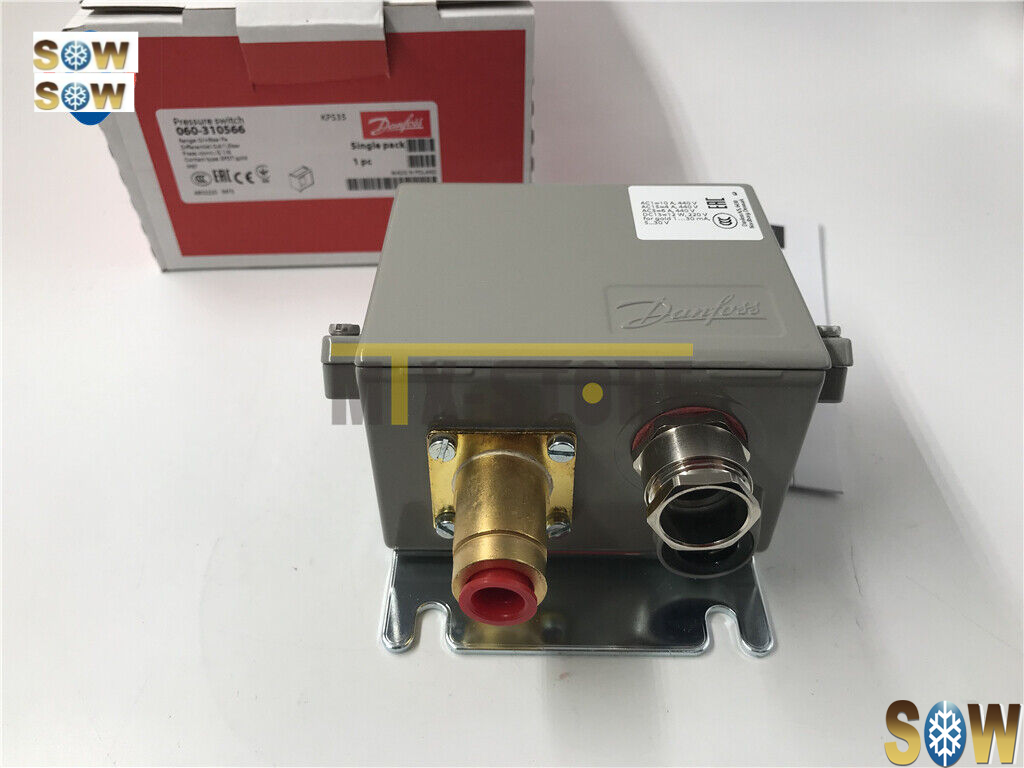

Name:	DANFOSS - 060-310566 KPS35 HEAVY DUTY PRESSURE SWITCH 060310566
Brand:	Danfoss
Model:	KPS35
Part No.:	060-310566
County of origion:	Poland
G.W:	1.018kgs/pc
Max. Working Pressure [bar]:	12.0
Enclosure rating IP:	IP67
Pressure connection size:	1/4
Pressure connection type:	G
Reset function:	Auto
Differential [bar]:	0.40 - 1.50
Regulation range [bar] Pe:	0.00 - 8.00
Product group:	Switches and thermostats

DANFOSS - 060-310566 KPS35 HEAVY DUTY PRESSURE SWITCH 060310566

Product details

Gross weight	1.018 Kilogram
Net weight	0.92 Kilogram

Volume	2.517 Liter
EAN	5702423146826

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA UL
China RoHS compliance	Yes
Contact function	SPDT gold
Contact rating	AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR max. 50 A for gold 1…30 mA, 5...30 V
Differential [bar] [max]	1.5 bar
Differential [bar] [min]	0.4 bar
Differential [psi] [max]	22 psi
Differential [psi] [min]	6 psi
Electrical conn. comments	Metal cable gland
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
Identical product	060-411166
In scope of WEEE and contain batteries	No
Max. test pressure [bar] Pe	12 bar
Max. test pressure [psig]	174 psig

Max. Working Pressure [bar]	12 bar
Max. Working Pressure [psig]	174 psig
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Pressure Switch
Product group	Switches and thermostats
Product Name Description	Pressure switch
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]	8 bar
Regulation range [bar] Pe [min]	0 bar
Regulation range [MPa] Pe [max]	0.8 MPa
Regulation range [MPa] Pe [min]	0 MPa
Regulation range [psig] Pe [max]	116 psig
Regulation range [psig] Pe [min]	0 psig
Reset function	Auto
SCIP dossier no.	84be8326-1b95-4f87-afb0-90ae08b65f06
Serviceable	No
Type	KPS35
UK RoHS compliance	Out of scope
UL approval file name	E73170
