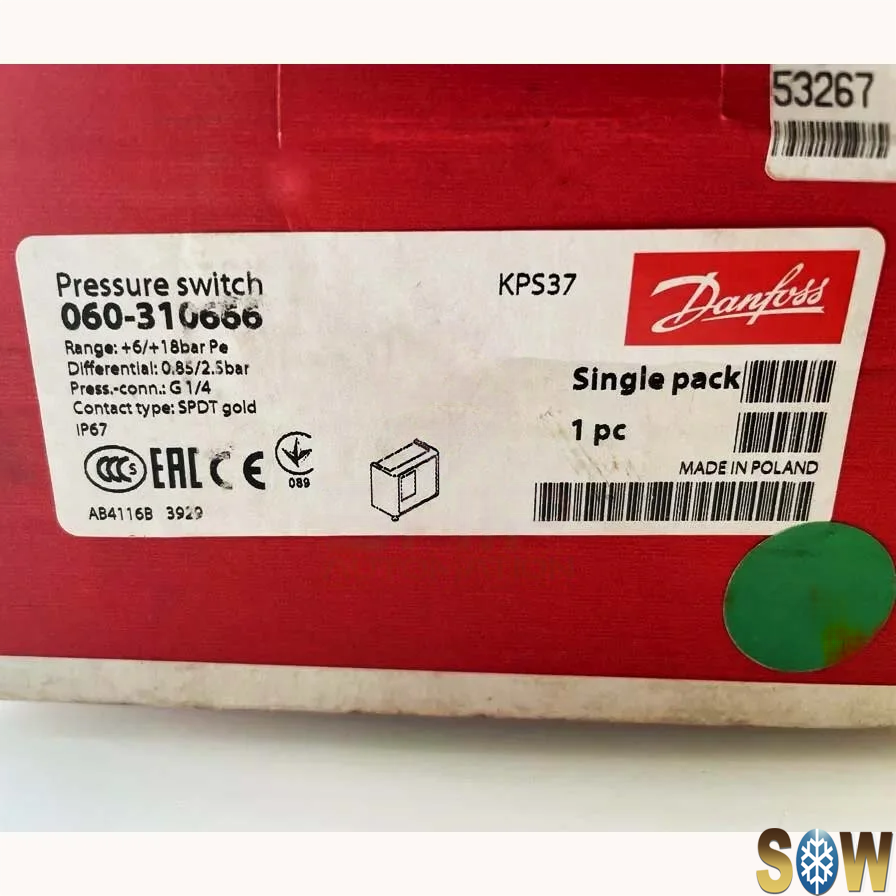

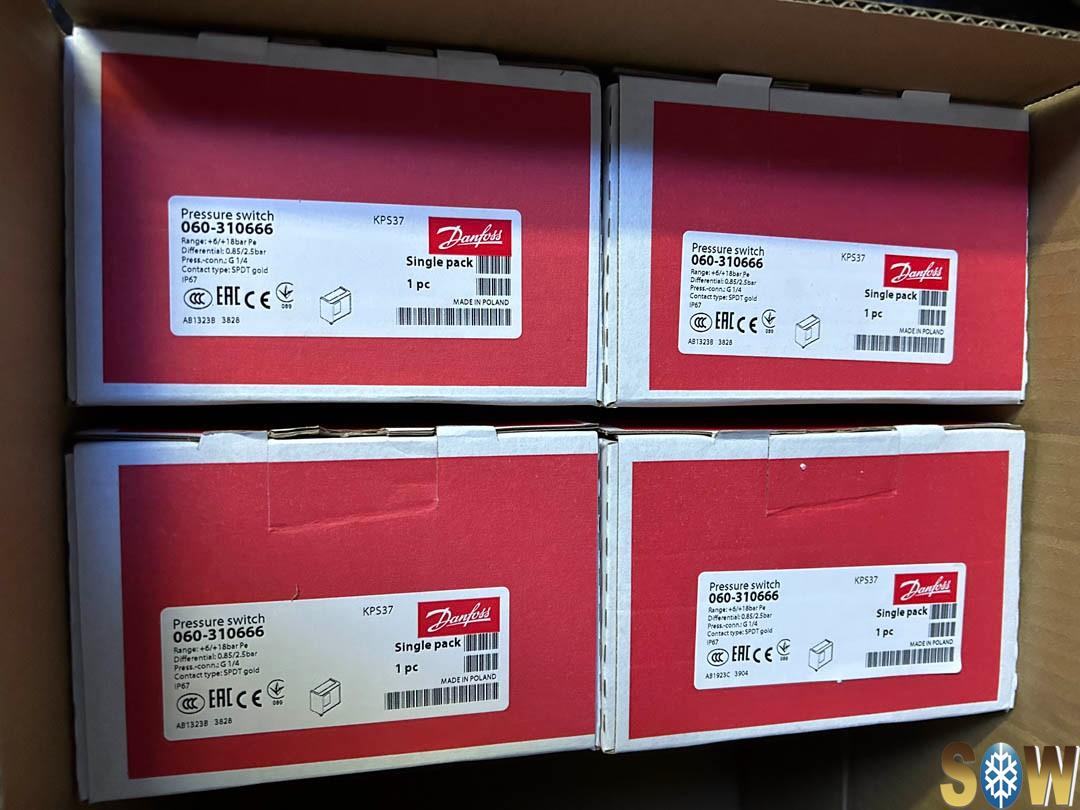

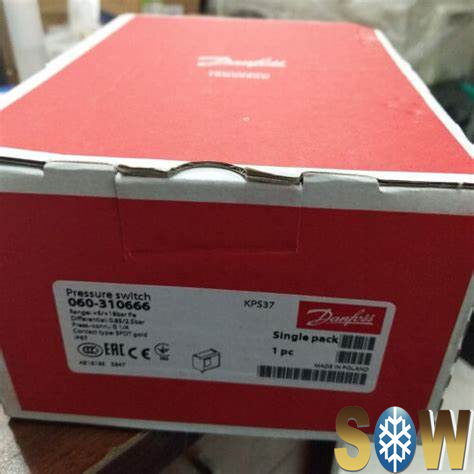

Name:	DANFOSS - 060-310666 KPS37 PRESSURE SWITCH AND THERMOSTAT, 10-35 BAR RANGE, 1/4"G CONNECTION 060310666
Brand:	Danfoss
Model:	KPS37
Part No.:	060-310666
County of origion:	Poland
G.W:	1.048kgs
Max. Working Pressure [bar]:	22.0
Pressure Male/Female:	Female
Regulation range [bar] Pe:	6.00 - 18.00
Pressure connection type:	G
Enclosure rating IP:	IP67
Pressure connection size:	1/4
Differential [bar]:	0.85 - 2.50
Reset function:	Auto

DANFOSS - 060-310666 KPS37 PRESSURE SWITCH AND THERMOSTAT, 10-35 BAR RANGE, 1/4"G CONNECTION 060-310666

Product details

Gross weight	1.048 Kilogram
Net weight	0.951 Kilogram

Volume	2.439 Liter
EAN	5702423146833

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA UL
China RoHS compliance	Yes
Contact function	SPDT gold
Contact rating	AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR max. 50 A for gold 1…30 mA, 5...30 V
Differential [bar] [max]	2.5 bar
Differential [bar] [min]	0.85 bar
Differential [psi] [max]	36 psi
Differential [psi] [min]	12 psi
Electrical conn. comments	Metal cable gland
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
In scope of WEEE and contain batteries	No
Max. test pressure [bar] Pe	27 bar
Max. test pressure [psig]	392 psig
Max. Working Pressure [bar]	22 bar
