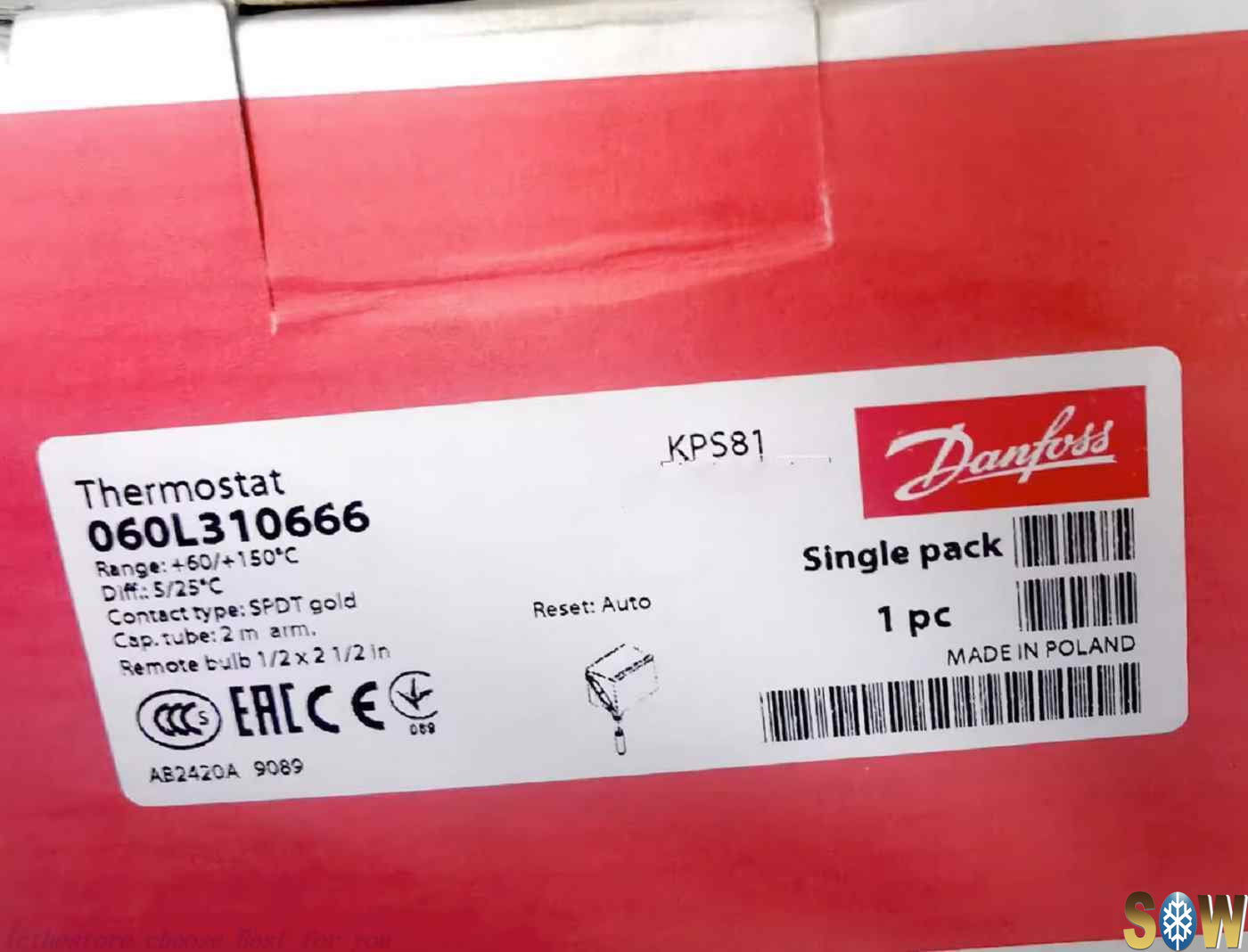

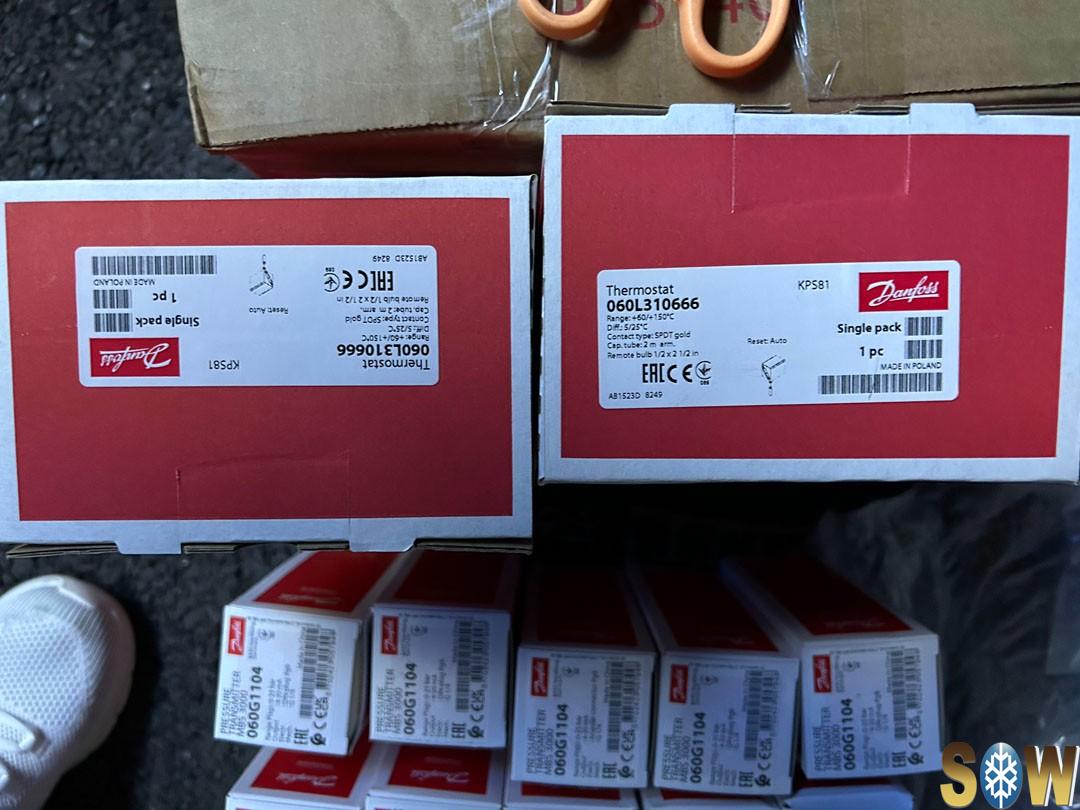

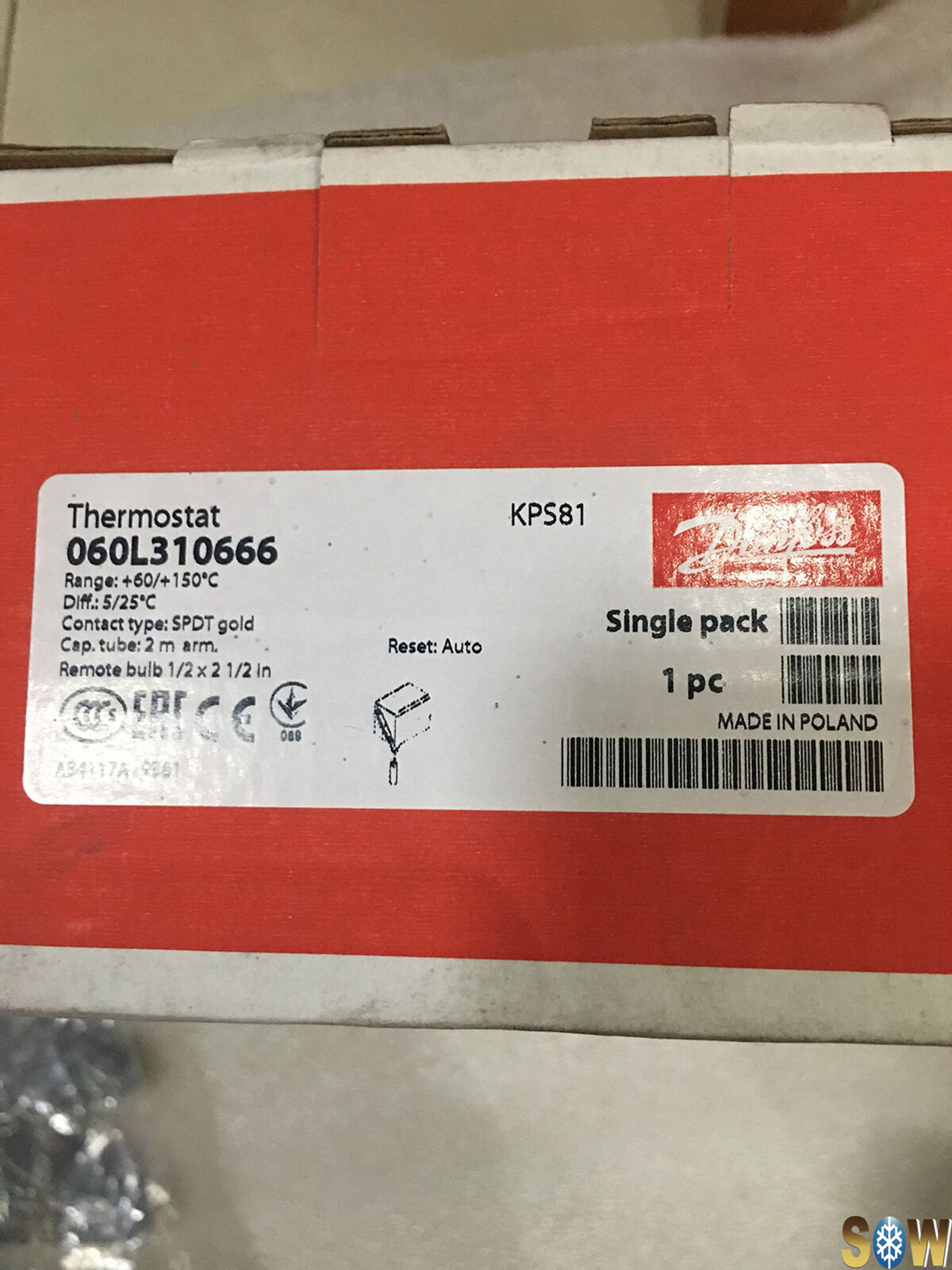

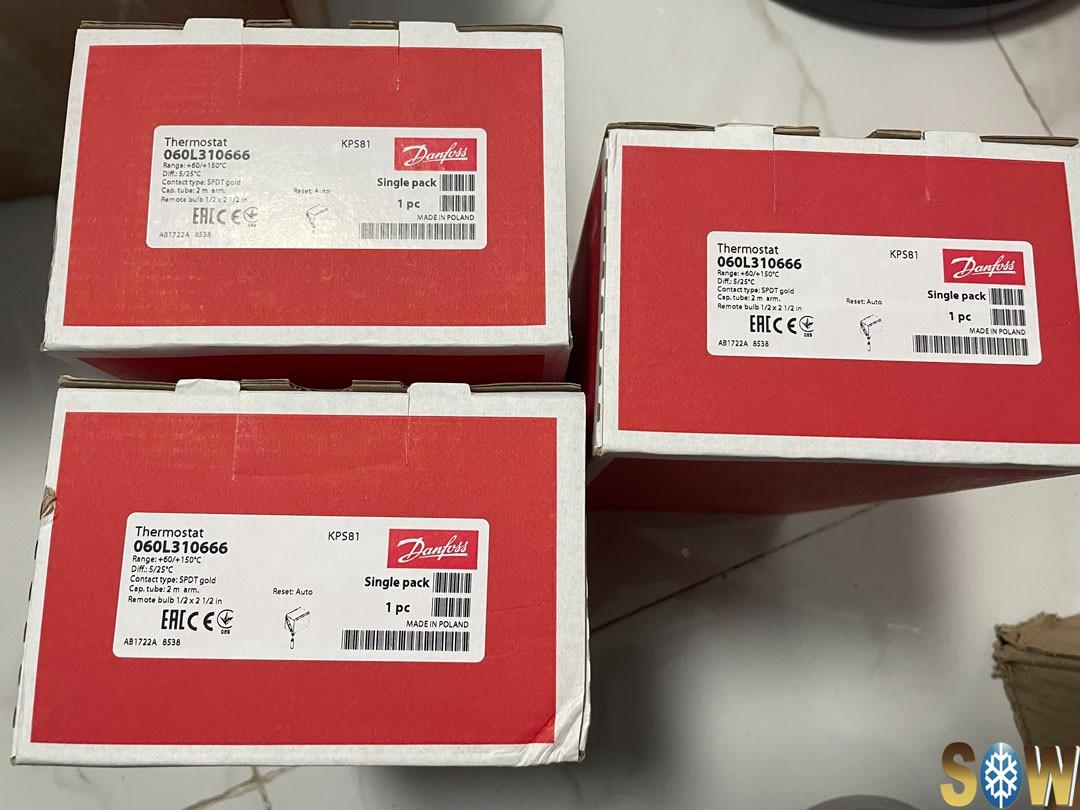

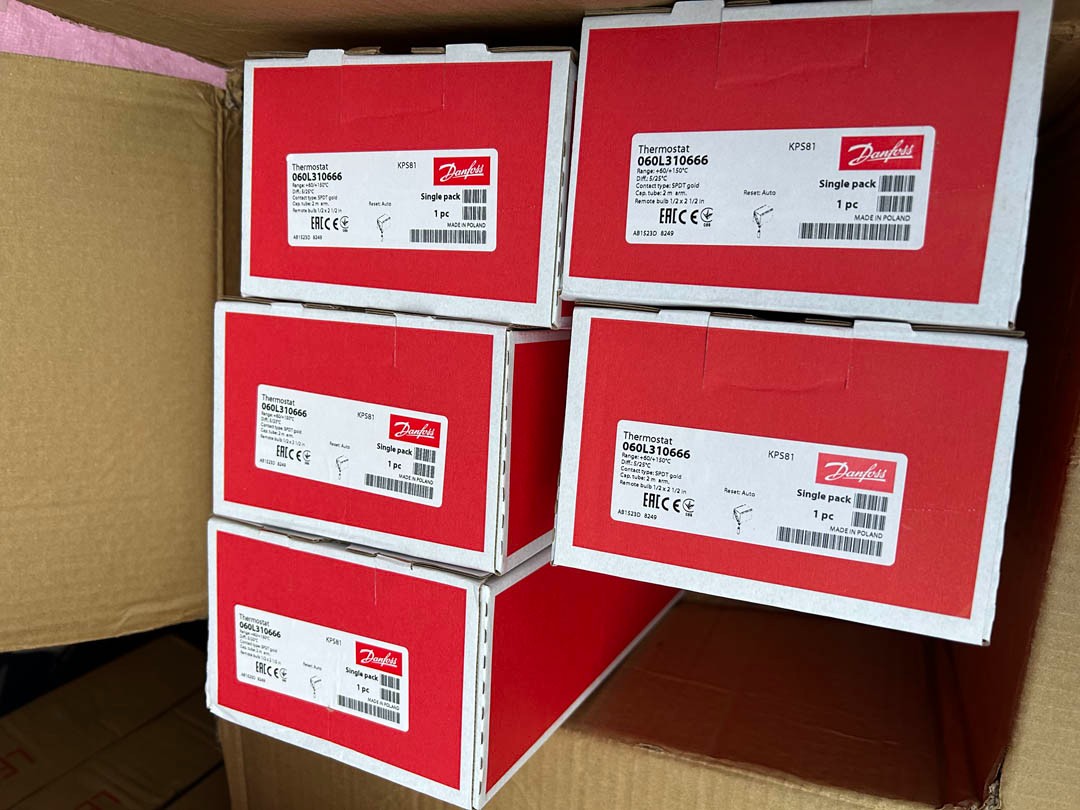

Danfoss 060L310666 Temperature Switch, type KPS81; 140-302F, 9.0-45F Differential, Armored Sensor

Product details

Gross weight	1.184 Kilogram
Net weight	1.134 Kilogram

Volume	3.581 Liter
EAN	5702423147601

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ABS BV CCC CCS CE DNV EAC GL LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA UL
Armoring	Yes
Cap. tube length fraction [in]	78 3/4 in
Capillary tube length [mm]	2000 mm
Charge type	Adsorption
China RoHS compliance	Yes
Connection for pocket or hose	M 18 x 1.5
Contact function	SPDT gold
Contact rating	AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V for gold 1…30mA, 5...30V
Diff. @ Min. range setting [K] [max]	25 K
Diff. @ Min. range setting [K] [min]	5 K
Diff. @ Min. range setting[°C] [max]	25 °C
Diff. @ Min. range setting[°C] [min]	5 °C
Differential type	Adjustable
Electrical conn. comments	Metal cable gland
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430
Electrical spec. standard	EN 60947-5
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP67
Equipment	Armored cap. tube

EU RoHS compliance	Out of scope
EU RoHS exemption clause	6(a)
In scope of WEEE and contain batteries	No
Max. sensor temperature [°C]	250 °C
Max. sensor temperature [°F]	482 °F
Other RoHS documentation	Saudi Arabia RoHS
Packing format	Multi pack
Product accessories	Switches accessories
Product description	Thermostat
Product group	Switches and thermostats
Product Name Description	Thermostat
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Reset function	Auto
SCIP dossier no.	84be8326-1b95-4f87-afb0-90ae08b65f06
Sensor pocket length min. [in]	3 in
Sensor pocket length min. [mm]	75 mm
Sensor size (Ø x L) [in]	1/2 x 2 1/2 in
Sensor size (Ø x L) [mm]	13 x 63 mm
Sensor type	Remote bulb
Serviceable	No
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	60 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	140 °F
Type	KPS81
UK RoHS compliance	Out of scope
UL approval file name	E73170
