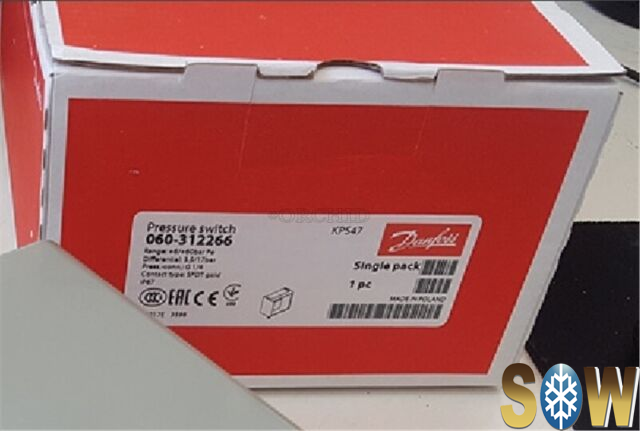

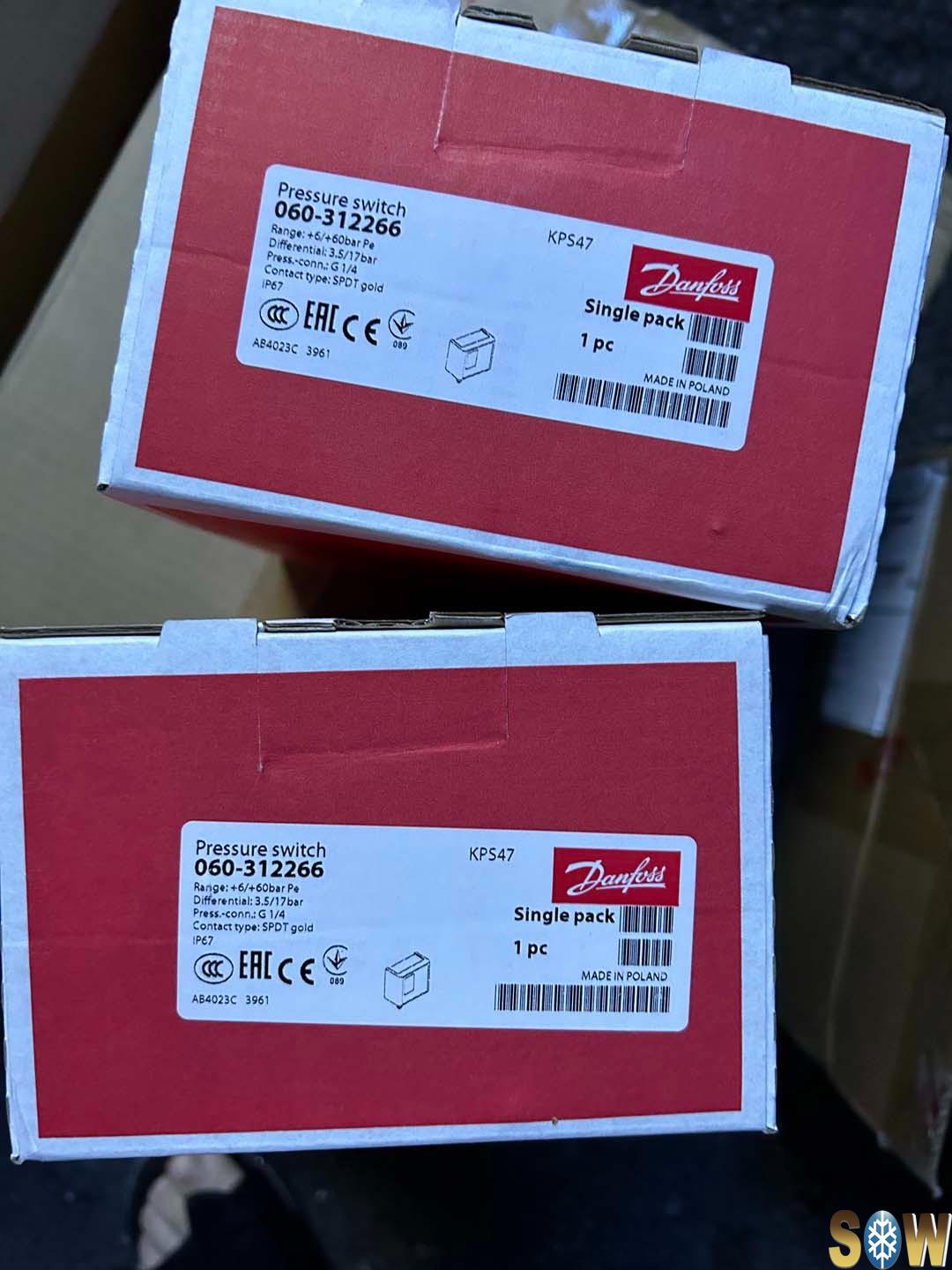

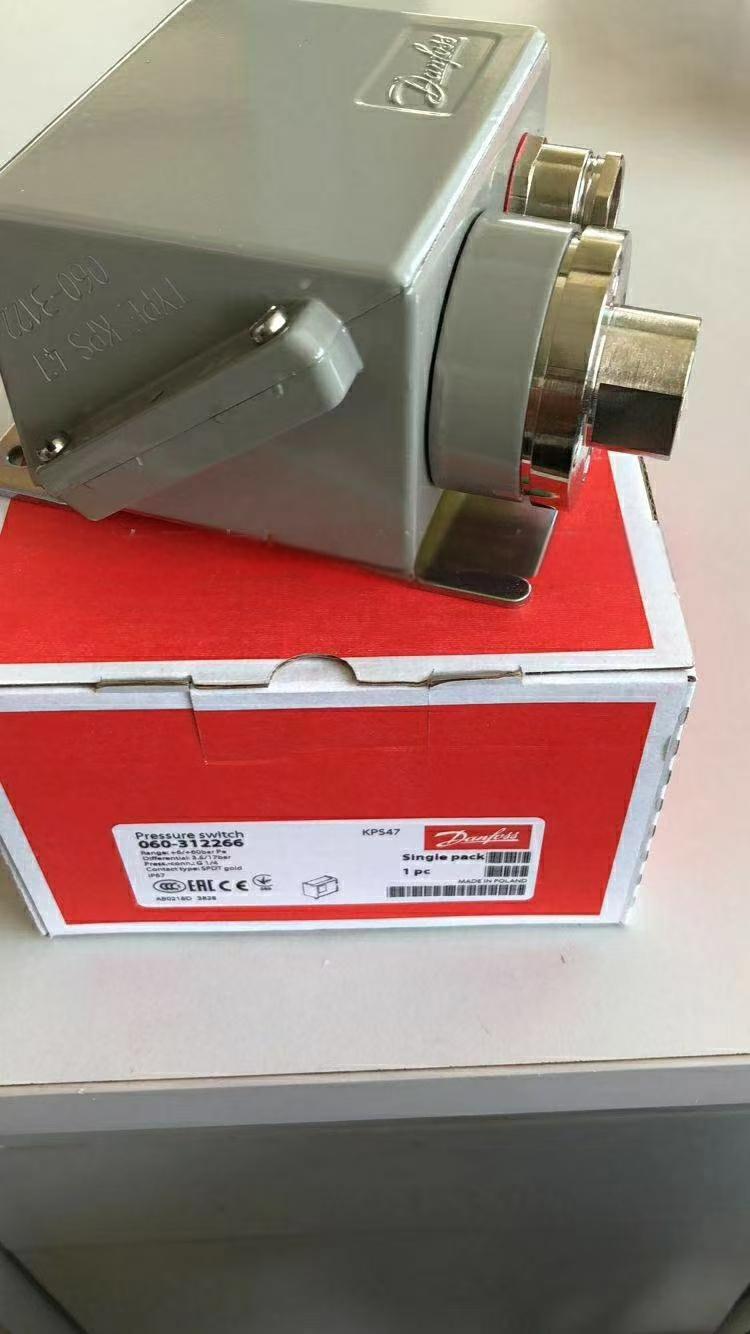

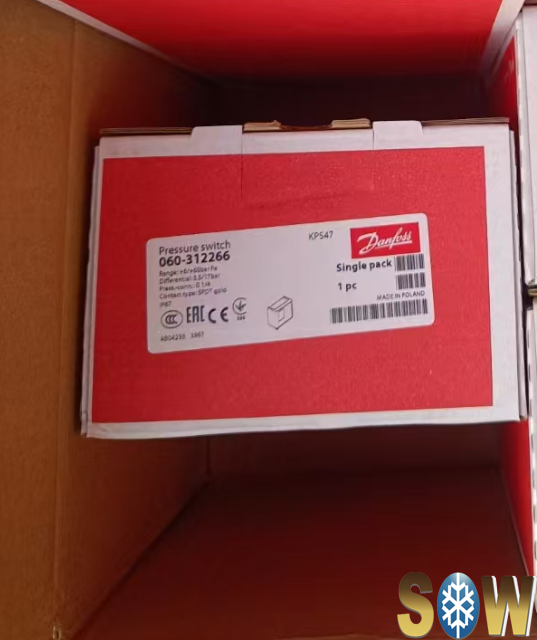

Danfoss 060-312266

Pressure Switch, KPS47; 87-870psig, 51-247 psig Diff, -13-212F Media Temp, G 1/4

Product details

Gross weight	1.24 Kilogram
Net weight	1.125 Kilogram

Volume	2.43 Liter
EAN	5702423146956

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-25 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-13 °F
Approval	ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA UL
Burst pressure [bar]	240 bar
China RoHS compliance	Yes
Contact function	SPDT gold
Contact rating	AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR max. 50 A for gold 1…30 mA, 5...30 V
Differential [bar] [max]	17 bar
Differential [bar] [min]	3.5 bar
Differential [psi] [max]	247 psi
Differential [psi] [min]	51 psi
Electrical conn. comments	Metal cable gland
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
EU RoHS exemption clause	6(a)
In scope of WEEE and contain batteries	No
Max. test pressure [bar] Pe	180 bar

Max. test pressure [psig]	2611 psig
Max. Working Pressure [bar]	120 bar
Max. Working Pressure [psig]	1740 psig
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure sensing element	Diaphragm
Product accessories	Switches accessories
Product description	Pressure Switch
Product group	Switches and thermostats
Product Name Description	Pressure switch
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]	60 bar
Regulation range [bar] Pe [min]	6 bar
Regulation range [psig] Pe [max]	870 psig
Regulation range [psig] Pe [min]	87 psig
Reset function	Auto
SCIP dossier no.	84be8326-1b95-4f87-afb0-90ae08b65f06
Serviceable	No
Type	KPS47
UK RoHS compliance	Out of scope
UL approval file name	E73170
