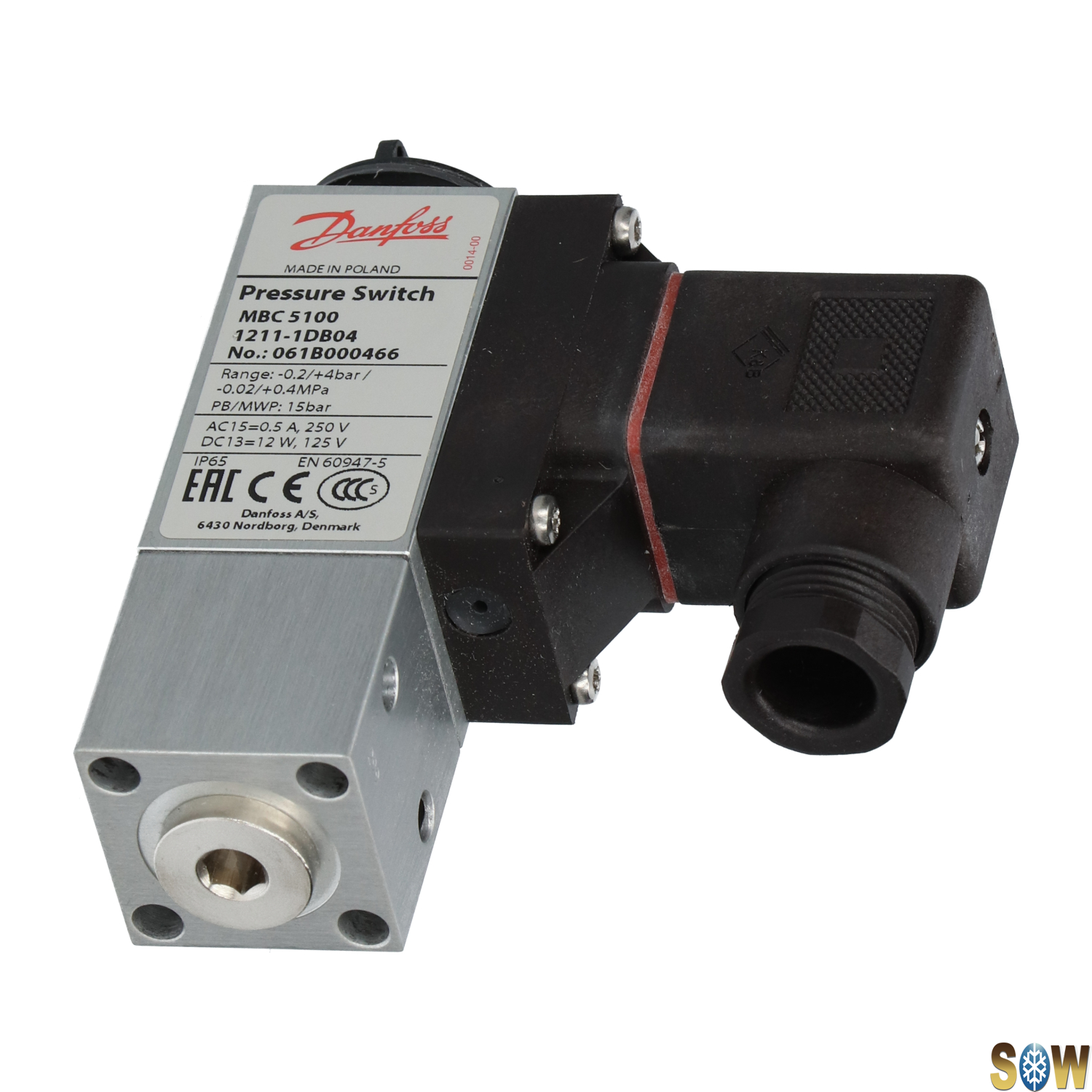

Name:	061B000466 MBC 5100-1211-1DB04 Danfoss Pressure Control -0.2 to 4 bar
Brand:	Danfoss
Model:	MBC5100
Part No.:	061B000466
County of origion:	Poland
G.W:	0.296kg
Regulating Range:	-0.2 to 4 bar
Differential MIN Range:	0.3 bar
Differential MAX Range:	0.45 bar
Max. Working Pressure:	15 bar
Connection Size:	Flange
Contact Function:	SPDT
Electrical Connection:	Pg 11 plug (DIN 43650 A)
Reset:	Automatic

061B000466 MBC 5100-1211-1DB04 Danfoss Pressure Control -0.2 to 4 bar

Danfoss 061B000466

Pressure Switch, MBC 5100, -2.9-58 psig, 4.35-6.5 psig Diff, Bellows Sen, G 1/4

061B000466 MBC 5100-1211-1DB04 Danfoss pressure switches are block design to survive in the harsh conditions known from machine rooms onboard ships

Product details

Hits: 【Print】

Tags:583 587 589 ZB58KQE-TFD-551

Online Service

Hi,what can I do do for you ?

Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ABS BV CCC CCS CE CMIM DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA
Burst pressure [bar]	30 bar
China RoHS compliance	Yes
Contact function	SPDT
Contact rating	AC15=0.5 A, 250 V DC13=12 W, 125 V
Diff.@Max. range setting [bar]	0.45 bar
Diff.@Min. range setting [bar]	0.3 bar
Electrical conn. Male/Female	Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Electrical spec. standard	EN 60947-5
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
In scope of WEEE and contain batteries	No
Max. test pressure [bar] Pe	15 bar
Max. test pressure [psig]	218 psig
Max. Working Pressure [bar]	15 bar
Max. Working Pressure [psig]	220 psig
Other RoHS documentation	Saudi Arabia RoHS

Packing format	Multi pack
Pressure connection notes	With flange
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Pressure Switch
Product group	Switches and thermostats
Product Name Description	Pressure switch
Quantity per packing format	32 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]	4 bar
Regulation range [bar] Pe [min]	-0.2 bar
Regulation range [MPa] Pe [max]	0.4 MPa
Regulation range [MPa] Pe [min]	-0.02 MPa
Reset function	Auto
SCIP dossier no.	c9549e84-c103-45b0-86ec-6021ce3385c8
Serviceable	No
Specification key	1211-1DB04
Type	MBC 5100
UK RoHS compliance	Out of scope
