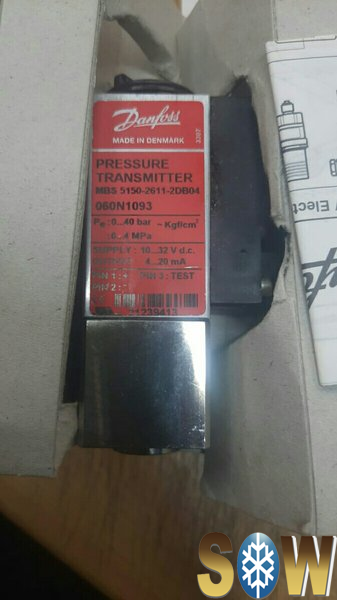

Name:	Danfoss Pressure Transmitter MBS5150 060N1093
Brand:	Danfoss
Model:	MBS5150
Part No.:	060N1093
G.W:	0.426kgs/pc
Output signal [mA] [max]:	20 mA
Output signal [mA] [min]:	4 mA
Overload pressure max. [bar]:	80 bar
Pressure connection notes:	With flange
Pressure connection size:	1/4
Pressure range [bar] [max]:	40 bar
Pressure range [bar] [min]:	0 bar
Pressure range [psi] [max]:	580 psi
Pressure range [psi] [min]:	0 psi

Product Description

Danfoss 060N1093 MBS5150 0-40 Bar 4-20mA G1/4+Flanged Marine approved block type pressure transmitter

Pressure transmitter, MBS 5150, 0.00 bar - 40.00 bar, 0.00 psi - 580.00 psi

060N1093

Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 5150-2631-A9DB04-4

Product details

Gross weight	0.426 Kilogram
Net weight	0.354 Kilogram

Volume	0.493 Liter
EAN	5702423063765

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	0.3 %
Accuracy, typical [±FS%]	0.1 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
China RoHS compliance	Yes
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	176 °F
Compensated temp. range [°F] [min]	32 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	M20
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702423063765
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F

Non-linearity BFSL [±FS%]	0.2 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	80 bar
Packing format	Multi pack
Pressure connection notes	With flange
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure range [bar] [max]	40 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	580 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Sealed gauge
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	Yes
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 5150-2631-A9DB04-4
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Supply voltage [V] DC [min]	9 V
Test Signal	PIN 3
Type	MBS 5150
UK RoHS compliance	Yes
