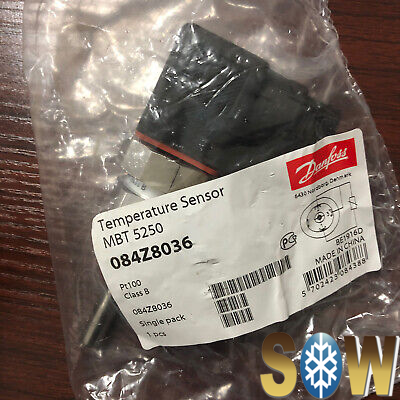

Name:	Danfoss danfoss temperature sensor MBT5250 084Z8036 Hydraulics
Brand:	Danfoss
Model:	MBT5250
Part No.:	084Z8036
G.W:	0.145kgs/pc
Process connection size:	1/2
Process connection Male/Female:	Male
Process connection material:	Stainless steel
Output signal:	Ohm
Insertion type:	Fixed
Insertion length [mm]:	50 mm
Insertion length [in]:	1.97 in
Electrical connection:	Angular connector
Protection tube diameter [mm]:	8 mm

Product Description

Danfoss danfoss temperature sensor MBT5250 084Z8036 Hydraulics

Temperature sensor, MBT 5250, 50 mm, G,1/2

084Z8036

Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Angular connector, Electrical connection size: Pg 11

Product details

Gross weight	0.145 Kilogram
Net weight	0.141 Kilogram

Volume	0.163 Liter
EAN	5702423084388

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
China RoHS compliance	Yes exceed limitations
Connection material	Stainless steel
Connection standard	ISO 228
Connection type	G
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(b), 6(c), 7(a), 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	1.97 in
Insertion length [mm]	50 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	1/2
