Danfoss pump 180B3032 APP 3.5 High Pressure Pump for sea water marine-Product Center-Star-Worths Refrigeration Co.,Ltd.-

Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss pump 180B3032 APP 3.5 High Pressure Pump for sea water marine Description Pump for sea- or brackish water

Name:	Danfoss pump 180B3032 APP 3.5 High Pressure Pump for sea water marine Description Pump for sea- or brackish water
Brand:	Danfoss
Model:	APP3.5
Part No.:	180B3032
Country of origin:	Denmark
G.W:	8.948kgs/pc
Description:	Pump for sea- or brackish water
Inlet connection type:	Thread
Inlet pressure [barg] [Max]:	5 barg
Inlet pressure [barg] [Min]:	0.5 barg
Inlet pressure [psig] [Max]:	72.5 psig
Inlet connection size [in]:	3/4 in
Inlet connection standard:	BSPP
Drain connection standard:	Metric

Product Description

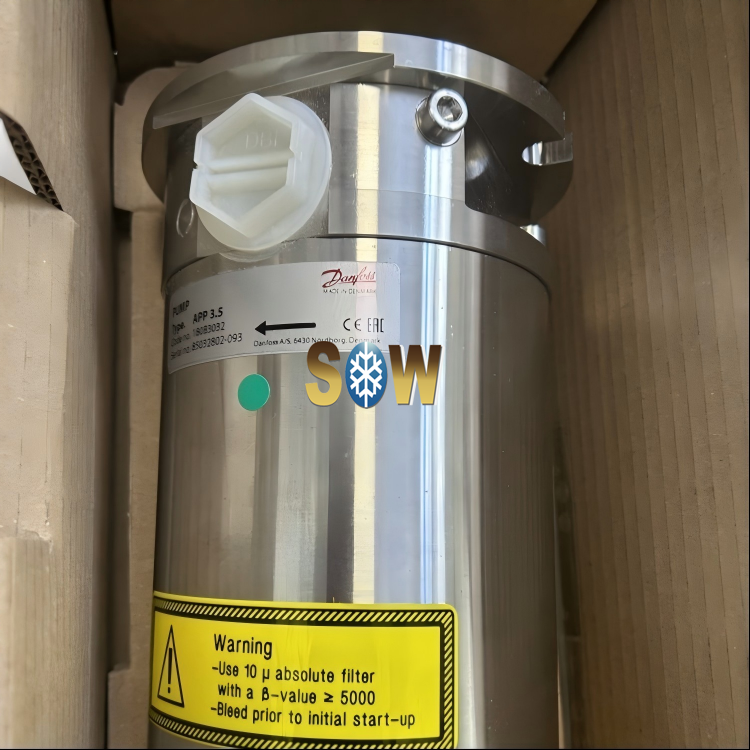

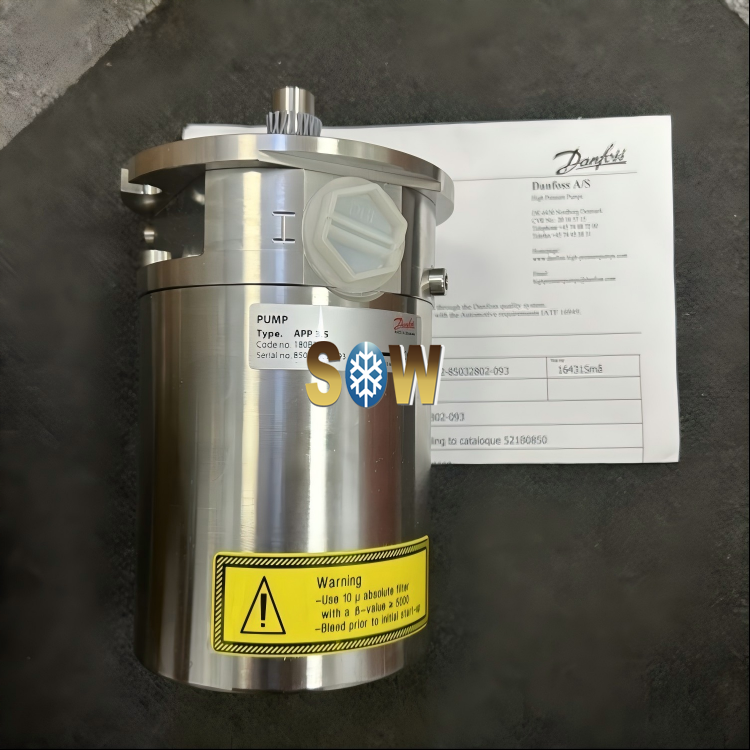

Danfoss pump 180B3032 APP 3.5 High Pressure Pump

Danfoss APP pumps, APP 3.5 180B3032

Flow [gpm] [Max]: 15.500, Flow [l/min] [Max]: 59.60, Outlet pressure [barg] [Max]: 83, Outlet pressure [psig] [Max]: 1200, Speed [rpm] [Max]: 3000, Speed [rpm] [Min]: 700, ATEX compliance: No

Product details

Gross weight	8.948 Kilogram
Net weight	8 Kilogram

Volume	6.011 Liter
EAN	5715162667507

Ambient temperature [°C] [max]	50 °C
Ambient temperature [°C] [min]	0 °C
Ambient temperature [°F] [max]	122 °F
Ambient temperature [°F] [min]	32 °F
ATEX compliance	No
Body material	Duplex
China RoHS compliance	Out of scope
Country of origin	Denmark
Description	Pump for sea- or brackish water
Displacement [cm³/rev]	20.54 cm³/rev
Displacement [in³/rev]	1.25 in³/rev
Drain connection size (metric)	M6
Drain connection standard	Metric
Drain connection type	Thread
EU RoHS compliance	Out of scope
Flow [gpm] [Max]	15.5 gal/min
Flow [gpm] [Min]	3.2 gal/min
Flow [l/min] [Max]	59.6 l/min
Flow [l/min] [Min]	12.4 l/min
Flow [m³/h] [Max]	3.5 m³/h
Flow [m³/h] [Min]	0.7 m³/h
In scope of WEEE and contain batteries	No
Inlet connection size [in]	3/4 in
Inlet connection standard	BSPP
Inlet connection type	Thread
Inlet pressure [barg] [Max]	5 barg
Inlet pressure [barg] [Min]	0.5 barg
Inlet pressure [psig] [Max]	72.5 psig

Inlet pressure [psig] [Min]	7.3 psig
Inlet pressure peak [barg] [Max]	10 barg
Inlet pressure peak [psig] [Max]	145 psig
Media temperature [°C] [Max]	50 °C
Media temperature [°C] [Min]	2 °C
Media temperature [°F] [Max]	122 °F
Media temperature [°F] [Min]	36 °F
Outlet connection size [in]	3/4 in
Outlet connection standard	BSPP
Outlet connection type	Thread
Outlet pressure [barg] [Max]	83 barg
Outlet pressure [barg] [Min]	20 barg
Outlet pressure [psig] [Max]	1200 psig
Outlet pressure [psig] [Min]	290 psig
Outside dimensions of packaging LxWxH [in]	10,7x5,9x5,4
Outside dimensions of packaging LxWxH [mm]	274x151x137
Product description	APP pumps
Product group	Pump
REACH Candidate List substances	No
Seal Material	NBR
Serviceable	Yes
Sound pressure level [dB(A)]	81 dBA
Speed [rpm] [Max]	3000 rpm
Speed [rpm] [Min]	700 rpm
Speed continuous [rpm] [Min]	700 rpm
Type	APP 1.5-3.5
Type designation	APP 3.5
UK RoHS compliance	Out of scope
