Name:Danfoss Marine Pressure Switch MBC5100 061B100466
Brand:Danfoss
Model:MBC51000
Part No.:061B100466
Regulation range [bar] Pe:1.00 - 10.00
Pressure connection type:G
Pressure connection size:1/4
Enclosure rating IP:IP65
Max. Working Pressure [bar]:150.0
Product Name Description:Pressure switch
EAN:5702423218639

Product Description

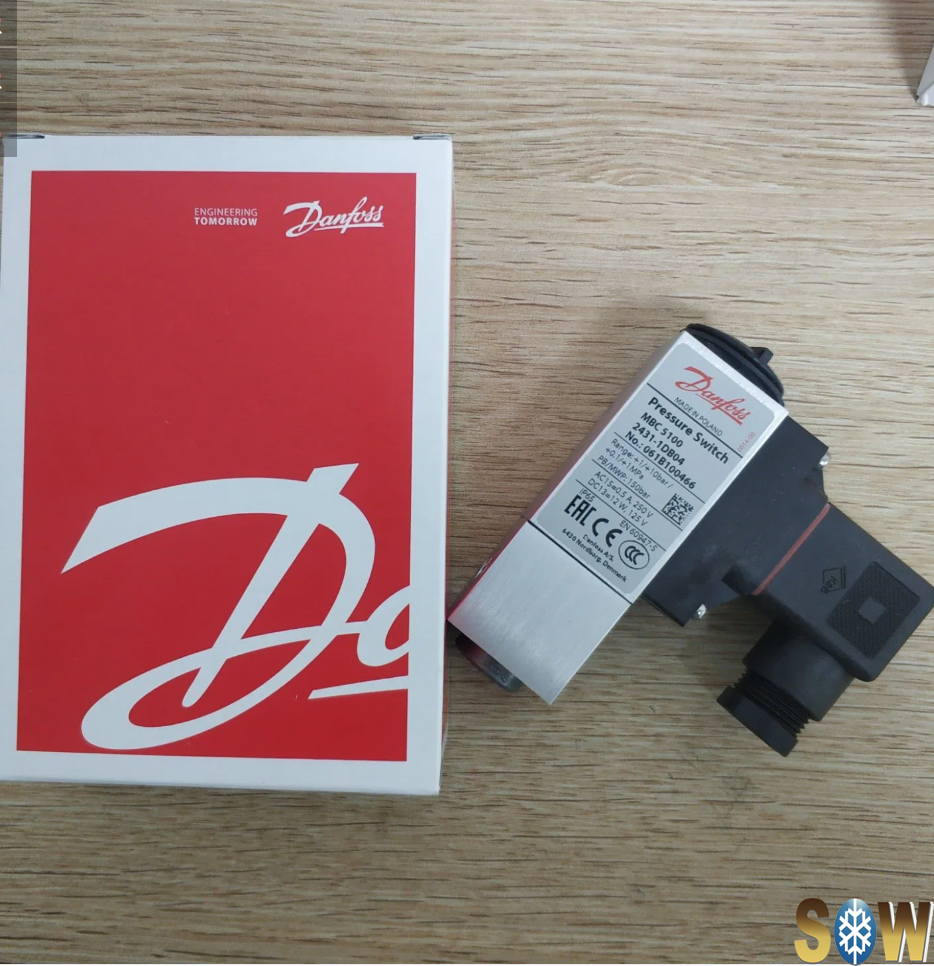

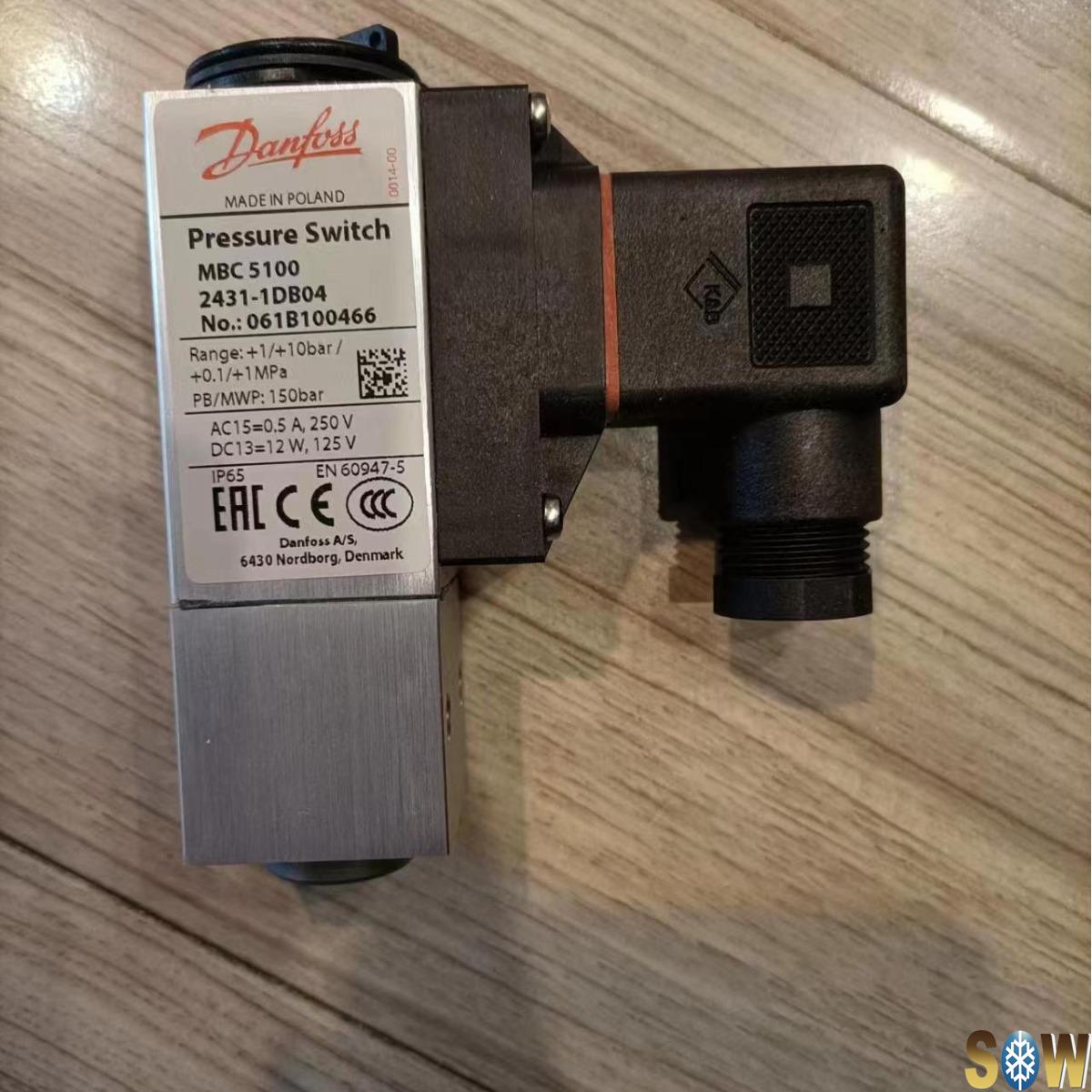

Danfoss Marine Pressure Switch MBC5100 061B100466

MBC pressure switches are used in industrial and marine applications where space and reliability are the most important features.

MBCs are compact pressure switches, designed according to our block design to survive in the harsh conditions known from machine rooms onboard ships.

MBCs have high vibration resistance and MBC 5100 features all common marine approvals.

The Fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC.

Features:

• Designed for use in severe industrial, environments

• High vibration stability

• Part of the Danfoss block system, consisting of MBC pressure controls, MBS pressure transmitters and MBV test valves

• MBC 5100 with all major ship approvals

• High repeatability

• Optimal compact design for machine building purposes

• Intended for alarm indication, shut down, control and diagnostics in many applications - motors, gears, thrusters, pumps, Filters, compressors, etc.
