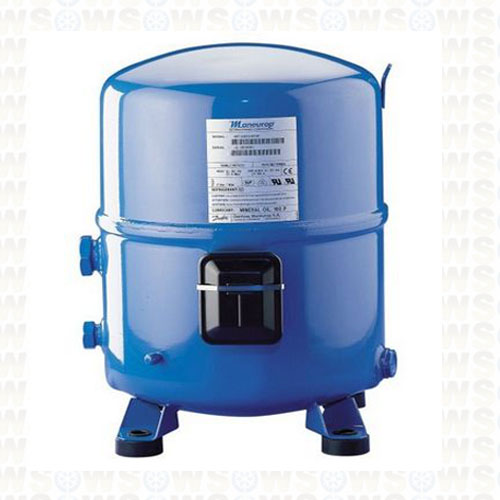

Danfoss Maneurop refrigeration compressor R22 R404 MT/MTZ40-4VM 3.3HP

Maneurop MT and MTZ series MT40-4VM  compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications.

The MT series is designed for use with the “traditional” R22 refrigerant, using Danfoss Maneurop mineral oil 160P as lubricant.
The MT series can also be applied with several R22 based refrigerant blends (substitute refrigerants), using 160 ABM alkylbenzene as lubricant.
The MTZ series is specifically designed for use with the HFC refrigerants R407C, R134a, R404A,and R507, using 160PZ polyester oil as lubricant.

1.Maneurop MT compressors are piston compressors;

2.MT series compressors have broad operating condition;

3.All parts of Maneurop compressors have been designed precisely, so possess the higher the quality of operation ;

4.MT series special design of complete machine, make the motor of the compressor get through the suction cooling 100% ;

5.Maneurop MT and MTZ series compressor is totally enclosed compressor ;

6.Their design is mainly suitable for medium and high evaporation temperature use;

7.MT series of design suitable for the traditional refrigerant R22, with Danfoss Maneurop mineral oil 160p as lubricant ;

Capacity:R-22

Model Means:

These compressors can be used in new installations and also to replace Maneurop  MTE compressors in existing installations.

Model	Cooling Capacity	Input	Current	COP	Displacement	Oil charge	Weight	Height	Voltage
	(W)	(KW)	(A)	(W/W)	(m3/h)	(dm³)	(kg)	(mm)
MT22-4VM	5363	1.89	4.56	2.89	6.63	0.95	23	356	380V,50Hz
MT28-5VM	7378	2.55	4.56	2.89	8.36	0.95	24.5	356	380V,50Hz
MT32-4VM	8064	2.98	4.97	2.7	9.37	0.95	25	356	380V,50Hz
MT36-4VM	9272	3.37	5.77	2.75	10.52	0.95	25.5	356	380V,50Hz
MT40-4VM	10475	3.85	6.47	2.72	11.81	0.95	26	356	380V,50Hz
MT44-4VM	11037	3.89	7.37	2.84	13.26	1.8	36	415	380V,50Hz
