Location:Index--->Product Center >> Danfoss Compressors >> Danfoss Maneurop refrigeration compressor R22 MT36-5 3P single-phase

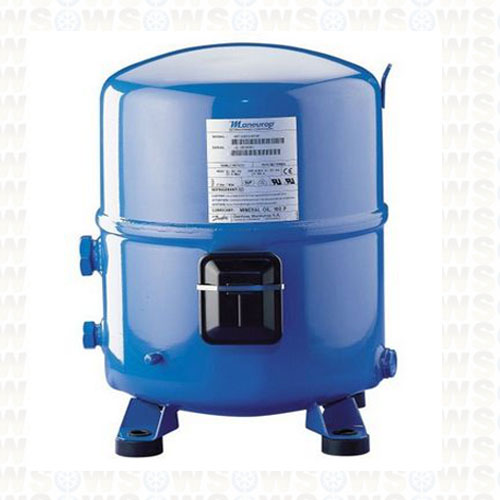

Name:Danfoss Maneurop refrigeration compressor R22 MT36-5 3P single-phase
Model No.:MT36-5VM
Place of Origin:France
Brand:Danfoss(Maneurop)
Type:Hermetic reciprocating compressors, refrigeration compressors,
Configuration:Stationary
Voltage:220v
Connection Type:Screw
Lubrication Style:Lubricated
Phase:Single Phase
Horse Power:3hp
Refrigerant:R22
Weight:28.5
Packing:Wooden case/Pallet

Product Description

Danfoss Maneurop refrigeration compressor R22 MT36-5 3P  single-phase


Maneurop(Danfoss) Reciprocating Compressor( MTZ/MT series )

Reciproating Compressor

Refrigerant: R22/R407


Our Maneurop compressors are for 50Hz,motor code is 4, can be used for R22/R407C/R134a/R404A/R507



1.piston /reciprocating type compressors.


2. Voltage is 50Hz


3. the refrigerant are  R22/R407C/R134a/R404A/R507


4. there are MT/MTZ series



5. original  from France.



6.. Capacity: 1.5HP~13HP,High efficiency , Low noise


Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications.

There are 26 different models with displacement ranging from 30-543cm3/rev.


1. MT series for R134a

2. MTZ series for R407c/134a

1. 50 Hz

2. Imported form France.

3. R22 Rated condition:50Hz/400V

superheat:11.1K

subcooling 8.3K condensing temp:54.4°C

4. R407C Rated condition :50Hz 400V

superheat:11.1K

subcooling 8.3K condensing temp:54.4°C

evaporating temp.7.2°C

refrigeration and power input±5%

Maneurop compressor for MT36 / MTZ36-4VM MT36 / MTZ36-5VM product details as below:

Model Volt G as W
(refrigerating
capacity)		 KW
(Input)		 A COP
(W/W)		 Cylinder
number		 Fuel
charge		 KG/PC
MT36-4VM 380V R22 9272 3.37 5.77 2.75 1 0.95 25.5
MT36-5VM 220V R22 9272 3.37 5.77 2.75 1 0.95 25.5
MTZ36-4VM 380V R404A/R507 4371 2.66 4.91 1.64 1 0.95 25.5
MTZ36-5VM 220V R404A/R507 4371 2.66 4.91 1.64 1 0.95 25.5


We can supply more Danfoss compressor models as below:

MODEL (R22) MODEL (R404A) NTZ series
MT18-4VM MTZ18-4VM NTZ048A4LR1A
MT22-4VM MTZ22-4VM NTZ068A4LR1A
MT28-4VM MTZ28-4VM NTZ096A4LR1A
MT32-4VM MTZ32-4VM NTZ108A4LR1A
MT36-4VM MTZ36-4VM NTZ136A4LR1A
MT40-4VM MTZ40-4VM NTZ215A4LR1A
MT44-4VM MTZ44-4VM NTZ271A4LR1A
MT50-4VM MTZ50-4VM 　
MT56-4VM MTZ56-4VM 　
MT64-4VM MTZ64-4VM 　
MT72-4VM MTZ72-4VM 　
MT80-4VM MTZ80-4VM 　
MT100-4VM MTZ100-4VM 　
MT125-4VM MTZ125-4VM 　
MT144-4VM MTZ144-4VM 　
MT160-4VM MTZ160-4VM


Model NO. Nom HP Displ. Cc/rev Capacity R404a(w) Electrical Connections Net weight(kg) Height(mm)
-10 -5 0 5 phase RLA LRA Suct Disch
MTZ18-4VI 1.5 30.2 1580 2110 2760 3540 3 3.57 16 1/2 3/8 22 333
MTZ18-5VI 1.5 30.2 1580 2110 2760 3540 1 3.57 16 1/2 3/8 22 333
MTZ22-4VI 1.8 38.12 2270 2920 3670 4540 3 10.71 41 5/8 3/8 23 333
MTZ22-5VI 1.8 38.12 2270 2920 3670 4540 1 4.28 16 5/8 3/8 23 333
MTZ28-4VI 2.3 48.06 2880 3720 3670 4540 3 11.72 55 5/8 3/8 24 358
MTZ28-5VI 2.3 48.06 2880 3720 3670 4540 1 5.35 23 5/8 3/8 24 358
MTZ32-4VI 2.7 53.86 3230 4220 3670 4540 3 14.28 70 5/8 1/2 25 358
MTZ32-5VI 2.7 53.86 3230 4220 3670 4540 1 5.71 25 5/8 1/2 25 358
MTZ36-4VI 3 60.47 3800 4870 3670 4540 3 14.28 70 5/8 1/2 25 358
MTZ36-5VI 3 60.47 3800 4870 3670 4540 1 6.43 30 5/8 1/2 25 358
MTZ40-4VI 3.3 67.89 4280 5490 6900 8540 3 7.14 38 5/8 1/2 26 358
MTZ45-4VI 3.8 76.22 4420 5840 7570 9660 3 6.78      48.5 7/8 3/4 36 415
MTZ51-4VI 4.2 85.64 5290 6920 8910 11300 3 8.21      48.5 7/8 3/4 37 415
MTZ57-4VI 4.8 96.13 6060 7880 10020      12520 3 8.57 64 7/8 3/4 37 415
MTZ65-4VI 5.4 107.71        7080 9130 11540 14340 3 10 64 7/8 3/4 37 415
MTZ73-4VI 6.1 120.94    7960 10230 12900 16010 3 12.14 80 7/8 3/4 39 415
MTZ81-4VI 6.8 135.78      9160        11720      14680        18090 3 13.56 80 1-1/8 3/4 42 415
MTZ100-4VI 8.3 171.26    10390        13500      17220      21620 3 15.71 78 1-1/8 3/4 66 520
MTZ125-4VI 10.4        215.44    13650      17500         22060      27420 3 19.28 105 1-1/8 3/4 68 520
MTZ144-4VI 12 241.87      15740      20120        25310      31400 3 21.42 115 1-1/8 3/4 69 540
MTZ160-4VI 13.3      271.55    17690        22520        28220      34900 3 25.7 130 1-1/8 3/4 69 540
