Location:Index--->Product Center >> Copeland Compressors >> Copeland refrigeration compressor R22 ZB66KQ-TFD-550 9P scroll Weld

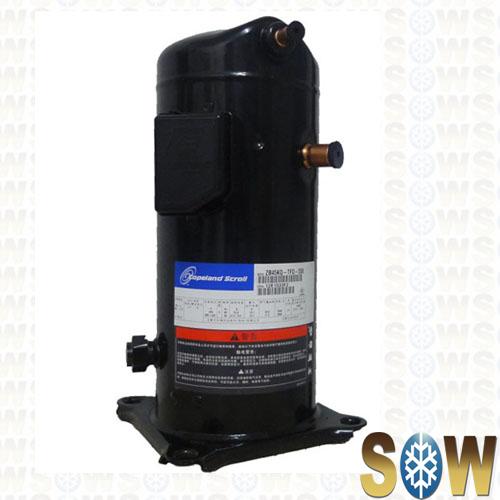

Name:	Copeland refrigeration compressor R22 ZB66KQ-TFD-550 9P scroll Weld
Model No.:	ZB66KQ-TFD-558
Place of Origin:	China
Brand:	Copeland
Type:	Scroll
Voltage:	380v
Configuration:	Stationary
Performance:	Low Noise
Lubrication Style:	Lubricated
Sight Glass:	With Sight glass
Horse Power:	9HP
Refrigerant:	R22
Weight:	65KG
Packing:	Wooden case/Pallet

Product Description

Copeland refrigeration compressor R22 ZB66KQ-TFD-550 9P scroll Weld

Product Description

* Superior efficiency

* Outstanding reliability

* Fewer moving parts

* Compliance feature offers unprecedented liquid handling capability

* Internal motor protection can efficiently protect motor from high temp and high current

* Very low noise/ gas pulsation

* Five decibels quieter than piston compressor

* Simplified system design

* Unique unload start feture requires no start capacitors/ relay

* Crankcase heater or accumulator not requied in most applications

* High heat pump capacity due to nearly 100% vulometric efficiency

* Selection scope ranges from 1. 5HP to 15HP, and is uprising.

Model NO.	Cindensate Temperature	The Evaporation Temperature ° C (R22/50HZ)
Model NO.	Cindensate Temperature	-12	-10	-5	0	5	10
ZB15KQ	40	3300	3550	4350	5200	6250	7400
ZB19KQ	40	3650	3950	4850	5850	7000	8300
ZB21KQ	40	4650	5050	6200	7450	8850	10500
ZB26KQ	40	5100	5500	6800	8200	9850	11700
ZB29KQ	40	6230	6790	8290	9970	11800	14070
ZB38KQ	40	7300	8000	9950	12200	14650	17300
ZB45KQ	40	9400	10200	12400	14900	17800	21000
ZB48KQ	40	10390	11285	13700	16436	19574	23199
ZB58KQ	40	11800	12950	16100	19600	19574	28000
ZB66KQ	40	13950	15100	18400	22200	26500	31500
ZB76KQ	40	16400	17800	21700	28500	30500	35500
ZB88KQ	40	18800	20400	24900	30000	36000	42000
ZB95KQ	40	19500	21400	26500	32000	38200	45200
ZB114KQ	40	23200	25500	31700	38500	41600	54500

Model NO.	Cindensate Temperature	The Evaporation Temperature ° C (R404/50HZ)
Model NO.	Cindensate Temperature	-25	-20	-15	-10	-5	0	5
ZB15KQE	40	1870	2430	3000	3700	4450	5350	6350
ZB19KQE	40	2490	3050	3750	4550	5450	6500	7700
ZB21KQE	40	3000	3700	4550	5000	6600	7900	9350
ZB26KQE	40	3500	4300	5250	6350	7650	9100	10800
ZB29KQE	40	4070	5040	6160	7460	8960	10680	12650
ZB38KQE	40	5100	6250	7700	9300	11200	13350	15800
ZB45KQE	40	6000	7400	9050	10950	13150	15700	18600
ZB48KQE	40	6579	8150	9969	12074	14500	17287	20471
ZB58KQE	40	7050	9250	11700	14400	17500	21000	24900
ZB66KQE	40	8900	11100	13500	16400	19600	23400	27600
ZB76KQE	40	10900	13300	16100	19400	23300	27800	33000

Below is ZR series compressor

Phase	Model	Horse Power/HP	Displacement/ m3/h	ARI 7.2/54.4ºC		Weight/ Kg	Height/ mm
Phase	Model	Horse Power/HP	Displacement/ m3/h	Cooling /W	Input Power/ W	Weight/ Kg	Height/ mm
1 Phase	ZR16K3-PFJ	1.33	3.97	4010	1320	25.9	370.4
1 Phase	ZR18K3-PFJ	1.5	4.37	4400	1440	25.9	370.4
1 Phase	ZR20K3-PFJ	1.69	4.76	4890	1600	25.9	370.4
1 Phase	ZR22K3-PFJ	1.83	5.34	5330	1730	25.9	382.8
1 Phase	ZR24K3-PFJ	2	5.92	5920	1870	26.3	382.8
1 Phase	ZR26K3-PFJ	2.17	6.27	6330	2000	25.9	382.8
1 Phase	ZR28K3-PFJ	2.33	6.83	6910	2150	27.2	382.8
1 Phase	ZR30K3-PFJ	2.5	7.3	7380	2290	28.6	405.5
1 Phase	ZR32K3-PFJ	2.67	7.55	7760	2410	28.1	405.5
1 Phase	ZR34K3-PFJ	2.83	8.02	8200	2520	29.5	405.5
1 Phase	ZR36K3-PFJ	3	8.61	8790	2700	29.5	405.5
1 Phase	ZR40K3-PFJ	3.33	9.43	9670	2970	29.9	419.3
1 Phase	ZR42K3-PFJ	3.5	9.94	10100	3120	29.9	419.3
1 Phase	ZR47K3-PFJ	3.92	11.16	11500	3530	30.4	436.6
3 Phase	ZR22K3-TFD	1.83	5.34	5330	1650	25.9	382.8
3 Phase	ZR24K3-TFD	2	5.92	5920	1840	25.9	382.8
3 Phase	ZR26K3-TFD	2.17	6.27	6330	1960	25.9	382.8
3 Phase	ZR28K3-TFD	2.33	6.83	6910	2150	26.3	405.5
3 Phase	ZR30K3-TFD	2.5	7.3	7380	2290	26.3	405.5
3 Phase	ZR32K3-TFD	2.67	7.55	7760	2410	26.3	405.5
3 Phase	ZR34K3-TFD	2.83	8.02	8200	2500	28.6	405.5
3 Phase	ZR36K3-TFD	3	8.61	8790	2680	27.2	405.5
3 Phase	ZR40K3-TFD	3.33	9.43	9670	2950	28.6	419.3
3 Phase	ZR42K3-TFD	3.5	9.94	10100	3090	28.6	419.3
3 Phase	ZR45KC-TFD	3.75	10.73	11000	3380	28.6	436.3
3 Phase	ZR46KC-TFD	3.83	10.95	11100	3390	34.9	456.9
3 Phase	ZR47KC-TFD	3.92	11.16	11500	3500	28.6	436.3
3 Phase	ZR49KC-TFD	4.08	11.45	11700	3600	35.4	456.9
3 Phase	ZR54KC-TFD	4.5	12.73	12900	4030	35.4	456.9
3 Phase	ZR57KC-TFD	4.75	13.42	13700	4160	35.4	456.9
3 Phase	ZR61KC-TFD	5.08	14.34	14600	4430	35.8	456.9
3 Phase	ZR68KC-TFD	5.75	16.18	16400	4970	38.1	456.9
3 Phase	ZR72KC-TFD	6	17.05	17400	5250	38.1	456.9
3 Phase	ZR81KC-TFD	6.75	19.2	19690	5830	40.9	462.4
3 Phase	ZR84KC-TFD	7	19.75	20330	6140	56.7	495.3
3 Phase	ZR94KC-TFD	8	22.14	22940	7000	58	495.3
3 Phase	ZR108KC-TFD	9	25.15	26250	7830	72.6	533.4
3 Phase	ZR125KC-TFD	10	28.77	30470	9060	78	533.4
3 Phase	ZR144KC-TFD	10	28.8	29890	8955	92	542
3 Phase	ZR160KC-TFD	13	35.6	37330	11175	98	557
3 Phase	ZR190KC-TFD	15	42.1	45170	13400	112	596
