Name:Danfoss Refrigeration DCL053 Liquid Line Fliter Drier 023Z5003
Model No.:DCL023Z5003
Place of Origin:Mexico
Brand:Danfoss
Performance:Explosion-Proof
Name:Eliminator
Type:unidirectional
Connection:Flare/Flare
In:3/8in
out:3/8in
Certification:CE
Refrigerant:HCF/HFC
Application:Fliter drier
Packing:Carton box

Product Description

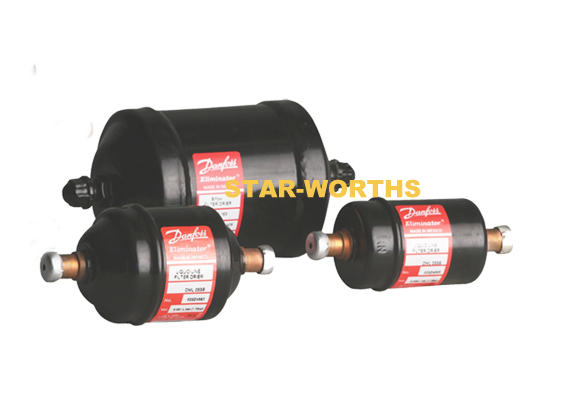

Danfoss Refrigeration DCL053 Liquid Line Fliter Drier 023Z5003



General function
Filter driers are usually installed in the liquid line of a dry-expansion refrigeration system, where they have a dual function.

First, they trap coarse particulate contamination and copper shavings, and second, they capture any moisture present in the system.

For this purpose, modern filter driers are equipped with a drier core consisting of a 100% molecular sieve for optimal drying performance and filtering.



Filter driers can be used for POE,HCFC and CFC

Optimized liquid line protection for system equipped with best filter-drier that has excellent function to eliminate water and acid.

This item is designed with lines to prevent refrigeration system from being contaminated by solid or liquid contaminants. They are filled with a mixture of a specially-prescribed desiccant to fully eliminate the acid and water from any refrigeration system


Specifications

Eliminator Liquid line filter driers protect refrigeration and air-conditioning systems from moisture, acids, and solid particies.

Eliminator Liquid line filter driers protect refrigeration and air-conditioning systems from moisture, acids, and solid particies. With theses contaminants eliminated, systems are safer from harmful chemical reactions and from abrasive impurities.
Thesre are two types of Eliminator cores.
1. Type DML driers have a core composition of 100% molecular sieves.
2. Type DCL contain 80% molecular sieves with 20% activated alumina.
3. All Eliminator driers have a solid core with bindling material held to an absolute minimum. Core selection is primarily based on the refrigerant oil used in the system.

FEATURES
Type DML
1.100% 3A molecular sieves core.
2. High drying capacity minimizing the risk of acid formation(hydrolysis).
3. Optimized for HFC refrigerants(R134a, R404a, R410a, ect. )with POE or PAG oils. Compatible with R22.
4. Will not deplete oil additives.

Type DCL
1.80% 3A molecular sieves with 20% activated alumina.
2. Perfect core blend for systems that operate at high drying capacity.
3. Optimized for CFC and HCFC refrigerants(R22, R502, etc) with mineral or alkyl benzene oils. Compatible with HFC's and refrigerant blends.

The Shell
1. UL approved for MWP up to 42 bar
2. Avaliable with solder and flare connections
3. Compact 3 cubic inches drier ideal for refrigeration and air conditioning units
4. Corrosion resistant powder-painted finish. Can be used in all environments including marine applications.
5. Allows installation with any orientation provided the arrow is in the flow direction.
6. Avalibale in sizes from 3 to 75 cubic inches.

The filter
1.25μ M filter provides high retention with minimal pressure drop.
2. Thermally stable up to 120C degree.



Model No.

Connection(Weld)

Code No.

Model No.

Connection(Flare)

Code No.

DCL032S

2mm

023Z5013

DCL032

2mm

023Z5075

DCL033S

3mm

023Z5015

DCL033

3mm

023Z5089

DCL052S

2mm

032Z5018

DCL052

2mm

023Z5002

DCL053S

3mm

032Z5019

DCL053

3mm

023Z5003

DCL082S

2mm

023Z5022

DCL082

2mm

023Z5004

DCL083S

3mm

023Z5023

DCL083

3mm

023Z5005

DCL084S

4mm

023Z5026

DCL084

4mm

023Z5006

DCL163S

3mm

023Z5029

DCL163

3mm

023Z5008

DCL164S

4mm

023Z5032

DCL164

4mm

023Z5009

DCL165S

5mm

023Z5033

DCL165

5mm

023Z5010

DCL166S

6mm

023Z5070

DCL166

6mm

023Z5011

DCL167S

7mm

023Z5034




DCL303S

3mm

023Z0030

DCL303

3mm

023Z0012

DCL304S

4mm

023Z0031

DCL304

4mm

023Z0013

DCL305S

5mm

023Z0032

DCL305

5mm

023Z0014

DCL306S

6mm

023Z0033

DCL306

6mm

023Z0156

DCL307S

7mm

023Z0034




DCL309S

9mm

023Z0035




DCL414S

4mm

023Z0104

DCL414

4mm

023Z0102

DCL415S

5mm

023Z0105

DCL415

5mm

023Z0103

DCL417S

7mm

023Z0106




DCL419S

9mm

023Z0107




DCL607S

7mm

023Z0036




DCL609S

9mm

023Z0037




DCL757S

7mm

023Z0115




DCL759S

9mm

023Z0116
