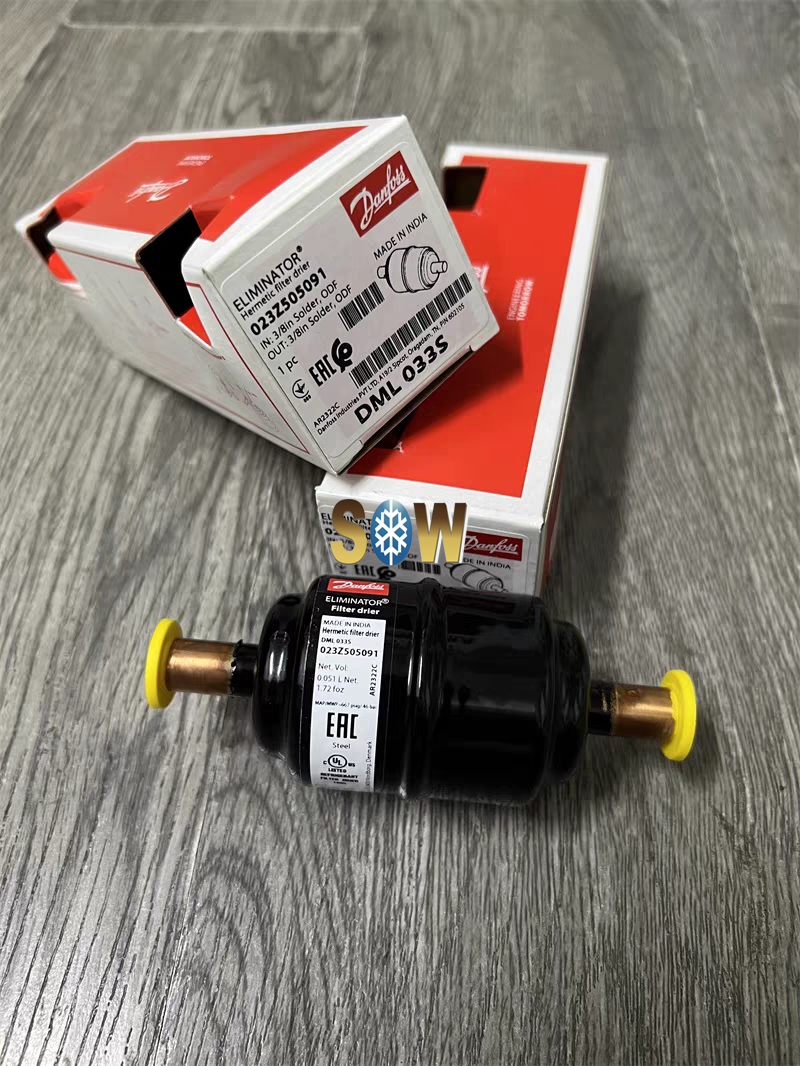

Name:	Danfoss Hermetic filter drier, DML, Copper 023Z505091
Brand:	Danfoss
Model No.:	DML
Part No.:	023Z505091
Country of origion:	China
G.W:	0.188kgs/pc
Inlet connection type:	Solder, ODF
Outlet connection type:	Solder, ODF

Danfoss Hermetic filter drier, DML, Copper 023Z505091

Product details

Gross weight	0.188 Kilogram
Net weight	0.15 Kilogram

Volume	0.316 Liter
EAN	5702428651165

Acid capacity [g]	0.2 g
Acid capacity [oz]	0.007 oz
Activated alum/Molec sieve [%]	0% / 100%
Activated alumina [%]	0 %
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
Category	Art. 4, par. 3
China RoHS compliance	Yes exceed limitations
Connection material	Copper
Core	Solid core
Core Size code	03 cu.in.
Core type	Solid core
Drying Cap[Drops of Water]24°C	R134a: 95 R290: -- R32: 80 R404A: 98 R407C: 92 R410A: 86 R507: 103
Drying Cap[Drops of Water]52°C	R134a: 87 R290: -- R32: 73 R404A: 93 R407C: 85 R410A: 76 R507: 93
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a)
Filter application	High Moisture Capacity
Flow Capacity KW	R134a: 12.1 R290: 14.6 R32: 18.4 R404A: 8.5 R407C: 12.4 R410A: 12.6 R507: 8.2
Flow Capacity TR	R134a: 3.4 R290: 4.1 R32: 5.2 R404A: 2.4 R407C: 3.5 R410A: 3.6 R507: 2.3
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
In scope of WEEE and contain batteries	No
Inlet 1 connection size [in]	3/8 in
Inlet connection type	Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	DELTA P=1PSI tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar

Max. Working Pressure [psig]	667 psig
Molecular sieve [%]	100 %
Net volume [foz US]	1.72 Fluid Ounce US
Net volume [l]	0.051 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A
Outlet 1 connection size [in]	3/8 in
Outlet connection type	Solder, ODF
Packing format	Multi pack
Product description	Liquid line filter drier
Product group	Filter driers
Product name	Hermetic filter drier
Quantity per packing format	32 pc
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A R600
Serviceable	No
Shell volume [foz US]	2.44 Fluid Ounce US
Shell volume [l]	0.07 L
Solid core surface [cm2]	59 cm²
Solid core surface [in2]	9.1 in²
Solid core volume [cm3]	21 cm³
Solid core volume [in3]	1.3 in³
Temperature range [°C] [Max]	70 °C
Temperature range [°C] [Min]	-40 °C
Temperature range [°F] [Max]	160 °F
Temperature range [°F] [Min]	-40 °F
Type	DML
Type designation	DML 033S
UK RoHS compliance	Out of scope
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A
