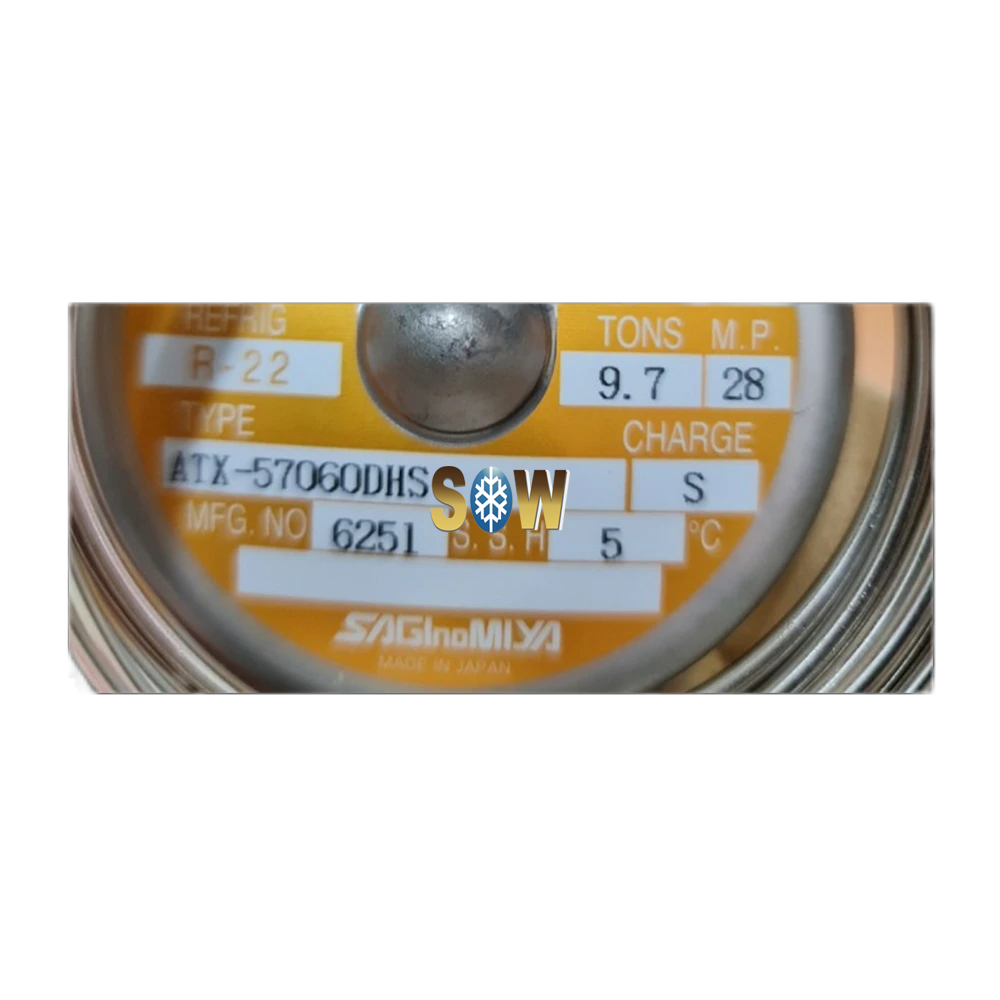

Name:Saginomiya Expansion Valve ATX-57060DHS
Brand:Saginomiya
Model No.:ATX-57060DHS
Country of origional:Japan

Product Description

Saginomiya Expansion Valve ATX-57060DHS

Saginomiya expansion valve ATX-57060DHS R22

VALVE NOMENCLATURE


Catalog No. is decided according to the specifications.

Example:ATX(Ⅰ) – 34006(Ⅱ) B(Ⅲ) H(Ⅳ) L(Ⅴ)


Ⅰ: Type...... ATX–Thermostatic expansion valve for general use.

Ⅱ: Model...... The first and second digits indicate inlet and outlet pipe size respectively.

The last three digits indicate nominal capacity.

Ⅲ: Connection...... B–Flare Nut Connection, D–Solder Connection

Ⅳ: Refrigerant...... M = R134a, H = R22, U = R404A, P = R407C

Ⅴ: Charge type...... G = G–charge, L = L–charge, C = C–charge, CL = CL–charge, CY = CY–charge,

S = S–charge, SL = SL–charge


Application: General refrigeration and air conditioning system.

In cases where the evaporation temperature is −20°C or lower, S–charge type is best suited for heat-pump air conditioners and unloading system attached devices.
