Location:Index--->Product Center >> Danfoss Thermostatic Expansion Valves >> Danfoss Element for expansion valve, TEZ12, R407C 067B3366

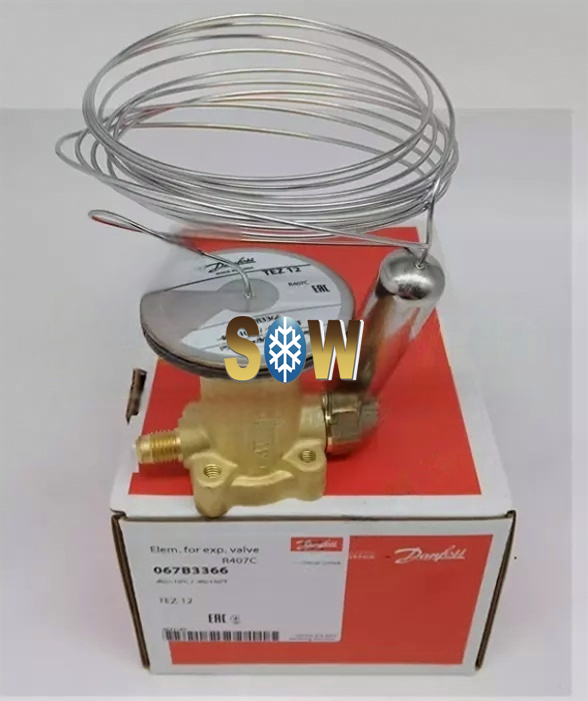

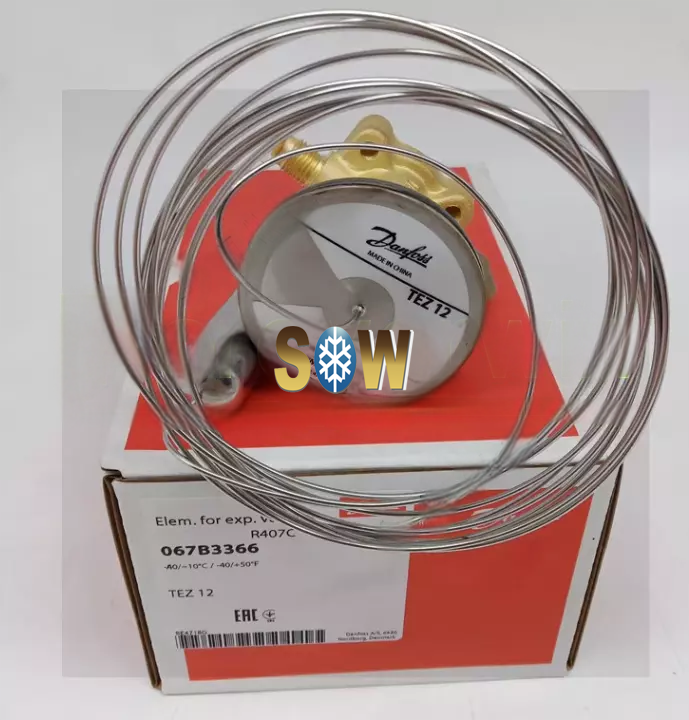

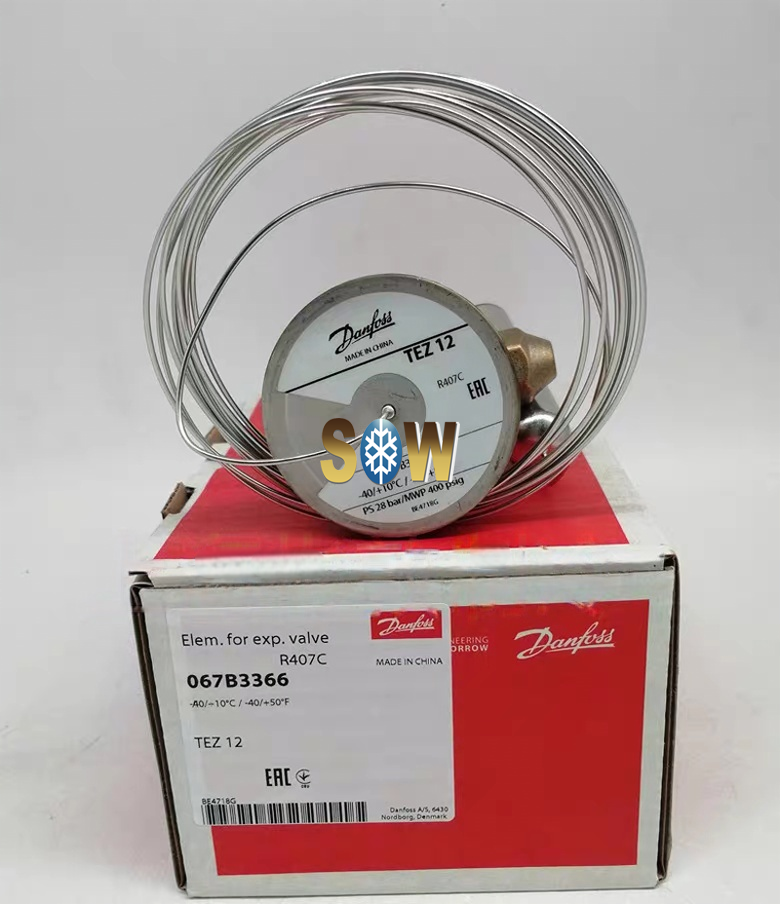

Name:Danfoss Element for expansion valve, TEZ12, R407C 067B3366
Brand:Danfoss
Model No.:TEZ12
Part No.:067B3366
Country of origion:China
G.W:0.63kgs/pc
Temperature range [°C]:-40 - 10
Pressure equalization:Externally equalized
Product Name Description:Element for expansion valve

Product Description

Danfoss Element for expansion valve, TEZ12, R407C 067B3366

TEZ5-55感温元件

型号

外平衡管

连接方式

(1/4 in./6 mm)

毛细管

长度 (m)

产品代码

N系列(-40℃ ～ +10℃)

MOP点

+15℃

TEZ 5

喇叭口

3

067B3278

067B3277

TEZ 12

喇叭口

3

067B3366

067B3367

TEZ 20

喇叭口

3

067B3371

067B3372

TEZ 55

喇叭口

3

067G3240

067G3241

TE5-12-20-55流口组件(阀芯)

流口编号   R22 R407C
产品代码 型号 名义制冷量kW 型号 名义制冷量
kW
N系列 B系列 N系列
–40℃～ –60℃～ –40℃～
10℃ –25℃ 10℃
0.5 067B2788 TEX 5-3 11,1 6,4 TEZ 5-3 10,8
1 067B2789 TEX 5-5.5 18,8 11,0 TEZ 5-5 18,3
2 067B2790 TEX 5-7.5 26,1 15,8 TEZ 5-7.5 25,6
3 067B2791 TEX 5-10 33,9 19,5 TEZ 5-9.5 33,0
4 067B2792 TEX 5-13 44,8 25,9 TEZ 5-12.5 43,9
5 067B2708 TEX 12-17 60,0 35,6 TEZ 12-17 58,8
6 067B2709 TEX 12-21 72,7 42,0 TEZ 12-20.5 71,2
7 067B2710 TEX 12-24 84,5 46,4 TEZ 12-23.5 81,4
8 067B2771 TEX 20-32.5 113,6 55,0 TEZ 20-29.5 104,0
9 067B2773 TEX 20-37.5 131,5 57,5 TEZ 20-32.5 113,5
10 067G2701 TEX 55-44.5 156,3 68,2 TEZ 55-42.5 148,4
11 067G2704 TEX 55-54 190,0 77,8 TEZ 55-50.5 177,4
12 067G2707 TEX 55-65.5 228,8 95,3 TEZ 55-61.5 215,3
13 067G2710 TEX 55-80 281,0 131,4 TEZ 55-78 273,6
