Name:	Copeland Scroll air conditioner compressor ZR310KCE-TFD-522, R407C, 380-420V
Brand:	Copeland
Model No.:	ZR
Part No.:	ZR310KCE-TFD-522
Country of origion:	China
Voltage/Frenquency/phase:	380-420V，50Hz，3PH
Refrigerant:	R407C
Horse Power:	25HP

Product Description

Copeland Scroll compressor ZR310KCE-TFD-522, R407C, 380-420V

Product information "Compressor Copeland Scroll ZR310KCE-TFD-522, R407C, 380-420V"

ZR310K BOM 522: with air connection and oil sight glass, tandem capable, with 230V AC motor protection module, with rubber vibration damper, for individual installation

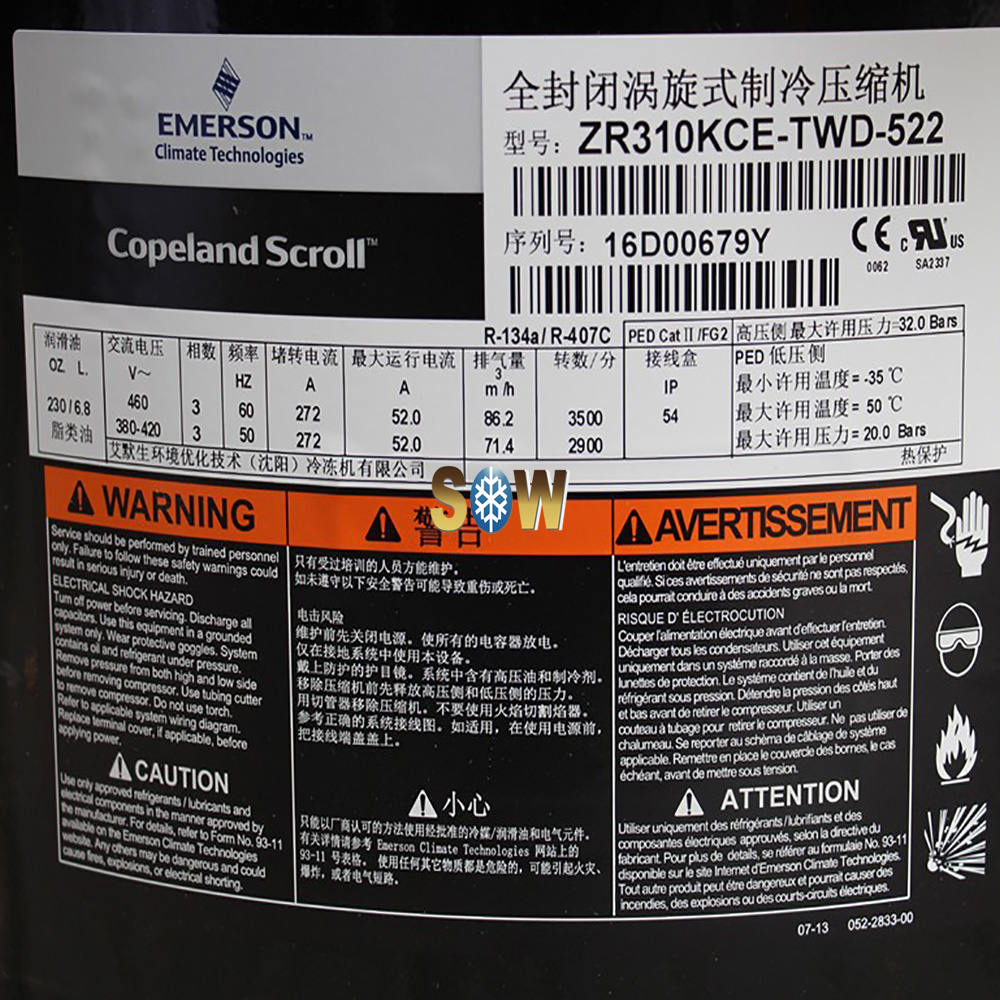

Compressor Copeland Scroll ZR310KCE-TWD 522 - R22, R407C 380-420/3/50Hz.
Compressor volume: 71.4 m3/h (411.26 cm3)
Oil volume: 6.8 litres.
Connections: 1.5/8" x 1.3/8"
Net weight: 160.0 kg.
Gross weight: 188.0 kg.
Dimensions (LxWxH): 448x392x715 mm.
Mounting bracket (diam.): 266.7 x 266.7 (22.6) mm.
PED: 2.0 class.
Pressure HP: 32.0 bar, LP: 20.0 bar.
Noise level: 74 dBA - 1m.
Max. noise level: 85.0 dBA
Max. Operating current (FLA): 52.0 A.
LRA: 272.0 A.
Winding resistance: 0.5 Ohm.
Number of cylinders: 1.
Protection class: IP 54 (IEC 34)

Recommended sump heater: 150 W.

型号

名义匹数

制冷能力

输入功率

(W)

电流

（A）

COP

（W/W）

EER

Btu/Wh

排量

cc/Rev.

注油量

（L）

净重

（kg）

堵转电流

（A）

噪音声功率

（dBA）

(W)

(Btu/h)

ZR310KCE-TWD-522

25.8

72500

248000

22300

37.9

3.25

11.1

410.6

6.80

160.1

272.0

85.0

MODEL	HP	CAPACITY (W)	INPUT POWER (KW)	INPUT CURRENT (A)	NET WEIGHT (KG)	HEIGHT (MM)
ZR24K3-TFD-522	2	5920	1.87	4.3	25.9	383
ZR28K3-TFD-522	2.5	6910	2.15	5	26.3	383
ZR34K3-TFD-522	2.8	8200	2.52	5.7	28	406
ZR36K3-TFD-522	3	8900	2.7	5.7	28	406
ZR42K3-TFD-522	3.5	10100	3.12	7.1	28.6	419
ZR47KC-TFD-522	4	11500	3.53	7.2	28.6	436
ZR54KC-TFD-522	4.5	12900	4.03	8.7	35.4	457
ZR57KC-TFD-522	4.8	13700	4.16	8.7	35.4	457
ZR61KC-TFD-522	5	14600	4.43	10	35.8	457
ZR68KC-TFD-522	5.8	16400	4.97	12.1	38.1	457
ZR72KC-TFD-522	6	17400	5.25	12.1	38.1	451
ZR81KC-TFD-522	6.8	19690	5.83	15	40.9	462
ZR84KC-TFD-522	7	20330	6.14	15	56.7	497
ZR94KC-TFD-522	8	22940	7	16.4	58	497
ZR108KC-TFD-522	9	26250	7.83	17.3	63	552
ZR125KC-TFD-522	10	30470	9.06	19.2	63	552
ZR144KC-TFD-522	12	34730	22.3	19.6	63	552
ZR90M3-TWD-551	7.5	21540	6.62	14.6	91	553
ZR11M3-TWD-551	9	25840	7.8	17.8	91	553
ZR12M3-TWD-551	10	29890	8.95	17.9	92	553
ZR16M3-TWD-551	13	37330	11.17	25	98	553
ZR19M3-TWD-522	15	45170	13.4	27.2	112	598
ZR250KC-TWD-522	20	60000	17.7	34	142	736
ZR310KC-TWD-522	25	74000	22	41.4	160	734
ZR380KC-TWD-522	30	92000	26.9	62.5	176	734
