Name:Copeland Scroll Compressor VR61KF-TFP-54E for Air conditioning
Brand:Copeland
Model No.:VR61KF-TFP-54E
Country of origional:China
N.W:30kgs/pc
Size:0.24570.22610.4202m
Refrigerant:R22
Voltage:3phase,380V,50HZ
Horsepower (HP):5

Product Description

Copeland Scroll Compressor VR61KF-TFP-54E for Air conditioning


The Copeland Scroll™ air conditioning compressor ZR/VR series for R22, R407C and R134a refrigerants is widely used in air conditioning, industrial cooling and precision air conditioning.


Nowadays, the Scroll™ compressors are used in an even wider range of applications in the air conditioning industry: split air conditioners, rooftop units, unitary units and chilled water systems, where the Scroll™ compressors, due to their unquestionable superiority, have widely replaced piston compressors and have started to partially replace screw compressors.


Multi-compressor combinations (double and triple parallel) can be used in larger capacity systems, providing users with good comfort while effectively reducing operating costs with a high seasonal energy efficiency ratio. (Multi-compressor combinations are subject to verification or validation by Copeland™)


Single compressor capacities range from 5KW (ZR18) to 90KW (ZR380), and can be extended to 180KW and 330KW with two- and three-stage paralleling.


Copeland ZR series scroll compressor can be used for air conditioning and refrigeration.


Refrigerant: R22 Volt/HZ: 220/380v 50/60 Hz

Nature of Copeland Compressor:

*Outstanding reliability;

*Fewer moving parts;

*Compliance feature offers unprecedented liquid handing capability;

*Internal motor protect motor from high temp and high current;

*Very low noise/gas pulsation;

*Five describes quieter than position compressor;

*Simplified system design;

*Unique unload start feature requires no start capacitors/relay high heat pump capacity due to nearly 100% volumetric efficiency;

*Selection scope ranges from 1HP to 30HP, and is up rising.



model Rated Power Gas displacement refigerating capacity input power cop uol tage Weight
(HP) (CC/Rev) (kw) (kw) (w/w) (A) (kg)
ZR28K3-TFD-522 2.3 39.3 6.9 2.15 3.22 4 25
VR30KM-TFP-582 2.5 40.5 7.4 2.21 3.34 4.5 20
ZR34K3-TFD-522 2.8 46.2 8.25 2.5 3.3 4.6 27
ZR34KH-TFD-522 2.8 46.2 8.2 2.47 3.32 4.7 27
VR34KF-TFP-582 2.8 46.2 8.3 2.56 3.22 4.5 21
ZR36K3-TFD-522 3 49.5 8.85 2.7 3.28 4.8 27
ZR36KH-TFD-522 3 49.5 8.9 2.68 3.32 4.7 29
ZR42K3-TFD-522 3.5 57.2 10.25 3.1 3.31 5.5 29
ZR47KC-TFD-522 3.9 64.2 11.55 3.43 3.37 6.3 30
ZR48KC-TFD-522 4 65.6 11.87 3.6 3.28 6.1 28.1
VR48KS-TFP-542 4 65.6 11.87 3.6 3.28 6.1 26
VR52KS-TFP-542 4.3 70.4 12.8 3.77 3.4 7 29
VR52KS-TFP-54E 4.3 70.4 12.8 3.77 3.4 7 32
ZR54KC-TFD-522 4.5 73.1 13.2 3.76 3.52 7.4 35.8
VR54KS-TFP-542 4.5 73.1 13.2 3.76 3.52 7.4 29
VR54KS-TFP-54E 4.5 73.1 13.9 3.76 3.52 7.4 29
ZR57KC-TFD-522 4.8 77.2 13.9 4.13 3.37 7.8 36.3
VR57KS-TFP-542 4.8 77.2 13.9 4.13 3.37 7.8 29
VR57KS-TFP-54E 4.8 77.2 113.9 4.13 3.37 7.8 29
VR61KF-TFP-542 5.1 82.7 14.95 4.47 3.34 8.3 29
VR61KF-TFP-54E 5.1 82.7 14.95 4.47 3.34 8.3 30
ZR61KC-TFD-522 5.1 82.7 14.95 4.43 3.28 8.2 36
ZR61KH-TFD-522 5.1 82.7 14.95 4.44 3.37 7.8 36
ZR68KC-TFD-522 5.6 93 16.9 4.95 3.41 8.6 38
ZR72KC-TFD-522 6 98.1 17.7 5.2 3.4 8.9 38
ZR72KC-TFD-52E 6 98.1 17.7 5.2 3.4 8.9 38
ZR81KC-TFD-522 6.8 107.8 19.9 5.8 3.43 10.5

38

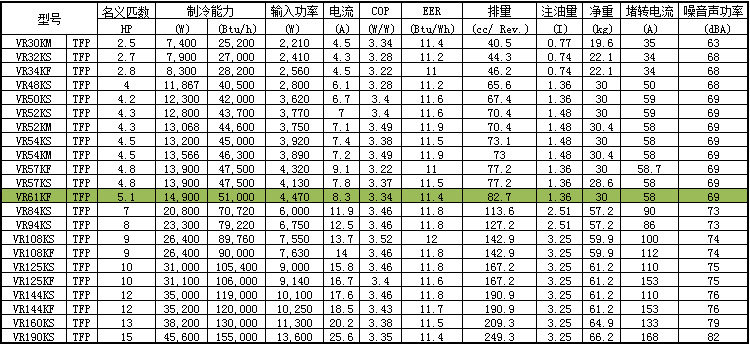

型号
名义功率 制冷能力 输入功率
电流 cop EER 排量 注油量 堵转电流
噪音声功率
HP W

Btu/h

W

A

W/W Btu/Wh cc/Rev. L A dBA
VR61KF-TFP-54E 5.1 14900 51000 4470 8.3 3.34 11.4 82.7 1.36 58 69.0
