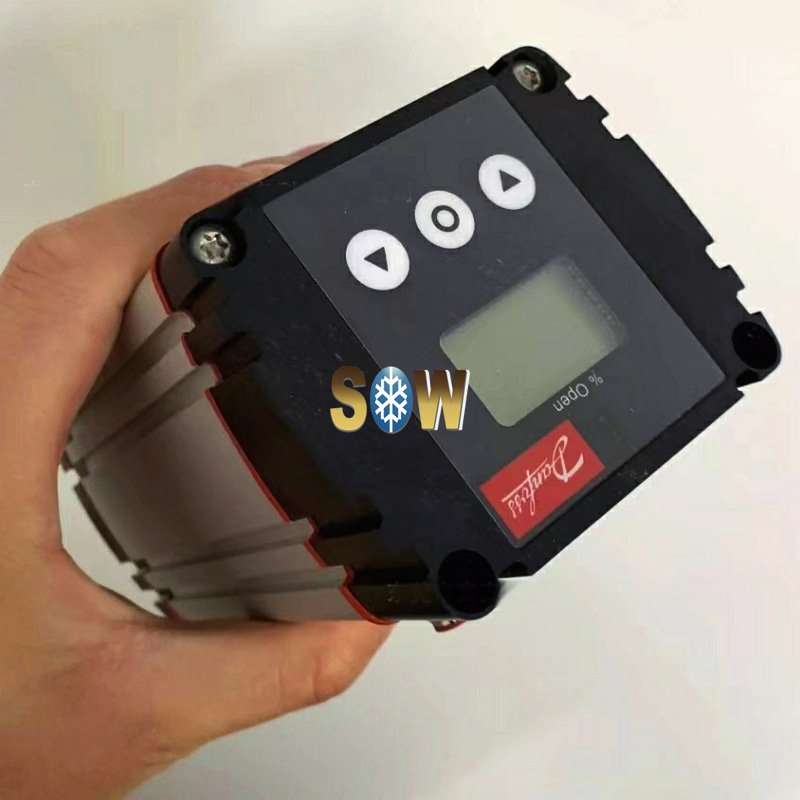

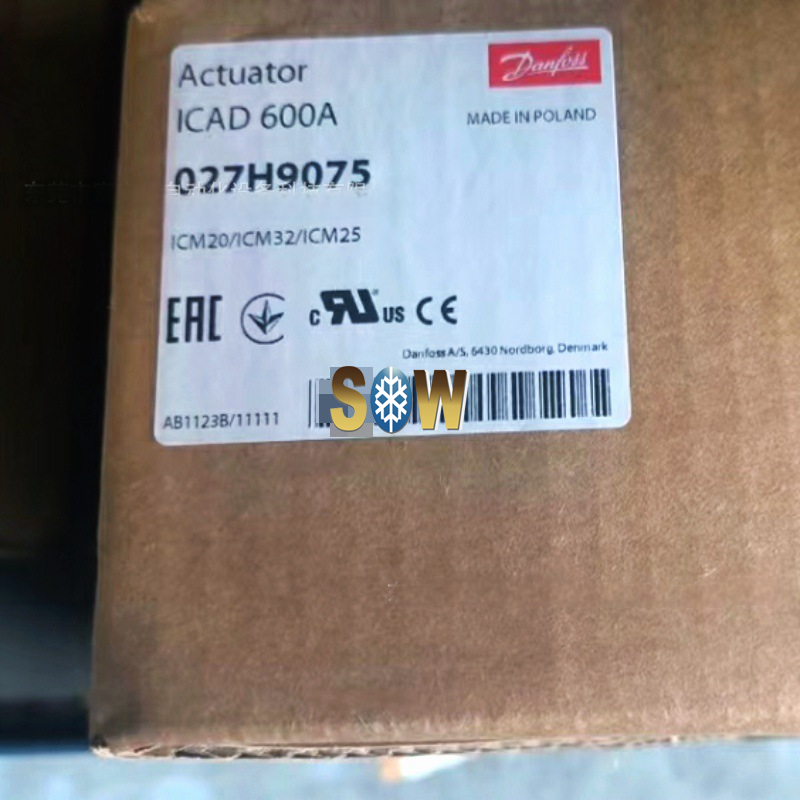

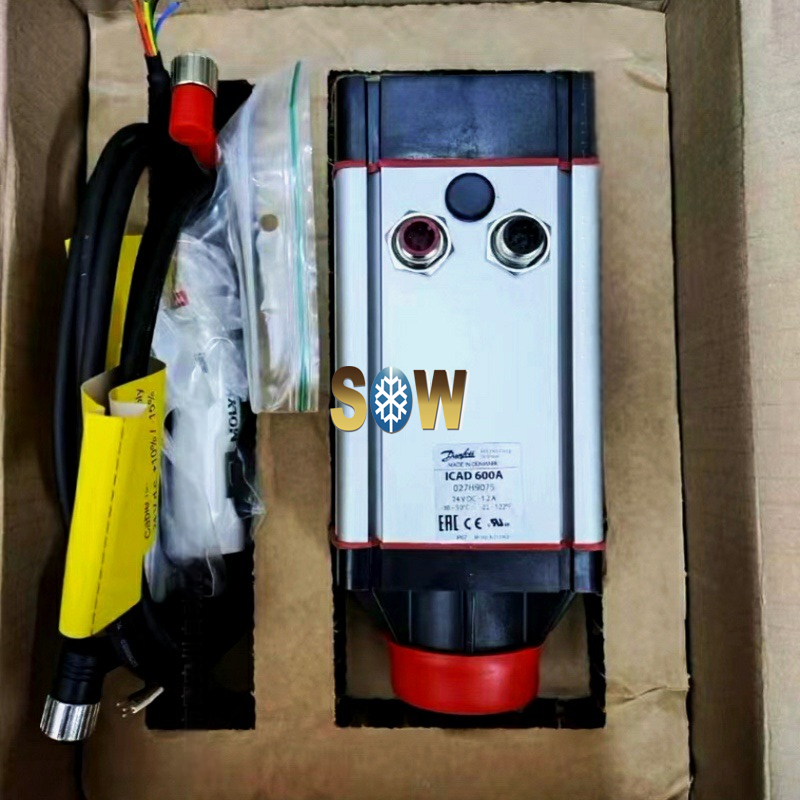

Danfoss Actuator, ICAD 600A 027H9075

Product details

Gross weight	1.836 Kilogram
Net weight	1.384 Kilogram

Volume	6.248 Liter
EAN	5702428904957

Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-22 °F
Analog input current opt. [mA] [max]	20 mA
Analog input current opt. [mA] [min]	4 mA
Analog input Volt opt. [V] d.c [max]	10 V
Analog input Volt opt. [V] d.c [min]	2 V
Analog output options [mA] [max]	20 mA
Analog output options [mA] [min]	4 mA
Approval	CE CRN EAC LLC CDC TYSK UL UKCA
Cable length [in]	60 in
Cable length [m]	1.5 m
Control cable size [AWG]	7 x ~24 AWG, Ø0.24 in
Control cable size [mm2]	7 x 0,25 mm, Ø6 mm
Dig. Output-Ext supply [V] d.c [max]	24 V
Dig. Output-Ext supply [V] d.c [min]	5 V
Digital Output-Load [Ohm]	50
Digital Output-Max Load [mA]	50 mA
Digital outputs (DO) [pc]	3 pc
Display type	LCD
Enclosure rating IP	IP67
Function	Digital output
In scope of WEEE and contain batteries	No
Load Analog input Current[Ohm]	200

Load Analog input Voltage[Ohm]	10000
Load Analog output max [Ohm]	250
Output configuration	NPN Transistor
Packing format	Single pack
Parts Program name	ICM
Product description	Actuator
Product group	Press. and temp. regul. valves
Product Name Description	Actuator
Quantity per packing format	1 pc
REACH Candidate List substances	No
Supply cable size [AWG]	3 x ~22 AWG, Ø0.19 in
Supply cable size [mm2]	3 x 0,34 mm, Ø4,8 mm
Supply voltage [V] DC	24 V
Supply voltage [V] DC	24 V
Supply voltage load [A]	1.2 A
Supply voltage tolerance [%] [max]	10 %
Supply voltage tolerance [%] [min]	-15 %
Temperature range [°C] [max]	50 °C
Temperature range [°C] [min]	-30 °C
Temperature range [°F] [max]	122 °F
Temperature range [°F] [min]	-22 °F
Type	ICAD 600A
UL approval file name	REFRIGERANT VALVE 53R0
Used for product	ICM 20 ICM 25 ICM 32
