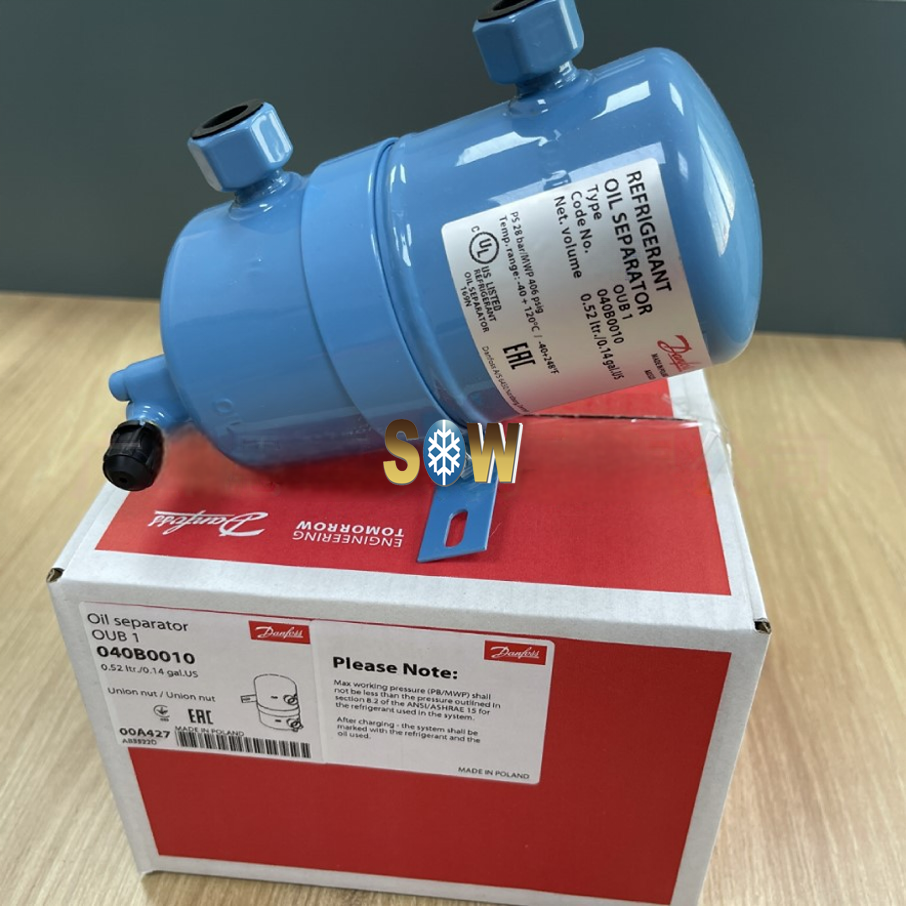

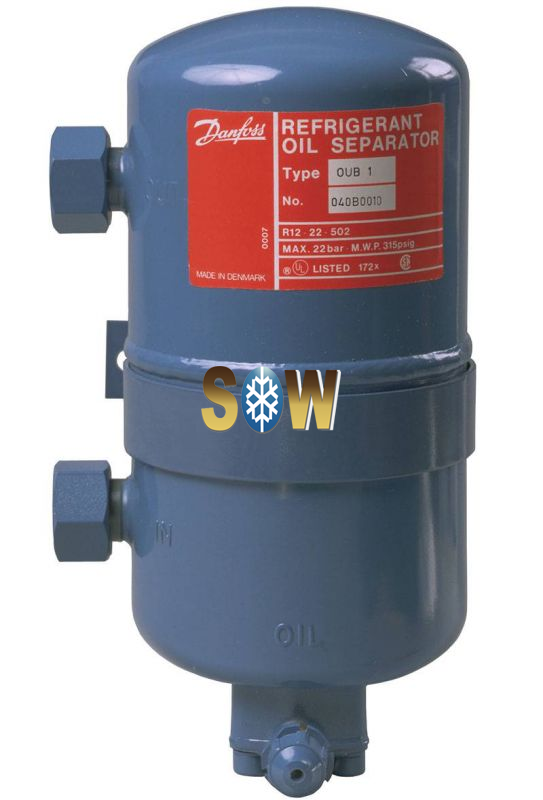

Danfoss Oil separator, OUB 1 040B0010

Product details

Gross weight	1.15 Kilogram
Net weight	0.929 Kilogram

Volume	5.107 Liter
EAN	5702422042174

Approval	C UL US LISTED EAC LLC CDC TYSK
Approval file name	REFRIGERANT OIL SEPARATOR 169N
China RoHS compliance	Yes
EU RoHS compliance	Out of scope
Flow direction indicator	Engraved OIL/IN/OUT
Further information	Excl. unions
In scope of WEEE and contain batteries	No
Inlet connection type	Union nut
Inlet size [in]	3/4 in - 16 UNF
Max. test pressure [bar]	40 bar
Max. test pressure [psig]	580 psig
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-40 °F
Net volume [l]	0.52 L
Netto volume [gal US]	0.14 gal
Oil reservoir vol. [foz US]	3.38 Fluid Ounce US
Oil reservoir vol. [l]	0.1 L

Outlet connection type	Union nut
Outlet size [in]	3/4 in - 16 UNF
Packing format	Multi pack
Product accessories	Oil Management assesories
Product group	Oil separators
Product Name Description	Oil separator
Quantity per packing format	4 pc
Rated cap. R404A/R507A [kW]	3.5 kW
Rated capacity R134a [kW]	2.5 kW
Rated capacity R22 [kW]	3.1 kW
Rated capacity R407C [kW]	4.4 kW
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E) R1270 R134a R22 R290 R32 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R454A R454B R454C R455A R507A R513A R600 R600a
Return connection size [in]	7/16 in - 20 UNF
Return connection type	Flare
SCIP dossier no.	84665ad6-10fd-4942-be2c-ff8deeb786af
Serviceable	OUB spare parts
Type	OUB 1
UK RoHS compliance	Out of scope
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A
