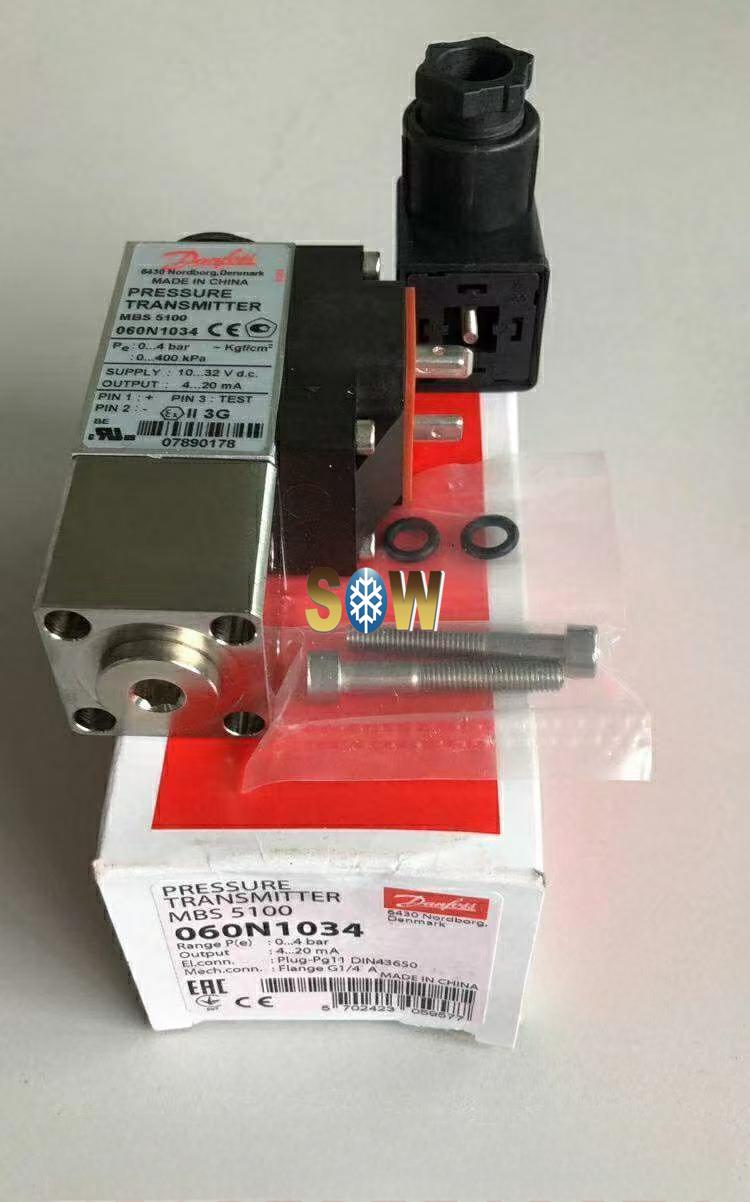

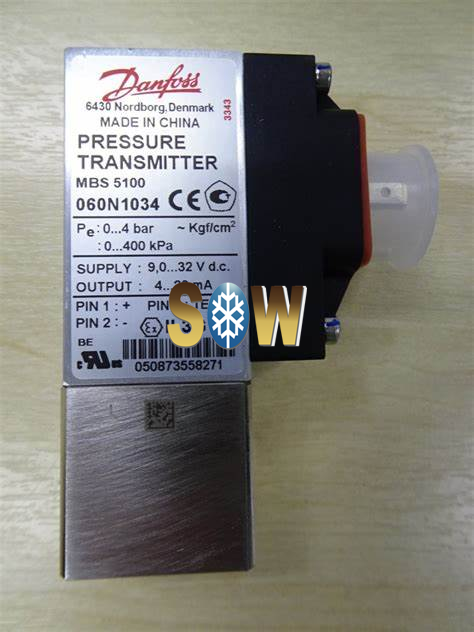

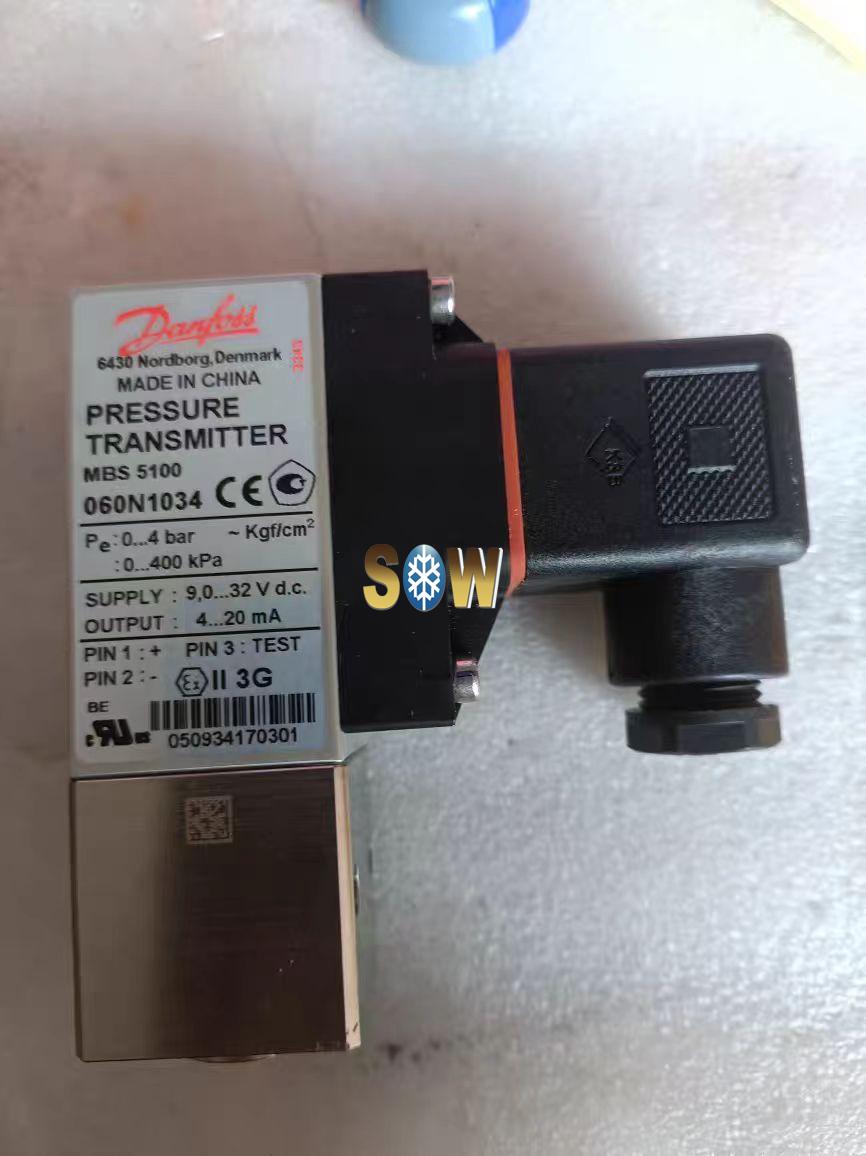

Name:	Danfoss Pressure transmitter, MBS 5100 ,060N1034
Brand:	Danfoss
Model No.:	MBS 5100
Part No.:	060N1034
Country of origion:	China
G.W:	0.402kgs/pc
Product Name Description:	Pressure transmitter
Pressure range [bar]:	0.00 bar - 4.00 bar
Specification key:	MBS 5100-1611-A6DB04-4
Pressure connection size:	1/4
Pressure connection type:	G
Electrical connection:	Angular connector
Output signal:	Current
Pressure reference:	Gauge (relative)

Danfoss Pressure transmitter, MBS 5100 ,060N1034

Product details

Gross weight	0.402 Kilogram
Net weight	0.332 Kilogram

Volume	0.493 Liter
EAN	5702423059577

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	0.3 %
Accuracy, typical [±FS%]	0.1 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
China RoHS compliance	Yes
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	176 °F
Compensated temp. range [°F] [min]	32 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flush diaphragm	No
High Clipping Level	22.4
Identical product	060N4000
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702423059577
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F

Non-linearity BFSL [±FS%]	0.2 %
Other RoHS documentation	Saudi Arabia RoHS
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	8 bar
Packing format	Multi pack
Pressure connection notes	With flange
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure range [bar] [max]	4 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	58 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Gauge (relative)
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 5100-1611-A6DB04-4
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Supply voltage [V] DC [min]	9 V
Test Signal	PIN 3
Type	MBS 5100
UK RoHS compliance	Yes
