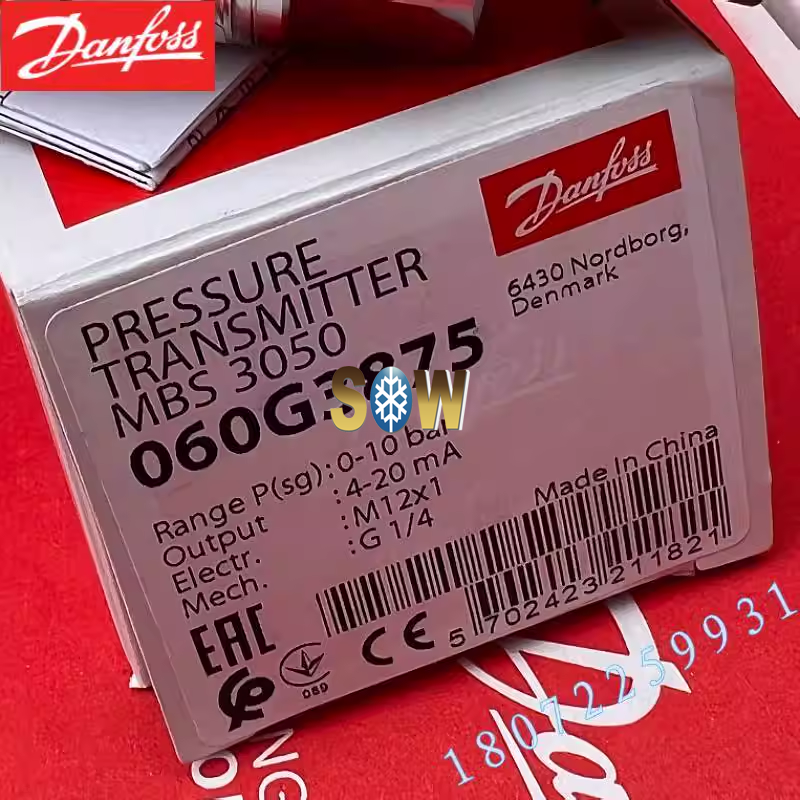

Name:	060G3875 Danfoss Pressure transmitter, MBS 3050, 0.00 bar - 10.00 bar
Brand:	Danfoss
Model No.:	MBS 3050
Part No.:	060G3875
Country of origion:	China
G.W:	0.152kgs/pc
Product Name Description:	Pressure transmitter
Pressure range [bar]:	0.00 bar - 10.00 bar
Specification key:	MBS 3050-2031-E3GB04-2
Pressure connection size:	1/4
Pressure connection type:	G
Electrical connection:	M12 x 1
Output signal:	Current
Pressure reference:	Sealed gauge

060G3875 Danfoss Pressure transmitter, MBS 3050, 0.00 bar - 10.00 bar

Product details

Gross weight	0.152 Kilogram
Net weight	0.136 Kilogram

Volume	0.251 Liter
EAN	5702423211821

+ supply	Pin 1
- common	Pin 4
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-25 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-13 °F
China RoHS compliance	Yes exceed limitations
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	176 °F
Compensated temp. range [°F] [min]	32 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male
Electrical connection	M12 x 1
Electrical connection size	4 pin
Electrical connection standard	IEC 61076-2-101
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	No
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702423211821
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F

Non-linearity BFSL [±FS%]	0.5 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	60 bar
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/4
Pressure connection standard	DIN 3852-E ISO 1179-2 (Form E)
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	10 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	145 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Sealed gauge
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	Yes
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 3050-2031-E3GB04-2
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Supply voltage [V] DC [min]	9 V
Type	MBS 3050
UK RoHS compliance	Yes
