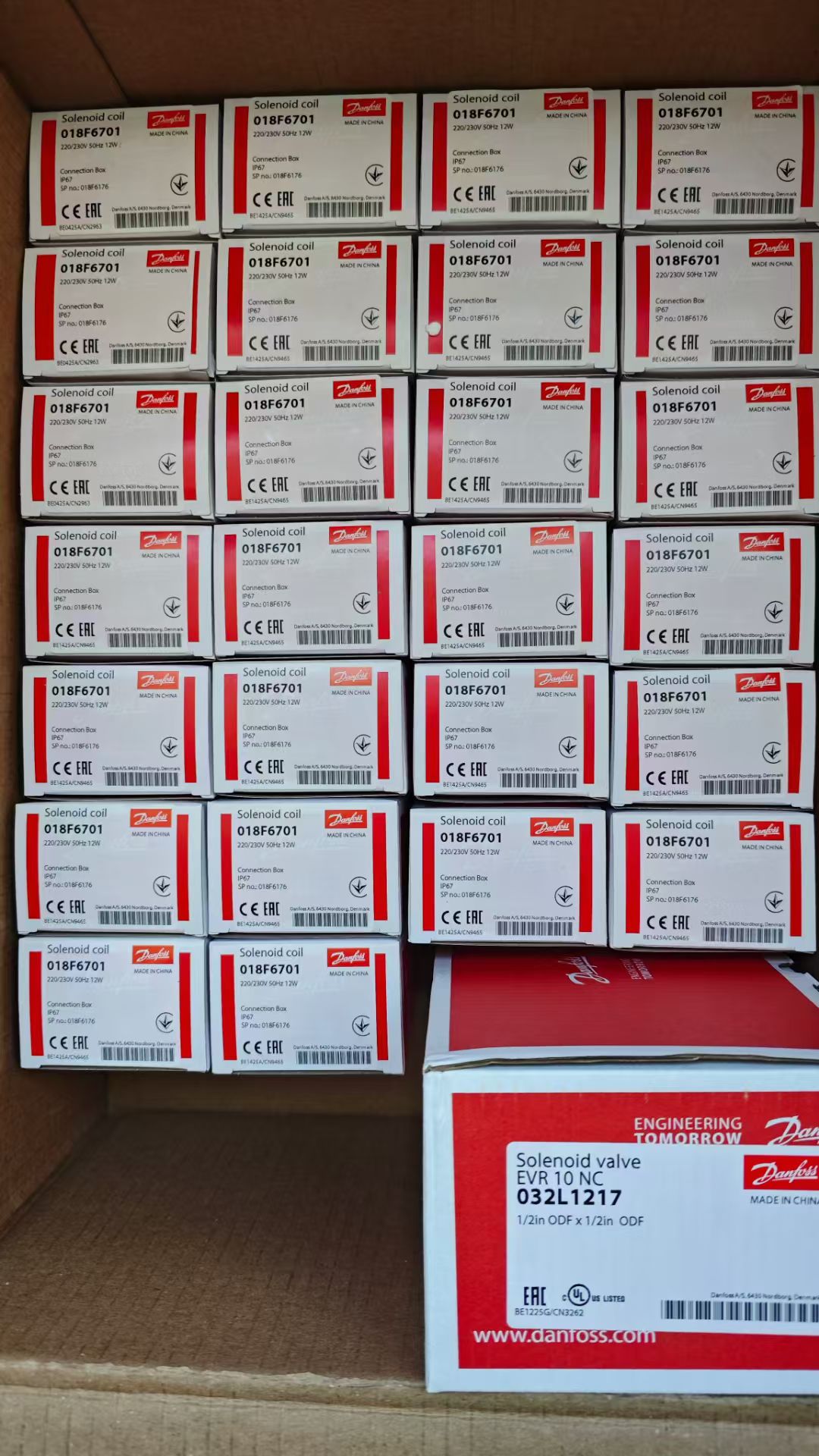

Name:	018F6701 Danfoss Solenoid coil, BE230AS, Terminal box
Brand:	Danfoss
Model No.:	BE230AS
Part No.:	018F6701
Country of origion:	China
G.W:	0.33kgs/pc
Product Name Description:	Solenoid coil
Enclosure rating IP:	IP67
Frequency [Hz]:	50 Hz
Supply voltage [V] AC:	220 - 230
Electrical connection:	Terminal box

018F6701 Danfoss Solenoid coil, BE230AS, Terminal box

Product details

Gross weight	0.33 Kilogram
Net weight	0.315 Kilogram

Volume	0.3 Liter
EAN	5702428519144

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	80 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	175 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE EAC LLC CDC TYSK UKCA
Cable diameter [mm] [max]	11 mm
Cable diameter [mm] [min]	6 mm
China RoHS compliance	Out of scope
Coil connection	Connection Box
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Conductor area [mm2]	0.75 - 1.5 mm2
Duty rating	Continuous
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Terminal box
Electrical connection size	Pg 13.5
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
Frequency [Hz]	50 Hz
Identical product	018F8701
In scope of WEEE	Yes

In scope of WEEE and contain batteries	No
Packing format	Multi pack
Parts Program name	EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B
Power cons Dual 50Hz [VA]	0 mW
Power cons Dual 50Hz [W]	11 W
Power consumption 50Hz [VA]	22 VA
Power consumption [W] 50Hz	12 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product Name Description	Solenoid coil
Quantity per packing format	32 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]	100 %
Rel. Humidity [% RH] [min]	0 %
SCIP dossier no.	23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name	Solenoid coils
Serviceable	No
Spare part number	018F6176
Supply voltage 50Hz Max [V]	230 V
Supply voltage 50Hz Min [V]	220 V
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	220 V
Type	BE230AS
Type designation	BE230AS
UK RoHS compliance	Out of scope
